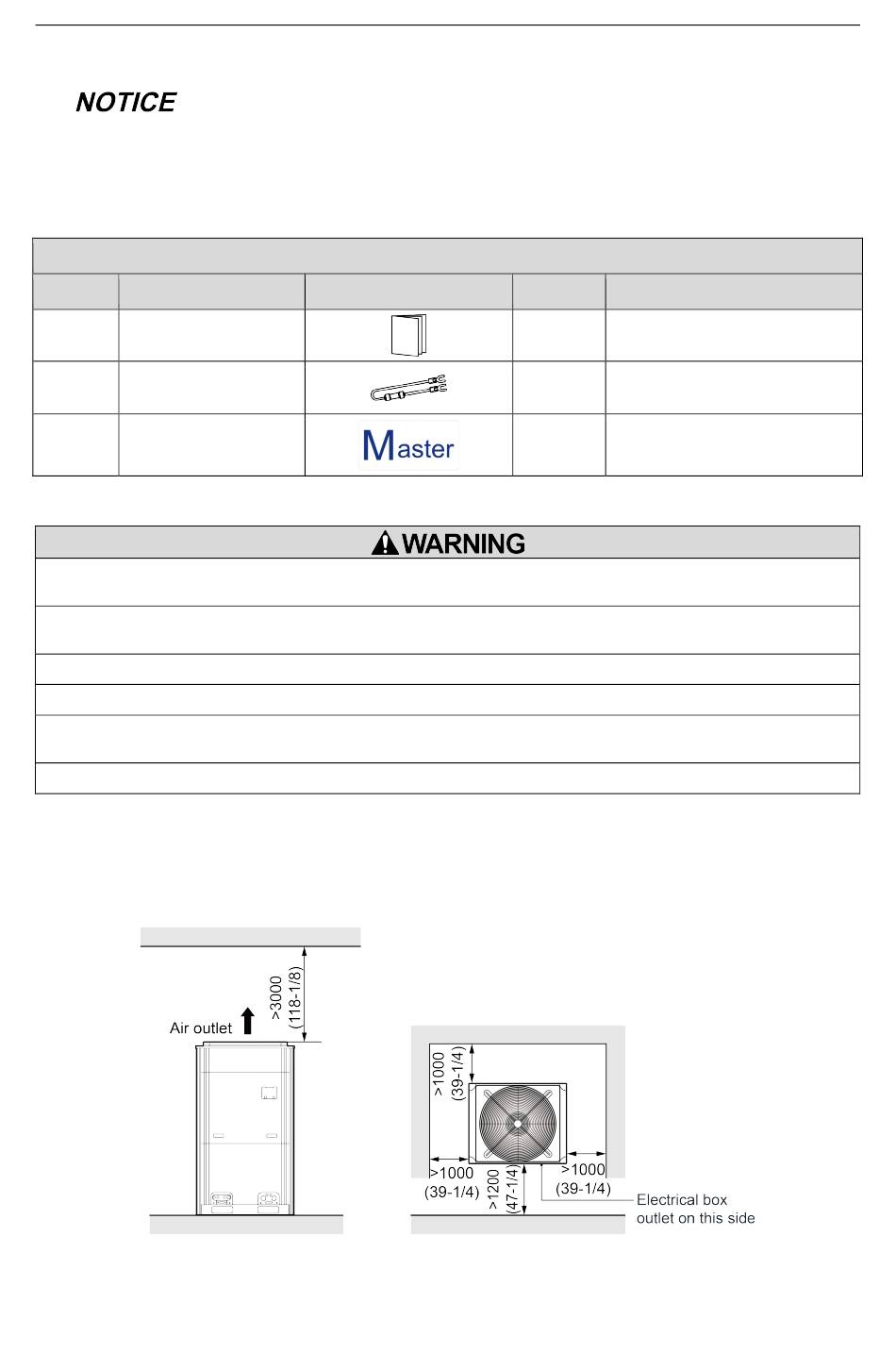

3 Preparation before Installation
The picture is only used for reference and the actual product prevails. Unspecified
measure unit is mm(inch).
3.1 Standard Parts
Please use the following standard parts supplied by Gree.
Number
Name
1
Owner's Manual
Wiring (match with
2
resistance)
3
Mark (Master )
3.2 Installation Site
(1) Install the unit at a place where is adequate to withstand the weight of the unit and make sure the unit would
not shake or fall off.
(2) Never expose the unit under direct sunshine and rainfall. Install the unit at a place where is against dust,
typhoon and earthquake.
(3) Try to keep the unit away from combustible, inflammable and corrosive gas or exhaust gas.
(4) Leave some space for heat exchanging and servicing so as to guarantee unit normal operation.
(5) Keep the indoor and outdoor units close to each other as much as possible so as to decrease the pipe length
and bends.
(6) Never allow children to approach to the unit and take measures to prevent children touching the unit.
3.2.1 When the outdoor unit is totally surrounded by walls, please refer to following
figures for space dimension.
3.2.1.1 Space dimension for single-module unit
Parts for Outdoor Unit
Quantity
Fig.3.2.1
4
Remarks
1
Must be connected to the last IDU
1
of communication connection
Attach on the wired controller of
2
master IDU or on the front panel
—
Unit: mm(inch)
