LevelOne VDS-0200 Technical Specification

Ethernet over VDSL2
Converter (AnnexA)
H/W Version: 1
Why convert Ethernet to VDSL?
The LevelOne VDS-0200 converts your data
from Ethernet to VDSL, making it easy to send
high-bandwidth data over long distances. This
new technology uses traditional twisted-pair
telephone wiring instead of expensive Cat.5
cables.
New technology = cost-effective
deployment
When using VDSL2 (Very High Speed Digital
Subscriber Line) technology, users can transmit
data up to 300 meters without having to
add expensive Ethernet switches or cables
to extend the network reach. And with
100Mbps downstream and 60Mbps upstream,
VDSL2technology provides ample space for all
high bandwidth usage.
Fast transfer speeds? Yes.
Easy Installation? Yes.
Key Features
- Supports a VDSL connection up to 2km over
single pair copper wire
- Provides100Mbps downstream and 60Mbps
upstream over 300m
- Features selectable Fast and Interleaved modes
- Selectable fixed data rate and fixed SNR
margin
- Features 4 Dip Switches for Configuration
Settings
- Low-Latency for Video/Voice/Data applications

1 2
VDS-0200 works especially well in applications
where traditional copper phone lines are
already installed: apartments, condominiums,
hotels, university campus, etc. There is no need
to run expensive Ethernet cables and installers
can easily integrate VDSL technology into the
existing network. The VDS-0200 is plug and play
ready and requires minimum installation time.
Customized settings
Each VDS-0200 also allows for customized
settings for advanced use. Using a built-in
DIP switch, users can customize the behavior
of the device to match the desired network
configuration.
Annex A
For networks that utilize PSTN telephone
systems.
3 4 5 6 6
Works Well With
VDS-0200

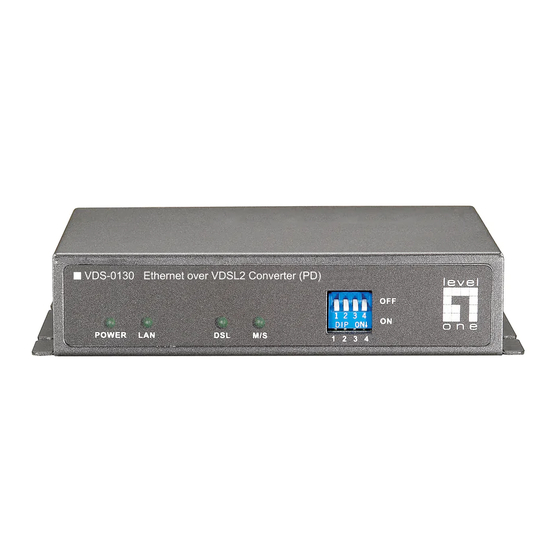

1. LEDs
2. Dip Switch
3. Power Port
4. Telephone Port
5. VDSL2 Interface
6. 10/100Mbps Ports
FSW-0811
8-Port Fast Ethernet Switch
WBR-6001
N_Max Wireless Broadband
Router
