- Page 1 CHARGE AMPS Aura /Aura LTE Installation Manual...
- Page 2 RF technology: GSM, GPRS, EDGE, UMTS/HSPA+, LTE Max RF output: 32 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE SIM card: Standard SIM Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130052, rev 01 169 75 Solna, Sweden www.chargeamps.com...
-
Page 3: Table Of Contents
Standards ............................17 Safety information ..........................17 Maintenance of Aura ..........................17 Product recycling ..........................17 Rights ..............................18 Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130052, rev 01 169 75 Solna, Sweden www.chargeamps.com... -
Page 4: For The Professional Installer
For the professional installer This installation manual is intended for qualified Aura installers and describes how to install the product safely and properly. Installation may only be carried out by a qualified installer who follows: Basic safety precautions for safe and correct installation. -
Page 5: About Aura

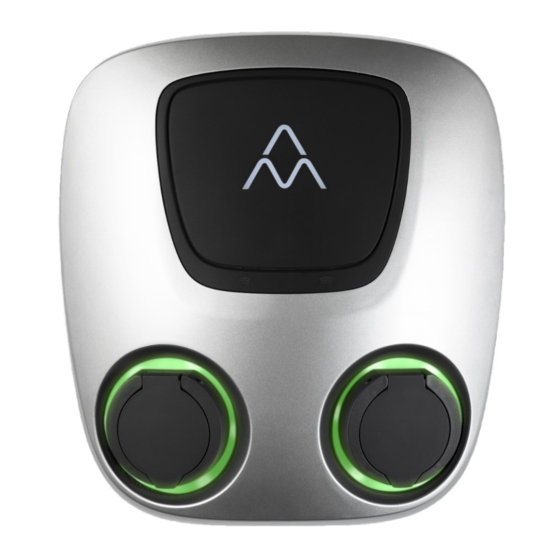

(Charge Amps cloud service). Aura is ISO 15118 ready, which opens up a number of possibilities when the electric cars of tomorrow start to support vehicle-to-grid technology. In the future, cars will not only be a means of transport, but also energy storage systems. -
Page 6: Contents Of The Package
Sealant (if necessary) if the wall for mounting is uneven and exposed to an outdoor climate. • Computer or mobile phone if Aura needs to be configured and (where applicable) connected • to a cloud service. Contact the supplier for more information. -
Page 7: Mounting
If possible, do not mount Aura in direct sunlight. The charging current is decreased if the temperature inside the charging station goes up, and can even be switched off completely if Aura gets too hot. This is a safety feature to ensure a long service life. See the Aura technical specifications for operating temperatures. -
Page 8: How To Use Aura
How to use Aura Aura is designed to enable you to easily charge your vehicle, whether you have an electric car or a hybrid. When you park within the correct cable length between your vehicle and Aura, charging can be initiated after you have connected the cable to one of the charging sockets (see item 4 in the model overview). -
Page 9: Installing Aura
Read the installation instructions in this document thoroughly. Make sure that the feed cable is isolated and switch off the power at the main switch. Unpack Aura from the box. Check that the product is in good condition and that all cables are properly seated. - Page 10 Mount Aura on the wall: Use the key supplied to unlock the cylinder lock underneath Aura. Rotate up and suspend the front. Align Aura on the wall according to the specified hole pattern. Make sure that the mounting has fixed Aura in place.
- Page 11 Note that if the power is to be routed onwards, connect the cable to be routed onwards to the other input on the terminals. 8. If you are installing Aura in an IT network, connect phase cables L1 and L3, and use 1–3 terminal blocks, which are included in the kit, as illustrated below.
-
Page 12: Configuring Electrical Parameters For Aura
Aura will play a sound. It is now possible to charge your vehicle. Configuring electrical parameters for Aura After Aura has been installed electrically and on the network, it is time for it to be configured. The aim of configuration is to connect the unit to Charge Amps’ portal and cloud solution. - Page 13 6. Fill in the serial number and PIN code as indicated in the configuration document. 7. Click “GO” and then you are finished. How to configure Aura with a wireless internet network (WiFi): 1. Switch on your Aura 2. Use a smartphone, open “Wireless settings” and scan for a wireless network.
- Page 14 4. When you are asked for the network key, enter the PIN code. Enter the password, which you will find on the configuration sheet supplied in the box, and connect. Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130052, rev 01 169 75 Solna, Sweden www.chargeamps.com...
- Page 15 Click the WiFi network that Aura should connect to from the list and enter its password. Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130052, rev 01 169 75 Solna, Sweden www.chargeamps.com...
- Page 16 8. Enter the details of your wireless network and click update. Connected to means that Aura is now connected. Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130052, rev 01 169 75 Solna, Sweden www.chargeamps.com...
-
Page 17: Product Data
Rating: IP 55 and IK 10 • • Operating temperature: -25°C to +40°C • Lock: Cylinder lock with two accompanying keys. Charging information Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130052, rev 01 169 75 Solna, Sweden www.chargeamps.com... -
Page 18: Standards
3. Check the power cable into Aura. 4. Check cable fittings. Product recycling Recycling Aura is a matter of course. Aura consists of aluminium, plastic and electronics, and should be recycled as specified for these materials. Charge Amps Aura Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B... -
Page 19: Rights
Rights The information in this document has been checked for accuracy. Charge Amps AB reserves the right to make technical changes and changes to the contents of the document without prior notice. Charge Amps AB can therefore not guarantee that all of the contents of this particular document are accurate, up-to-date, and free from printing and proofreading errors.
