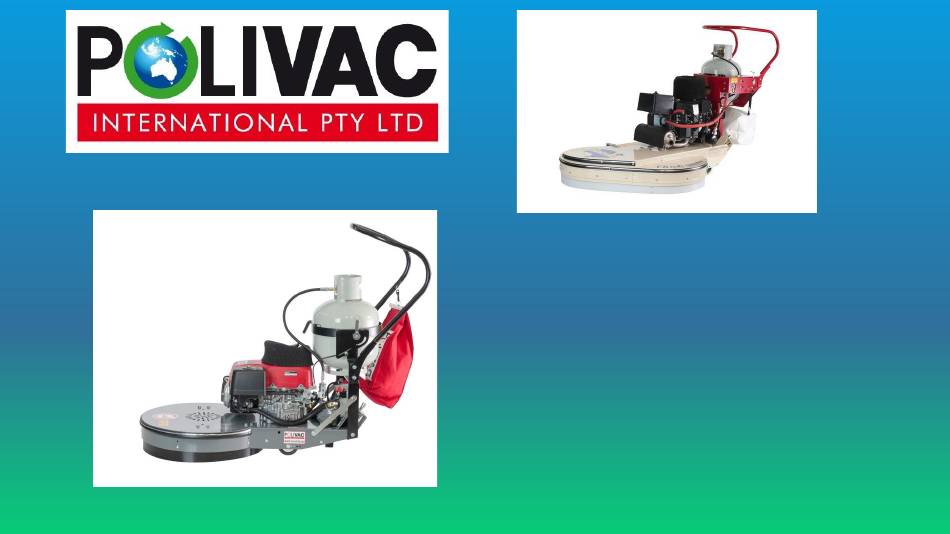

- Page 1 GAZ20 / GAZ24/GAZDA32/ GAZDA42 INSTRUCTION MANUAL...
- Page 2 MODELS e.
-
Page 3: Unpacking The Machine
UNPACKING THE MACHINE appropriate. 1. Remove from pallet 2. Undo handle bolts and return to operating position. 3. Reconnect bolts when handle is in position 4. Connect the Battery... - Page 4 SAFETY Important notice For safety reasons it is important you read this safety awareness manual prior to operating your LPG power product. L.P.G Safety Awareness Manual This Safety/Training Manual has been developed to encourage safe working habits of those Using engine powered equipment fuelled by Liquefied Propane Gas (LPG). Please be reminded, this manual is not designed to instruct you on how to maintain floors, But is designed to instruct you on how to avoid incidents that could be brought on by unsafe Actions, poor maintenance and the lack of accurate knowledge.
-
Page 5: Ready To Use
READY TO USE Place the gas bottle into the holder on the machine with the outlet facing forward. Tighten the handle to hold the bottle in place. Connect the machine hose to the gas bottle. To release the gas turn the knob on the gas bottle. ... - Page 6 READY TO USE Open the gas valve Turn the switch to ON position In certain enviroments,you may need to prime the gas regulator, this is done by pressing the primer button on the outside of the regulator. ...
-
Page 7: How To Use
• Prepare your safety equipment. • Plan the work Path. Clear obstacles from in you path . • The gaz20/gaz24 burnishers work in a straight line , just walk slowly forward then complete a u-turn walk back overlapping the previous pass sufficiently , to give a uniform finish. -
Page 8: Battery Maintenance
BATTERY MAINTENANCE If you plan to leave the machine unused for a considerable period of time, disconnect the earth terminal on the battery to prevent battery discharge. -
Page 9: Warranty
In the case of proprietary components used by the manufacturer in his product, such as engines, electrical motors, chargers and the like Polivac will pass on any warranty given by the manufacture of these items. - Page 10 GAZDA 42G GAS BUFFER Belt Tensioner Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 11 GAZDA 42G GAS BUFFER Belt Tensioner Assembly Part List - Page 1 of 2 Item Description Part No. Number Tensioner Cross Member GZ001/5089 Shadow BRKT Welded GZ001/5084 Shadow Angle Welded GZ001/5080 Pulley BRKT Torque GZ001/5083 Pulley BRKT Plain Welded GZ001/5086 Cradle Tensioner GZ001/5108 Tensioner Front...
- Page 12 GAZDA 42G GAS BUFFER Belt Tensioner Assembly Part List - Page 2 of 2 Item Description Part No. Number M16 Spring Washer GZ006/0633 M16x36x3 Flat Washer GZ006/3287 M16 Nut ZP GZ006/3281 M10x25 Coach Bolt GZ006/2564 M10x35x6 HD Washer GZ001/5113 M10 Nyloc GZ006/2712 Drawings by: LeanSynergicDesign.com.au...
- Page 13 GAZDA 42G GAS BUFFER Brush Pulley Assembly...
- Page 14 GAZDA 42G GAS BUFFER Brush Pulley Assembly Part List Item Description Part No. Number Pulley Brush 22, 32, 42 GZ010/3064 Aluminium Clutch GZ010/3073 Bearing 6204 DDU VPV230 Circlip Internal 47mm Gas031A Pad Holder Retainer GZ010/3071 Hand Tee Knob GZ010/3074 Plastic Spicked Padlock GZ010/3083 Pad 52 CM P50Jackaro...
- Page 15 GAZDA 42G GAS BUFFER Engine Subassembly Parts DETAIL B DETAIL A Drawings by: LeanSynergicDesign.com.au...
- Page 16 GAZDA 42G GAS BUFFER Engine Subassembly Parts DETAIL C Drawings by: LeanSynergicDesign.com.au...
- Page 17 GAZDA 42G GAS BUFFER Engine Subassembly Part List Item Description Part No. Number Engine KOH23HPA Top Cowl Base Strip GZ001/5101 Screen Metal Basket GSS031BS Rivet AS 6-4 AAK 829 Engine Dust Filter GSS028BS 3/8" M BSPT x 1/2" Hose Tail GSS006/3566 1/2"...
- Page 18 GAZDA 42G GAS BUFFER Fan Plastic Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 19 GAZDA 42G GAS BUFFER Fan Plastic Assembly Part List Item Description Part Number Number Motor Pulley 1 1/8" Bore GZ010/5122 Fan Plastic GZ010/0856 Fan Washer Support 32, 42 GZ010/3047 M8x16 Set screw ZP GZ006/2221 M8 Spring Washer GZ006/2372 Rivet AS 6-4 AAK 829 42G Key Crankshaft GAS089...
- Page 20 GAZDA 42G GAS BUFFER Gas Bottle Holder Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 21 GAZDA 42G GAS BUFFER Gas Bottle Holder Assembly 39 14 Gas Supply Detail Drawings by: LeanSynergicDesign.com.au...
- Page 22 GAZDA 42G GAS BUFFER Dust Bag Drawings by: LeanSynergicDesign.com.au...
- Page 23 GAZDA 42G GAS BUFFER Main Body Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 24 GAZDA 42G GAS BUFFER Main Body Assembly 15 14 DETAIL A Drawings by: LeanSynergicDesign.com.au...
- Page 25 GAZDA 42G GAS BUFFER Vacuum Cover Box Drawings by: LeanSynergicDesign.com.au...
- Page 26 GAZDA 42G GAS BUFFER Main Body & Gas Bottle Holder Part List - Page 1 of 3 Item Description Part No. Number Main Body GZ001/0001 Gas Bottle Holder GZ001/5027 Vacuum Cover Box GZ001/5020 Vac Fan Cover GZ001/5017 Handle Red 22G/32G/42G GZ010/0822 CV20 Oil Seal Cover GZ001/5120...
- Page 27 GAZDA 42G GAS BUFFER Main Body & Gas Bottle Holder Part List - Page 2 of 3 Item Description Part No. Number M10 Nyloc GZ006/2712 M6x20 Coach Bolt GZ006/1928 M5x20 Pan Head GZ006/1618 M5 Nyloc GZ006/1704 M8x20 Flat Washer.par GZ006/2367 M8x40 Set screw 8.8 GZ006/2226 M8 Spring Washer...
- Page 28 GAZDA 42G GAS BUFFER Main Body & Gas Bottle Holder Part List - Page 3 of 3 Item Description Part No. Number Electrical lug and wire Wheel Gazda GZ0100596 Dust Bag D'Master 22 32 42 N GZ001/3021 Engine Pulley Retainer Washer GZ010/5128 7/16 x 1 1/2"...
-
Page 29: Warranty Policy
Use of non-approved chemicals and detergents in the product will void the warranty. 10. Products that have been modified are not covered by warranty. 11. Products that have not been serviced at their recommended intervals by an authorised Polivac Service Centre or Agent are not covered by warranty 12.
