GAZ20 / GAZ24
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the GAZ24 and is the answer not in the manual?

Questions and answers

Related Manuals for Polivac GAZ24

Summary of Contents for Polivac GAZ24

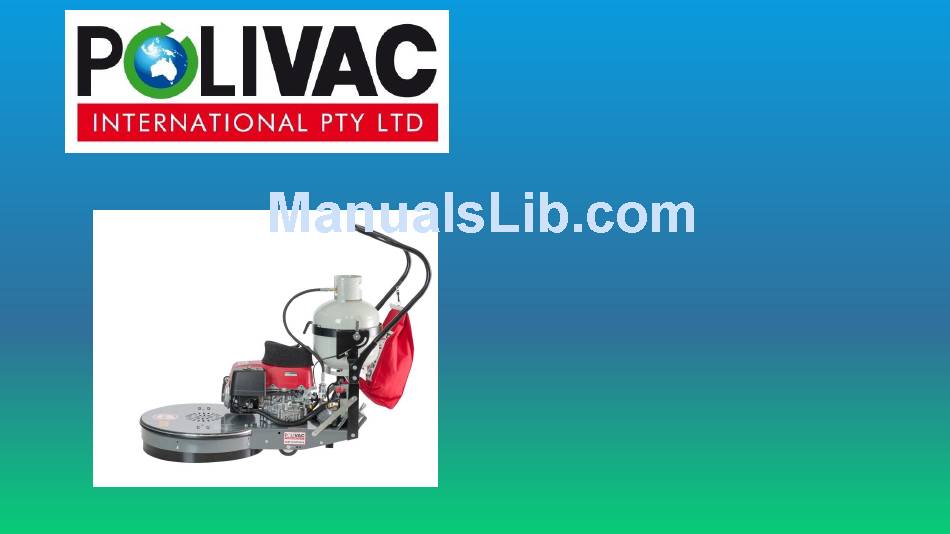

  • Page 1 GAZ20 / GAZ24 INSTRUCTION MANUAL...
  • Page 2 MODELS  e.

  • Page 3: Unpacking The Machine

    UNPACKING THE MACHINE  appropriate. 1. Remove from pallet 2. Undo handle bolts and return to operating position. 3. Reconnect bolts when handle is in position 4. Re-attach dust bag to handle.
  • Page 4 SAFETY Important notice For safety reasons it is important you read this safety awareness manual prior to operating your LPG power product. L.P.G Safety Awareness Manual This Safety/Training Manual has been developed to encourage safe working habits of those Using engine powered equipment fuelled by Liquefied Propane Gas (LPG). Please be reminded, this manual is not designed to instruct you on how to maintain floors, But is designed to instruct you on how to avoid incidents that could be brought on by unsafe Actions, poor maintenance and the lack of accurate knowledge.

  • Page 5: Ready To Use

    READY TO USE  Place the gas bottle into the holder on the machine with the outlet facing forward.  Tighten the handle to hold the bottle in place.  Connect the machine hose to the gas bottle.  To release the gas turn the knob on the gas bottle. ...
  • Page 6 READY TO USE  In certain enviroments,you may need to prime the gas regulator, this is done by pressing the primer button on the outside of the regulator.  To start press the start button located the battery with you foot, hold until engine start running, then release.

  • Page 7: How To Use

    • Prepare your safety equipment. • Plan the work Path. Clear obstacles from in you path . • The gaz20/gaz24 burnishers work in a straight line , just walk slowly forward then complete a u-turn walk back overlapping the previous pass sufficiently , to give a uniform finish.

  • Page 8: Battery Maintenance

    BATTERY MAINTENANCE If you plan to leave the machine unused for a considerable period of time, disconnect the earth terminal on the battery to prevent battery discharge.

  • Page 9: Warranty

     In the case of proprietary components used by the manufacturer in his product, such as engines, electrical motors, chargers and the like Polivac will pass on any warranty given by the manufacture of these items.
  • Page 10 24G GAS Burnisher Main Body Assembly Drawings by: LeanSynergicDesign.com.au...
  • Page 11 24G GAS Burnisher Main Body Assembly Vacuum Box Drawings by: LeanSynergicDesign.com.au...
  • Page 12 24G GAS Burnisher Gas Bottle Holder 27 26 35 49 49 35 Drawings by: LeanSynergicDesign.com.au...
  • Page 13 24G GAS Burnisher Dust Bag Gas Regulator Assembly Drawings by: LeanSynergicDesign.com.au...
  • Page 14 24G GAS Burnisher Main Body & Gas Bottle Holder - Part List -Page 1 of 3 Item Description Part No. Number Main Body GS5007 Gas Bottle Bracket Assembly GS5011 Handle GS5012 24G Plastic Skirt GS5006 Pad Trimmer GS5020 Battery Bracket Strip GS5021 Fan cover GS5008...
  • Page 15 24G GAS Burnisher Main Body & Gas Bottle Holder - Part List -Page 2 of 3 Item Description Part No. Number Engine Sub-Assembly Refer to 24G Engine Sub-Assembly Parts drawings 20GB Honda Valve Protector GS6017 Belt Tensioner Refer to 24G Belt Tensioner drawings Blue Wheel GS5004...
  • Page 16 24G GAS Burnisher Main Body & Gas Bottle Holder - Part List -Page 3 of 3 Item Description Part No. Number M10x30 Set Screw GZ006/2646 M8x20 Coach Bolt GZ006/2224 M8 Nyloc PPR094 M6x20 Bolt Pan Head GZ006/2001 J3 Swivel Castor GS5014 LPG Gas Hose 3/8"...
  • Page 17 24G GAS Burnisher Belt Tensioner Drawings by: LeanSynergicDesign.com.au...
  • Page 18 24G GAS Burnisher Belt Tensioner Item Description Part No. Number Belt Tensioner Large GGS016 M10x30 Hex Bolt GZ006/2646 Bearing 6203 2 RS VPA570 M12x25 Flat Washer GZ006/2992 M10 Spring Washer GZ006/2721 M12x75 Hex Bolt BAT268 Bearing Sleeve GSS032 M10x25 Flat Washer VIB507 M6x20 Set Screw GZ006/1903...
  • Page 19 24G GAS Burnisher Brush Pulley Assembly Drawings by: LeanSynergicDesign.com.au...
  • Page 20 24G GAS Burnisher Brush Pulley Assembly Part List Item Description Part No. Number Pulley Brush 22, 32, 42 GZ010/3064 Aluminium Clutch GZ010/3073 Bearing 6204 DDU VPV230 Circlip Internal 47mm Gas031A Pad Holder Retainer GZ010/3071 Hand Tee Knob GZ010/3074 Plastic Spicked Padlock GZ010/3083 Pad 52 CM P50Jackaro...
  • Page 21 24G GAS Burnisher Engine Sub-Assembly Parts 12 19...
  • Page 22 24G GAS Burnisher Engine Sub-Assembly Parts Item Description Part No. Number Cowl Angle Bracket GGS031BS Screen Metal Basket GSS031BS Engine Dust Filter GSS028BS M5x20 Pan Head GZ006/1618 Rivet AS 6-4 AAK 829 Drain Plug 20mm x 1.5 GSS066 Valve Drain GSS068 Oil Drain Hose PPR039A...
  • Page 23 24G GAS Burnisher Fan Plastic Assembly Drawings by: LeanSynergicDesign.com.au...
  • Page 24 24G GAS Burnisher Fan Plastic Assembly Item Description Part No. Number Fan Suport Washer GZ010/3047 Fan Plastic GZ010/0856 Engine Pulley and Fan Boss Unit GS5002 M8x16 Set screw ZP GZ006/2221 M8 Spring Washer GZ006/2372 Rivet AS 6-4 AAK 829 1/4 x 2 1/4 Key Steel GAS089 Drawings by: LeanSynergicDesign.com.au...
  • Page 25 24G GAS Burnisher Pulley Bracket Assembly Drawings by: LeanSynergicDesign.com.au...
  • Page 26 24G GAS Burnisher Pulley Bracket Assembly Item Description Part No. Number Brush Pulley Bracket GS5025 Angle High GS5017 Bearing 6200 2RS SLB016 M10x40 Hex Bolt GZ006/2536 M10 Nut GZ006/2711 Polyurethane Buffer GZ001/5115 Rivet AS 6-4 AAK 829 M10x32 Flat Washer BAT270 Angle Low GS5018...

This manual is also suitable for:

Gaz20
