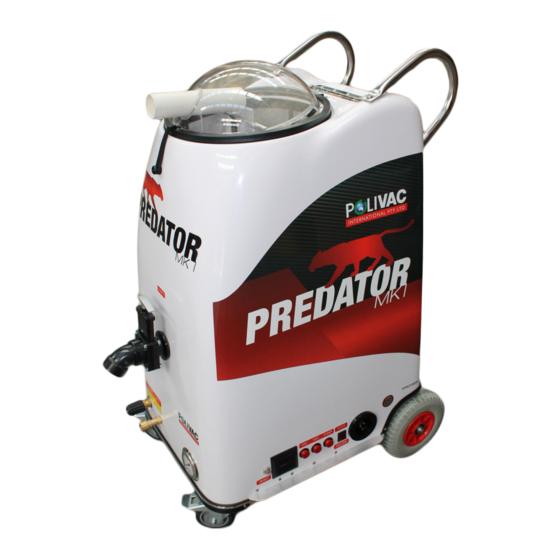

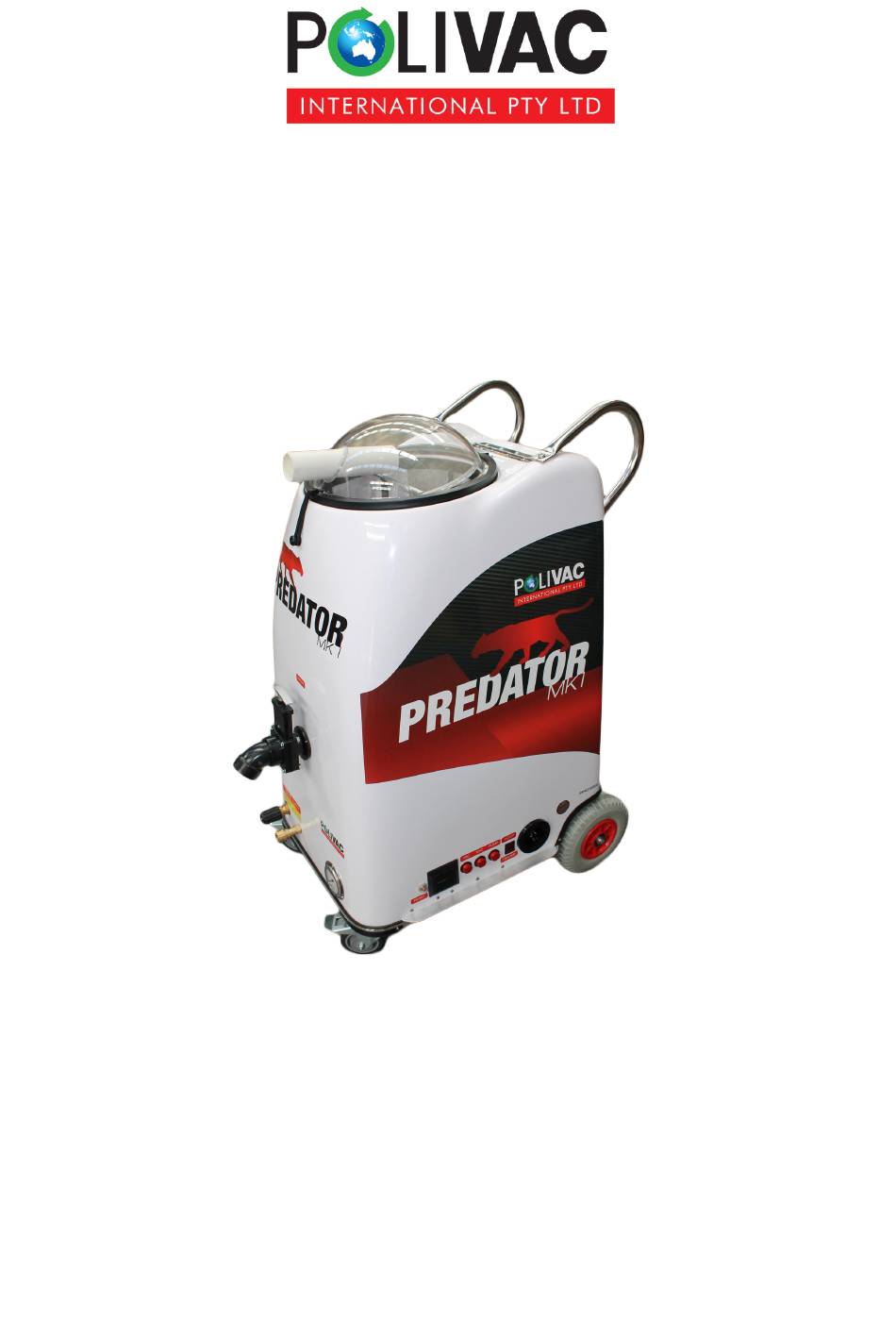

- Page 1 Polivac Predator MK I Carpet Extractor Machine Operations Manual & Trouble Shooting Guide...
- Page 2 remove from skid now you are connect the ready to power clean turn pump connect switches and solution and vacuum vaccuum switches on hoses on at a time. fill the connect the solution tank wand...
- Page 3 FIGURE 1 Solution Hose Vacuum Hose Connect the supplied hoses to the above pictured connection. To connect the solution hose push the sleeve back on the brass socket insert the male plug then release. To connect the vacuum hose just insert the black hose cuff into plastic pipe.
- Page 4 FIGURE 2 Pressure Hose Vacuum hose Connect the female solution hose fitting to the male wand connector and slide the cuff over the end of the wand. You may need to replace trigger kits See below.
- Page 5 This is an introduction on the use of the Polivac Predator Carpet Extraction unit. Directions for Use ( please refer to picture as well in next page) Connect 240v extension cable from power source to #1 power socket on unit. Connect other 240V extension cable #7 power socket( only available in MK3, MK3 Auto &...
- Page 6 Polivac predator side control panel 1) 240 volt 10AMP power inlet socket( MK1 & MK2 only have this power inlet) 2) Pump or heater selector switch 3) Water pump power switch 4) Vac motor #1 power switch 5) Vac motor #2 power switch 6) Machine operating hour timer 7) 240 volt 10AMP power inlet socket ( MK2 Auto , MK3 &...
- Page 7 Polivac Predator pressure control 1)Pressure increase/decrease regulator top 2) Solution outlet( for connection to high pressure hose) 3) Pressure gauge 4) Dirt water outlet ( only available in MK2 Auto & MK3 Auto) 5) Dump valve...
- Page 8 Polivac Predator Dump Valve To release captured waste water lift handle as shown in diagram. Water will drain & then depress the handle down to reseal.
- Page 9 Polivac Predator Booster inlet. Figure 1 shows booster inlet in the closed position Figure 2 shows inlet opened to connect the vac hose and booster box. Inlet opens by hand only and will close itself after use.
- Page 10 A standard wand only requires 350 to 400 psi any more may result in unnecessary damage or wear to the wand and trigger system. It is recommended that the upholstery tool or stair tool pressure is 150psi. To measure the pressure engauge the trigger on your device then adjust accordingly using the pressure control knob.
- Page 11 Ensure waste dump valve is complete shut Polivac Warranty 1. When a warranty repair is justified, Polivac welcomes such repair by any of its authorized Service Centres. In most instances, the request for warranty brought to the attention of our service Divisions or Agents are handled in a prompt routine manner with no question of their validity.
- Page 12 The warranty covers only the replacement, repair or adjustment of any part which in the opinion of Polivac fails as a result of a fault in manufacture assembly. Note 2 year warranty applies to drive motors and gearbox assemblies on electrical machines.
