Summary of Contents for Polivac Stealth Series

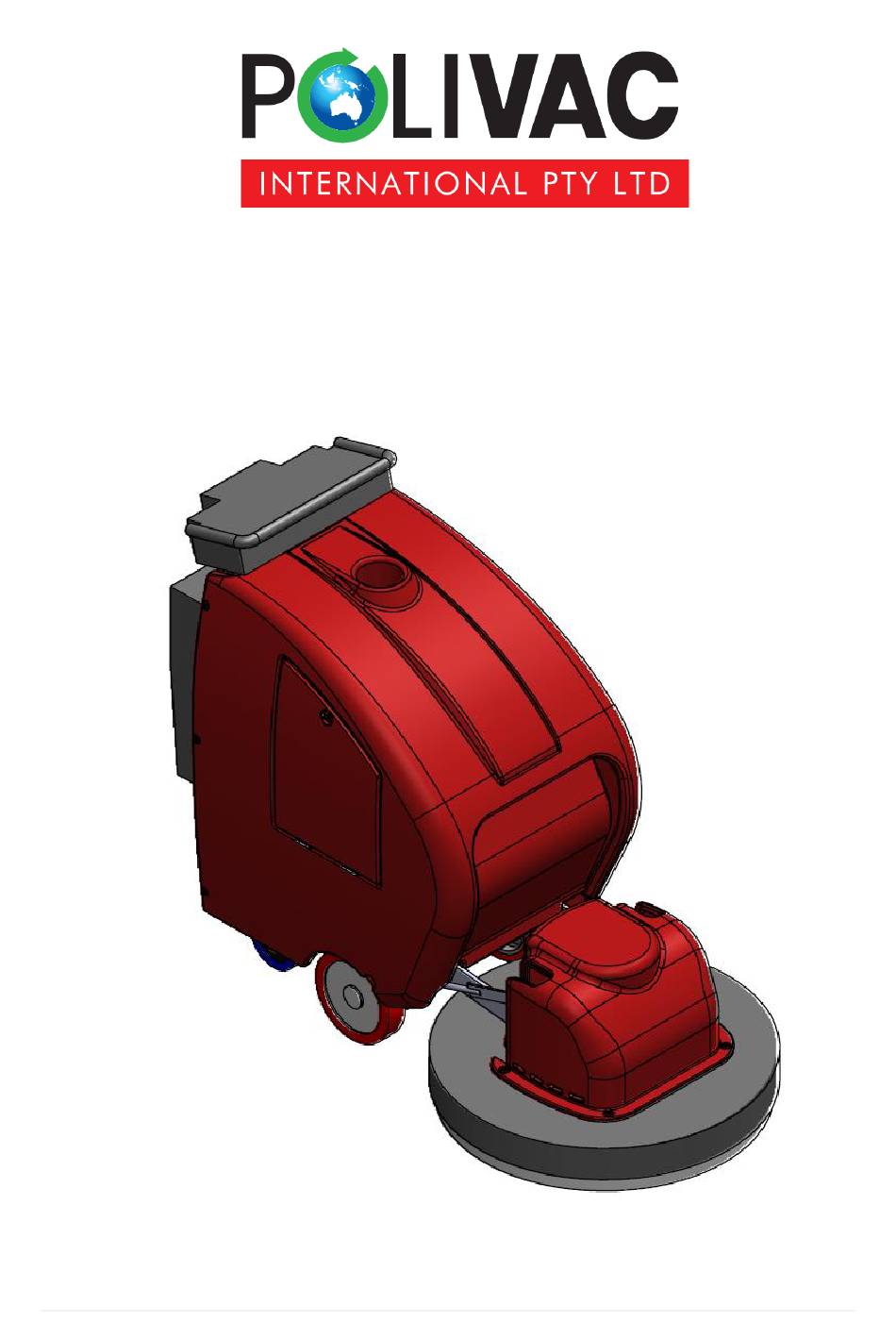

- Page 1 Stealth Battery Burnisher Polivac International - Stealth-C Battery Burnisher P a g e...
-
Page 2: Table Of Contents
Instruction for Use………………………………………………..………………………………………………………..3 Notice…………………………………………………………………..………………………………………………………..4 Important Information…..…………………………………………………………………………………..………5 Machine Specification….…………………………………………………………………………………..……….…..6 Operator Responsibility…………………………………………………………………………………………………..7 Unpacking and Preparation Of the Machine…………………………………………………………………..7 Machine Features………………………………………………………………………………………………..…...8-11 Console Features…………………………………………………………………………………………………..…11-14 Machine Operation………………………………………………………………………………………………...14-15 Servicing Machine………………………………………………………………………………………………..15-16 Maintenance Summary…………………………………………………………………………………….....17 Machine Troubleshooting…………………………………………………………………………………..………..18 Electrical System………………………………………………………………………………………………………..19 Polivac International - Stealth-C Battery Burnisher P a g e... -
Page 3: Introduction
This Manual is intended for operators and technicians qualified to perform machine maintenance. The operators must not carry out operations reserved for qualified technicians. Polivac International will not be responsible for damages coming from the non- observance of this prohibition. -
Page 4: Notice
Apart from the scheduled maintenance procedures listed it is recommended to have your machine serviced by certified service technician every 300 hours. Polivac International - Stealth-C Battery Burnisher P a g e... -
Page 5: Important Information
Important Information (please fill in) Date of purchase Purchased from Address City State P Code Phone Contact Machine Model Machine Serial Number Emergency Phone Numbers Medical Emergency Police Fire Department Other Polivac International - Stealth-C Battery Burnisher P a g e... -
Page 6: Machine Specification
• Vacuum bearing 6200 2R P/N ……………………..SLB016 • Fuse AMG150A 32V P/N ……………………………BAT299 • Fuse short blade 15A automotive P/N ………..BAT324 • Battery sealed AGM 6 X 6V P/N ………….……..BAT029 Polivac International - Stealth-C Battery Burnisher P a g e... -
Page 7: Operator Responsibility
FOR SAFETY: Do not operate machine before reading and understanding the operation manual. Keep your machine regularly maintained by following the maintenance information in this manual. We recommend taking advantage of a service contract from Polivac International Authorized Distributor or Service centre. -
Page 8: Machine Features
Once the charge cycle is complete, the charger remains active in a trickle charge mode to maintain the charge on the batteries until the charger is unplugged from the power. Any further specific information (Please refer to separate Battery Charger Manual provided) Polivac International - Stealth-C Battery Burnisher P a g e... - Page 9 • Dust bag is located on the right hand side of the machine and is accessible through top cover metal door. Late model plastic cover • Dust bag is accessible on the right hand side of the machine through the side plastic door. Polivac International - Stealth-C Battery Burnisher P a g e...
- Page 10 The aluminium block that the controller is mounted on, works as heat sink. The controller has many different programmable features that can be chosen. The programming is set to factory specification; Polivac International may customise it to special request.
-
Page 11: Console Features
Quick switching between forward and reverse modes regardless of machine direction movement, will not harm the machine. Polivac International - Stealth-C Battery Burnisher 11 | P a g e... - Page 12 Centre-position momentary rocker switch, marked +/- activates UP or DOWN pad drive pressure. The switch has three functions: 1. Increase pad pressure. (lower head) 2. Decrease pad pressure. (raise head) Polivac International - Stealth-C Battery Burnisher 12 | P a g e...
- Page 13 2. It monitors battery charge highest number 9 indicates buttery fully charged, the numbers drops progressively down as the battery is discharged. Machine will shut down when it gets between numbers 3-2. Polivac International - Stealth-C Battery Burnisher 13 | P a g e...
-
Page 14: Machine Operation
6. Check the condition of the pad drive for the breaks and cracks. 7. Check vacuum dust bag, empty if required. Warning! Do not use machine if pad drive is damaged or has cracks. Polivac International - Stealth-C Battery Burnisher 14 | P a g e... -
Page 15: Servicing Machine
8. Check the condition of extension lead for battery charger. Three Hundred Hours Service 1. Check the condition of all above. 2. Check the condition of the pad drive. Polivac International - Stealth-C Battery Burnisher 15 | P a g e... - Page 16 1. Inspect all above. Inspect carbon brushes and condition of commutator on pad drive and transaxle motor. The service and inspection must be carried out by competent certified technician. Polivac International - Stealth-C Battery Burnisher 16 | P a g e...
-
Page 17: Maintenance Summary
• Check batteries • • Check the extension lead • • Pad drive motor carbon brushes • • Transaxle drive motor carbon • brushes • Check the extension lead • Polivac International - Stealth-C Battery Burnisher 17 | P a g e... -
Page 18: Machine Troubleshooting
Ensure that brake is engaged before leaving machine unattended. Polivac International - Stealth-C Battery Burnisher 18 | P a g e... -
Page 19: Electrical System
Disconnecting positive cable will not guaranty total power disconnection. Caution! During reconnection of power or batteries, a brief sparks will occur due to capacitors charging in controllers filter. This is all in order. Polivac International - Stealth-C Battery Burnisher 19 | P a g e...
