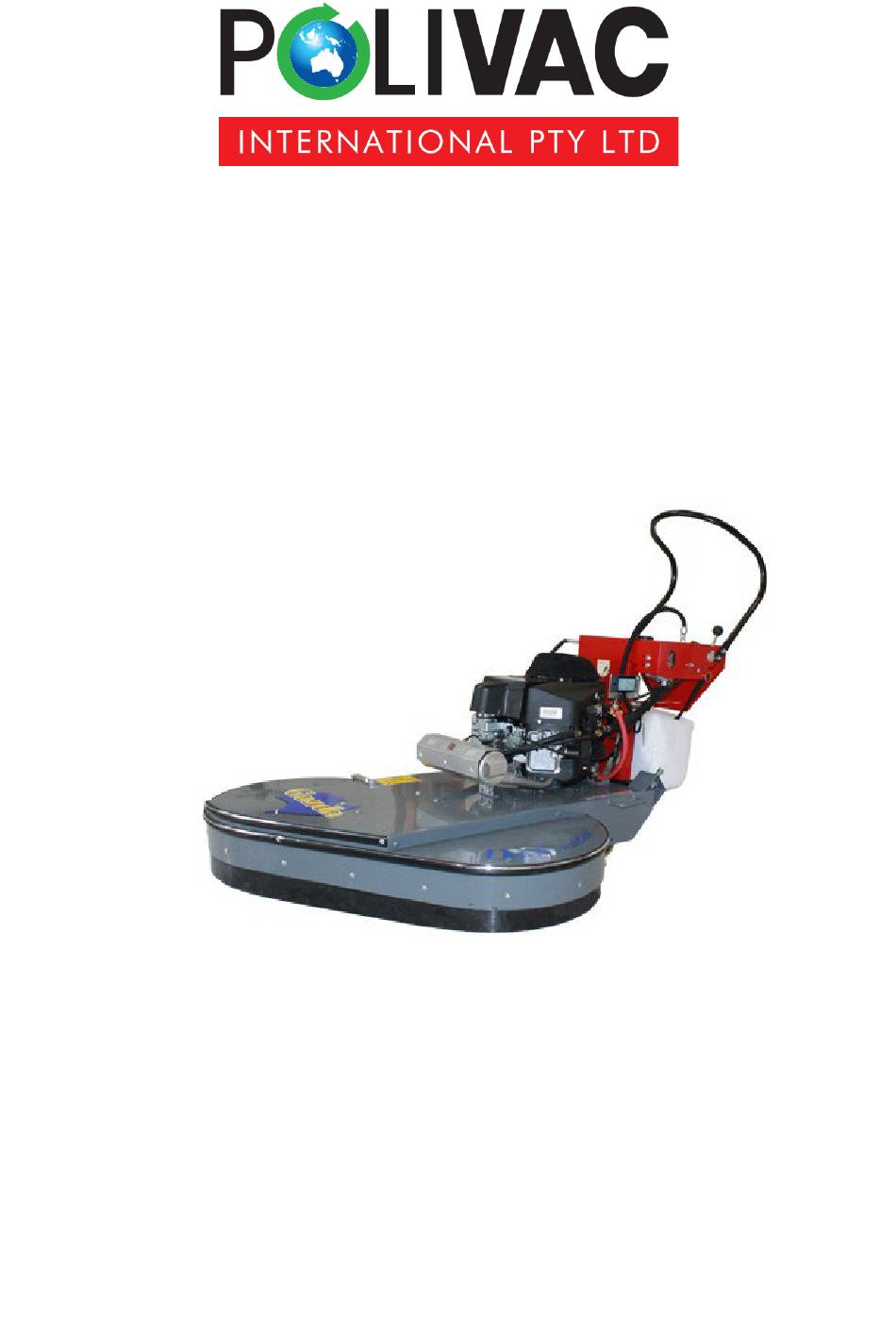

- Page 1 Polivac ” Gas Buffer GAZDA42 Operations Manual & Trouble Shooting Guide...
-
Page 2: Table Of Contents
OWNER’S MANUAL TABLE OF CONTENTS Introduction ................3 Use & Care ................. 3 Safety Precautions ..............3 Unpacking Instructions ............. 5 Machine Preparation ..............4 Starting the Engine ..............4 Operation of machine ..................5 Stopping the Engine ..............5 Maintenance ................ -
Page 3: Introduction
• oil level and condition daily before each use. 3. YOUR GAZDA42/32 MACHINE MUST NEVER BE TILTED ON TO THE LEFT HAD SIDE (VIEWING FROM BEHIND THE UNIT). – Follow sticker on the frame This will cause oil to seep into the carburettor and head of the engine, which will cause •... -
Page 4: Unpacking Instructions
UNPACKING INSTRUCTIONS Polivac gas buffers comes packaged in a palletised box designed to protect and secure the machine during transportation. The machine is supplied with no gas cylinder. Before signing the delivery receipt, inspect the packaging for damage (Remove box and check machine for damage). If damage is evident, note the damage on the delivery receipt and contact your supplier. -
Page 5: Maintenance
MAINTENANCE 1. Prior to Use: • Check the oil level and condition. • Clean and/or replace engine and carburettor filters. • Check brush/pad condition. • Clear engine cooling vanes. • Check all gas lines and fittings for damage, cuts or leaks. •... - Page 6 IMPORTANT NOTICE Polivac would like to direct your attention to the following issues so that correct and safe operation of your gas-powered floor buffer is achieved. The superior performance of gas buffer has led to an increased demand for the use of this type of floor maintenance equipment. This highlights the need for responsible manufacturers, owners and operators to stress the importance of safety.
- Page 7 DO NOT modify the unit in any way without the written permission of the Polivac International Pty. • Ltd. Any unauthorised modifications will void the warranty and Polivac International Pty. Ltd. Will not be responsible for any damages to the unit or caused by the unit.
- Page 8 GAZDA 42G GAS BUFFER Belt Tensioner Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 9 GAZDA 42G GAS BUFFER Belt Tensioner Assembly Part List - Page 1 of 2 Item Description Part No. Number Tensioner Cross Member GZ001/5089 Shadow BRKT Welded GZ001/5084 Shadow Angle Welded GZ001/5080 Pulley BRKT Torque GZ001/5083 Pulley BRKT Plain Welded GZ001/5086 Cradle Tensioner GZ001/5108 Tensioner Front...
- Page 10 GAZDA 42G GAS BUFFER Belt Tensioner Assembly Part List - Page 2 of 2 Item Description Part No. Number M16 Spring Washer GZ006/0633 M16x36x3 Flat Washer GZ006/3287 M16 Nut ZP GZ006/3281 M10x25 Coach Bolt GZ006/2564 M10x35x6 HD Washer GZ001/5113 M10 Nyloc GZ006/2712 Drawings by: LeanSynergicDesign.com.au...
- Page 11 GAZDA 42G GAS BUFFER Brush Pulley Assembly...
- Page 12 GAZDA 42G GAS BUFFER Brush Pulley Assembly Part List Item Description Part No. Number Pulley Brush 22, 32, 42 GZ010/3064 Aluminium Clutch GZ010/3073 Bearing 6204 DDU VPV230 Circlip Internal 47mm Gas031A Pad Holder Retainer GZ010/3071 Hand Tee Knob GZ010/3074 Plastic Spicked Padlock GZ010/3083 Pad 52 CM P50Jackaro...
- Page 13 GAZDA 42G GAS BUFFER Engine Subassembly Parts DETAIL B DETAIL A Drawings by: LeanSynergicDesign.com.au...
- Page 14 GAZDA 42G GAS BUFFER Engine Subassembly Parts DETAIL C Drawings by: LeanSynergicDesign.com.au...
- Page 15 GAZDA 42G GAS BUFFER Engine Subassembly Part List Item Description Part No. Number Engine KOH23HPA Top Cowl Base Strip GZ001/5101 Screen Metal Basket GSS031BS Rivet AS 6-4 AAK 829 Engine Dust Filter GSS028BS 3/8" M BSPT x 1/2" Hose Tail GSS006/3566 1/2"...
- Page 16 GAZDA 42G GAS BUFFER Fan Plastic Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 17 GAZDA 42G GAS BUFFER Fan Plastic Assembly Part List Item Description Part Number Number Motor Pulley 1 1/8" Bore GZ010/5122 Fan Plastic GZ010/0856 Fan Washer Support 32, 42 GZ010/3047 M8x16 Set screw ZP GZ006/2221 M8 Spring Washer GZ006/2372 Rivet AS 6-4 AAK 829 42G Key Crankshaft GAS089...
- Page 18 GAZDA 42G GAS BUFFER Gas Bottle Holder Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 19 GAZDA 42G GAS BUFFER Gas Bottle Holder Assembly 39 14 Gas Supply Detail Drawings by: LeanSynergicDesign.com.au...
- Page 20 GAZDA 42G GAS BUFFER Dust Bag Drawings by: LeanSynergicDesign.com.au...
- Page 21 GAZDA 42G GAS BUFFER Main Body Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 22 GAZDA 42G GAS BUFFER Main Body Assembly 15 14 DETAIL A Drawings by: LeanSynergicDesign.com.au...
- Page 23 GAZDA 42G GAS BUFFER Vacuum Cover Box Drawings by: LeanSynergicDesign.com.au...
- Page 24 GAZDA 42G GAS BUFFER Main Body & Gas Bottle Holder Part List - Page 1 of 3 Item Description Part No. Number Main Body GZ001/0001 Gas Bottle Holder GZ001/5027 Vacuum Cover Box GZ001/5020 Vac Fan Cover GZ001/5017 Handle Red 22G/32G/42G GZ010/0822 CV20 Oil Seal Cover GZ001/5120...
- Page 25 GAZDA 42G GAS BUFFER Main Body & Gas Bottle Holder Part List - Page 2 of 3 Item Description Part No. Number M10 Nyloc GZ006/2712 M6x20 Coach Bolt GZ006/1928 M5x20 Pan Head GZ006/1618 M5 Nyloc GZ006/1704 M8x20 Flat Washer.par GZ006/2367 M8x40 Set screw 8.8 GZ006/2226 M8 Spring Washer...
- Page 26 GAZDA 42G GAS BUFFER Main Body & Gas Bottle Holder Part List - Page 3 of 3 Item Description Part No. Number Electrical lug and wire Wheel Gazda GZ0100596 Dust Bag D'Master 22 32 42 N GZ001/3021 Engine Pulley Retainer Washer GZ010/5128 7/16 x 1 1/2"...
-
Page 27: Warranty Policy
Use of non-approved chemicals and detergents in the product will void the warranty. 10. Products that have been modified are not covered by warranty. 11. Products that have not been serviced at their recommended intervals by an authorised Polivac Service Centre or Agent are not covered by warranty 12.
