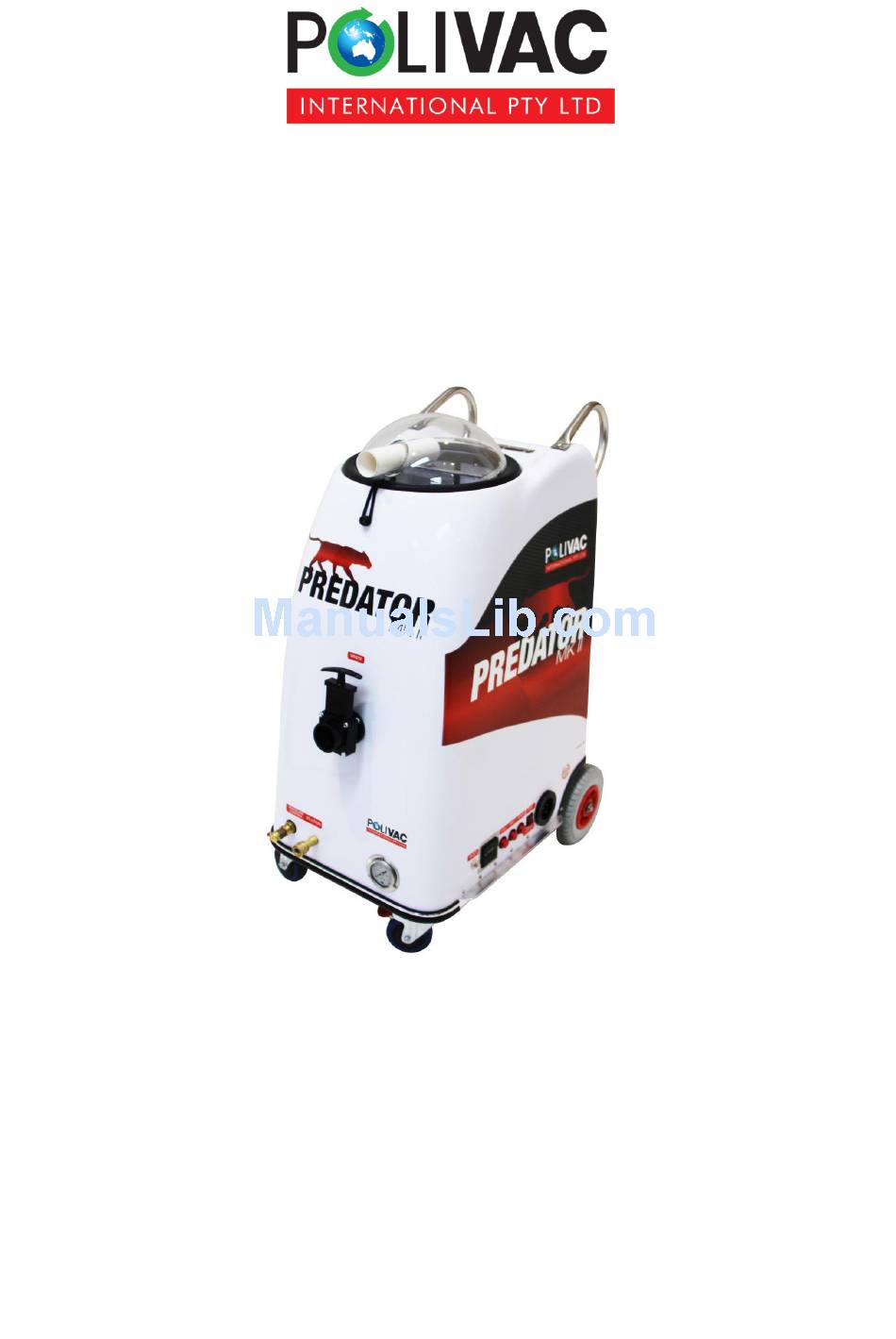

- Page 1 Polivac Predator MK II Carpet Extractor Machine Operations Manual & Trouble Shooting Guide...
- Page 2 This is an introduction on the use of the Polivac Predator Carpet Extraction unit. Directions for Use Connect 240v extension cable from power source to #1 power socket on unit. Fig #1 Now connect the Male end of solution hose to Female solution outlet on the front of the unit.
- Page 3 Polivac predator side control panel 240 volt 10 AMP power inlet socket. Pump or heater selector switch. Water pump power switch. Vac motor #1 power switch. Vac motor #2 power switch. Machines operating hour timer. Thermal pump overload reset switch.
- Page 4 This is an introduction on the use of the Polivac Predator Carpet Extraction unit. Operating the Polivac Predator Now you have set the unit up according to the previous instructions it is time to engage the unit completely. Turn on the pump switch (3) and Vac 1 (4) and Vac 2 (5) as per Fig #1.
- Page 5 Polivac Predator pressure control Pressure increase/decrease regulator tap. Solution outlet (for connection to high pressure hose).
- Page 6 Polivac Predator Dump Valve To release captured waste water lift handle as shown in diagram. Water will drain & then depress the handle down to reseal.
- Page 7 Polivac Predator pressure Gauge This gauge shows the operator what pressure the water is hitting the surface at. The Predator has a range of 0 - 500psi. The recommended carpet cleaning pressure is 350psi - 400psi . (Adjusting past this doesn’t provide a better cleaning results, instead just causes unnecessary wear on wand triggers.)
- Page 8 Polivac Predator Booster inlet. Figure 1 shows booster inlet in the closed position Figure 2 shows inlet opened to connect the vac hose and booster box. Inlet opens by hand only and will close itself after use.
- Page 9 General Maintenance & Troubleshooting Guide Maintenance The key to keeping the unit in good working order is general maintenance. Follow the below procedure for best result with unit. 1. Water filter Remove from water tank by unscrewing. Clean and refit. 2.
-
Page 10: Cabinet Assembly
Predator MKII & MKIII Cabinet Assembly 19 30 Drawings by: LeanSynergicDesign.com.au... -
Page 11: Cabinet Parts List
No Code Description No Code Description PPR001 Cabinet PPR003 Pinch Weld PPR028 Dump Valve PPR005A Switch Guard Alloy PPR030 Gasket PPR245 Polivac Label PPR029 Dump Valve Spout PPR128 Washer PPR031 PVT025 Washer PPR027 Dome PPR090 Bolt PPR047 Rubber Seal AAA354... - Page 12 Predator MKII & MKIII Motor-Pump-Frame Assembly PPR257 18 19 20 Drawings by: LeanSynergicDesign.com.au...
- Page 13 Predator MKII & MKIII Motor-Pump-Frame Assembly Parts List No Code Description PPR005 Side Frame PPR009 Wheel Plate PPR006 Front Frame PPR007 Rear Frame PPR010 Cross Bar PPR008 Motor Plate PPR016 Castor PPR090 Bolt AAA354 PPR017 Drive Motor SK006 Bolt AAG365 Washer SLB043 PPR011...
- Page 14 Predator MKII & MKIII Motor-Pump-Frame Assembly Parts List No Code Description PPR033 Ball Bearing GAS034 Brass Elbow GAS077 V8 Vac Hose PPR256 Brass Elbow PPR059 Reducing Plug PPR053 Brass Elbow PPR042 Clamp PPR039 Hose PPR051 Brass Barb AAG470 Washer 1/2'' x 1'' Zinc Bright PPR038 Female Hose end 1/4'' SAE PPR102...
-
Page 15: Undercarriage Assembly
Predator MKII & MKIII Undercarriage Assembly 24 23 Drawings by: LeanSynergicDesign.com.au... - Page 16 Predator MKII & MKIII Undercarriage Assembly Parts List No Code Description PPR022 Switch PPR130 Rocker Switch Neok PPR048 Inlet Socket PPR023 Hour Meter PPR124A Thermal Overload PPR020 Pressure Gauge PVT029 S/S Self Tap Screw PPR080 Brass Conector PPR021 Unloader PPR004 Kick Plate AAK838 Pop Rivet...
- Page 17 Predator MKII & MKIII Undercarriage Assembly Parts List No Code Description PPR052 Brass Barb PPR184 Vac Motor Mounts Spring PPR040 Silver flex Hose PPR043 Hose Clamp 40-55 PPR133 Inlet Booster Box PPR044 Muffler end Cap PM037 50 mm Vac Pipe PVS424A Base Brace PPR134...
