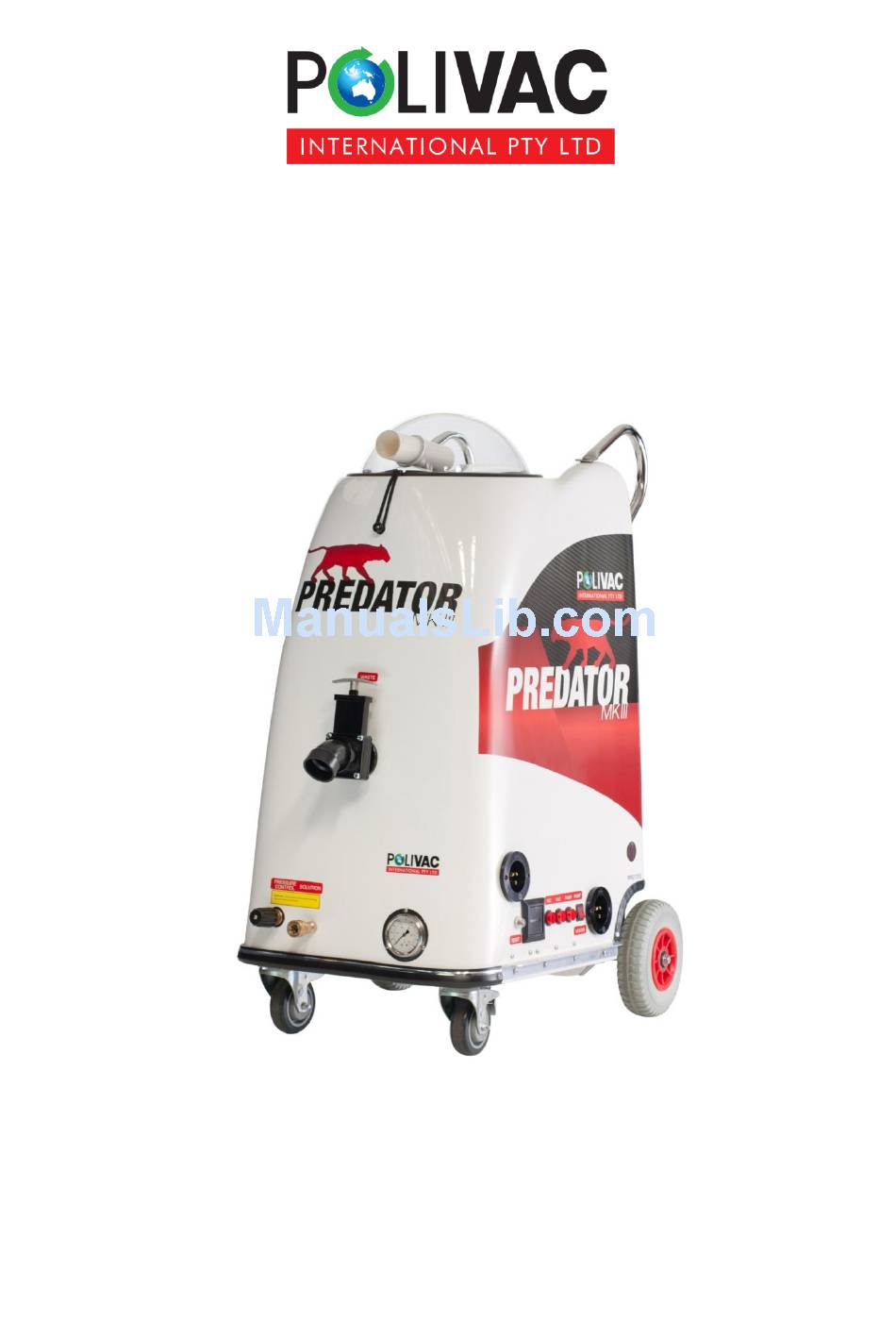

- Page 1 Polivac Predator MK III Carpet Extractor Machine Operations Manual & Trouble Shooting Guide...
- Page 2 remove from skid now you are connect the ready to power clean turn pump connect switches and solution and vacuum vaccuum switches on hoses on at a time. fill the connect the solution tank wand...
-
Page 3: Connecting The Power
Connecting the power Connect the female sockets of the supplied extension cords to the panel sockets. Note: You must connect both cord to operate the machine and when using at pressure above 400 psi, you must connect to two separate power phases in the building. -
Page 4: Pressure Hose
Pressure Hose Vacuum hose Connect the female pressure hose fitting to the male wand connector and slide the cuff over the end of the wand. You may need to replace trigger kits See below. - Page 5 Hose Connector Auto fill Option Filling the tank use a bucket or hose to fill the solution tank, you can use water with a temp up to max of 70 degree Celcius. If you have the option extra of auto fill, just connect hose to the Connector on the body.
- Page 6 A standard wand only requires 350 to 400 psi any more may result in unnecessary damage or wear to the wand and trigger system. It is recommended that the upholstery tool or stair tool pressure is 150psi. When using a spinning tool on tiles you may adjust pressure to 800 / 1000psi. To measure the pressure engauge the trigger on your device then adjust accordingly using the pressure control knob.
- Page 7 Ensure waste dump valve is complete shut Polivac Warranty 1. When a warranty repair is justified, Polivac welcomes such repair by any of its authorized Service Centres. In most instances, the request for warranty brought to the attention of our service Divisions or Agents are handled in a prompt routine manner with no question of their validity.
- Page 8 The warranty covers only the replacement, repair or adjustment of any part which in the opinion of Polivac fails as a result of a fault in manufacture assembly. Note 2 year warranty applies to drive motors and gearbox assemblies on electrical machines.
-
Page 9: Cabinet Assembly
Predator MKII & MKIII Cabinet Assembly 19 30 Drawings by: LeanSynergicDesign.com.au... -
Page 10: Cabinet Parts List
No Code Description No Code Description PPR001 Cabinet PPR003 Pinch Weld PPR028 Dump Valve PPR005A Switch Guard Alloy PPR030 Gasket PPR245 Polivac Label PPR029 Dump Valve Spout PPR128 Washer PPR031 PVT025 Washer PPR027 Dome PPR090 Bolt PPR047 Rubber Seal AAA354... - Page 11 Predator MKII & MKIII Motor-Pump-Frame Assembly PPR257 18 19 20 Drawings by: LeanSynergicDesign.com.au...
- Page 12 Predator MKII & MKIII Motor-Pump-Frame Assembly Parts List No Code Description PPR005 Side Frame PPR009 Wheel Plate PPR006 Front Frame PPR007 Rear Frame PPR010 Cross Bar PPR008 Motor Plate PPR016 Castor PPR090 Bolt AAA354 PPR017 Drive Motor SK006 Bolt AAG365 Washer SLB043 PPR011...
- Page 13 Predator MKII & MKIII Motor-Pump-Frame Assembly Parts List No Code Description PPR033 Ball Bearing GAS034 Brass Elbow GAS077 V8 Vac Hose PPR256 Brass Elbow PPR059 Reducing Plug PPR053 Brass Elbow PPR042 Clamp PPR039 Hose PPR051 Brass Barb AAG470 Washer 1/2'' x 1'' Zinc Bright PPR038 Female Hose end 1/4'' SAE PPR102...
-
Page 14: Undercarriage Assembly
Predator MKII & MKIII Undercarriage Assembly 24 23 Drawings by: LeanSynergicDesign.com.au... - Page 15 Predator MKII & MKIII Undercarriage Assembly Parts List No Code Description PPR022 Switch PPR130 Rocker Switch Neok PPR048 Inlet Socket PPR023 Hour Meter PPR124A Thermal Overload PPR020 Pressure Gauge PVT029 S/S Self Tap Screw PPR080 Brass Conector PPR021 Unloader PPR004 Kick Plate AAK838 Pop Rivet...
- Page 16 Predator MKII & MKIII Undercarriage Assembly Parts List No Code Description PPR052 Brass Barb PPR184 Vac Motor Mounts Spring PPR040 Silver flex Hose PPR043 Hose Clamp 40-55 PPR133 Inlet Booster Box PPR044 Muffler end Cap PM037 50 mm Vac Pipe PVS424A Base Brace PPR134...
