Summary of Contents for Polivac Predator MK II

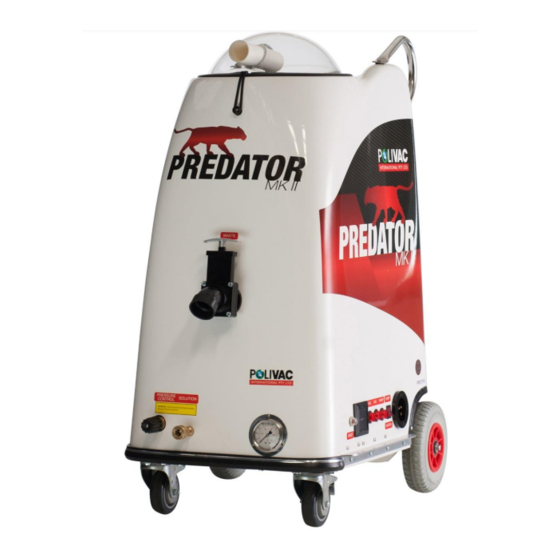

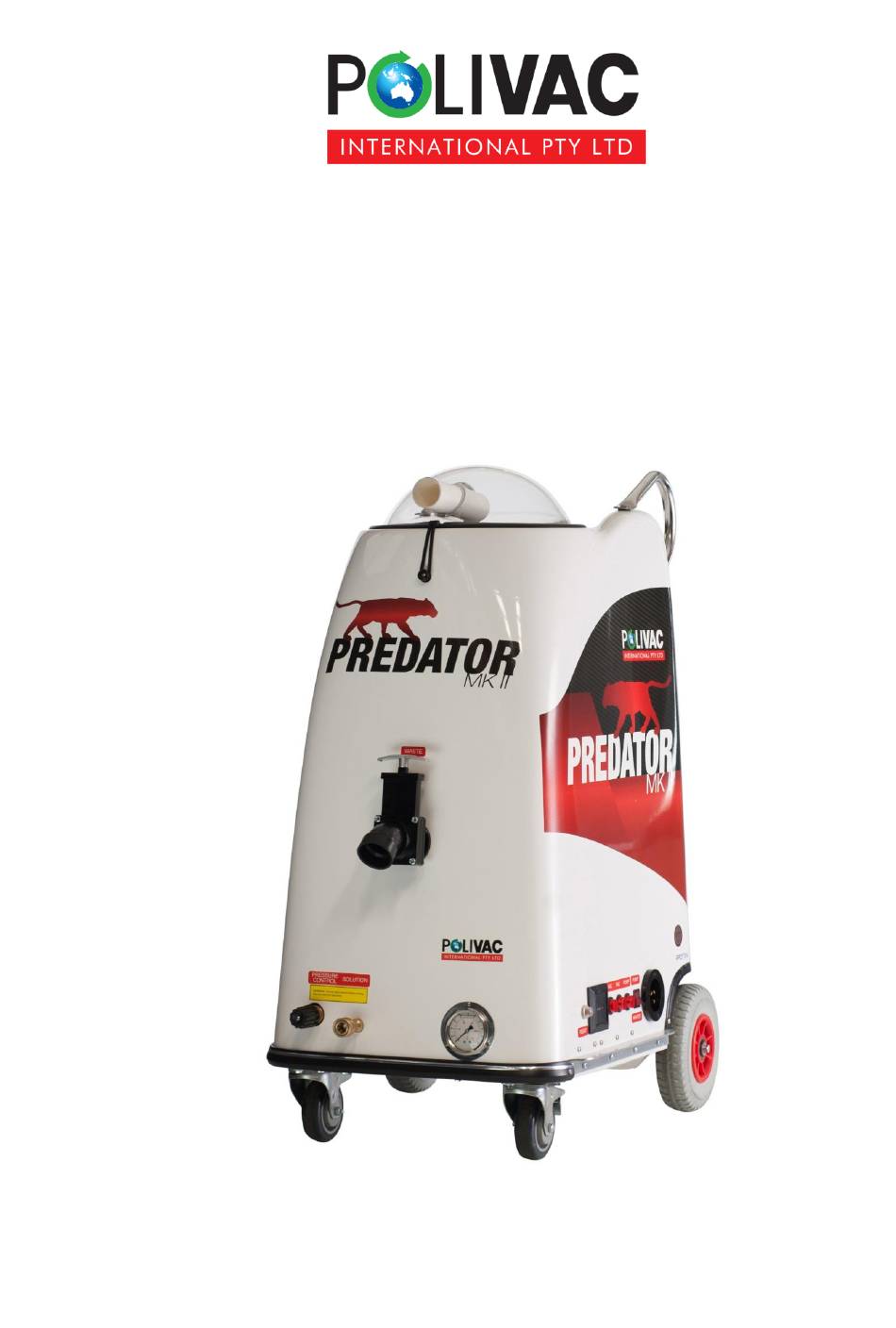

- Page 1 Polivac Predator MK II Carpet Extractor Machine Operations Manual & Trouble Shooting Guide...
- Page 2 remove from skid now you are connect the ready to power clean turn pump connect switches and solution and vacuum vaccuum switches on hoses on at a time. fill the connect the solution tank wand...
- Page 3 This is an introduction on the use of the Polivac Predator MK II Carpet Extraction unit. Directions for Use (Please refer to picture as well in next page) 1. Connect 240v extension cable from power source to #1 (Figure 3) power socket on unit.
- Page 4 FIGURE 1 Solution Hose Vacuum Hose • Connect the supplied hoses to the above pictured connection. To connect the solution hose, push the sleeve back on the brass socket insert the male plug then release. • To connect the vacuum hose just insert the black hose cuff into plastic pipe. FIGURE 2 Pressure Hose Vacuum hose...
- Page 5 Predator MKII Side Control Panel 240-Volt 10 AMP power inlet socket. Pump or heater selector switch. Water pump power switch. Figure #3 Vac motor #4 power switch. Vac motor #5 power switch. Machines operating hour timer. Thermal pump overload reset switch. Predator MKII Pressure Control Figure 4 1.
- Page 6 Predator MKII Dump Valve • To release captured wastewater lift handle as shown in diagram. • Water will drain & then depress the handle down to reseal. Predator MKII Booster inlet Figure 5 shows booster inlet in the closed position Figure 6 shows inlet opened to connect the vac hose and booster box.
-
Page 7: Maintenance
General Maintenance & Troubleshooting Guide Maintenance The key to keeping the unit in good working order is general maintenance. Follow the below procedure for best result with unit. • Must Empty dirt water and clean water from tanks after each use. 1. - Page 8 PREDATOR MKII CABINET ASSEMBLY...
- Page 9 PREDATOR MKII CABINET ASSEMBLY Code Description Code Description Cabinet PVT018 Piano Hinge PPR001 Dump Valve AAK838 Rivet PPR028 Gasket PPR003 PPR030 Pinch Weld PPR029 Dump Valve Spout PPR005A Switch Guard Alloy PPR031 PPR245 PredatorMKII Label PPR027 Dome PPR128 Washer PPR047 Rubber Seal PVT025 Washer...
- Page 10 PREDATOR MKII MOTOR – PUMP – FRAME ASSEMBLY...
- Page 11 PREDATOR MKII CABINET ASSEMBLY Code Description Code Description Monel Screen PPR018 PPR032 Pump Reducer PPR090 PPR059 Bolt PPR016 PPR054 Castor Wheel W/Break Washer 1/2”x1” Zinc 26 PVT029 AAG470 Screw Brass Barb PPR006 PPR051 Front Frame Clamp PPR090 PPR042 Bolt Hose PPR009 PPR039 Wheel Plate...
- Page 12 PREDATOR MKII UNDERCARRIAGE ASSEMBLY...
- Page 13 PREDATOR MKII UNDERCARRIAGE ASSEMBLY PARTS LIST Code Description Code Description PPR025 Heater Element PPR184 VacMotor Mount Spring PPR144 Float Switch COM086 Rubber Seal PPR044 Muffler End Cap PPR236 Brass Elbow PM037 PPR020 Pressure Gauge 50mm Vac Pipe PPR043 PVT029 S/S Self Tap Screw Hose Clamp 40-55 AAK838 PPR235...
-
Page 14: Warranty Policy
Use of non-approved chemicals and detergents in the product will void the warranty. 10. Products that have been modified are not covered by warranty. 11. Products that have not been serviced at their recommended intervals by an authorised Polivac Service Centre or Agent are not covered by warranty 12.
