Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN

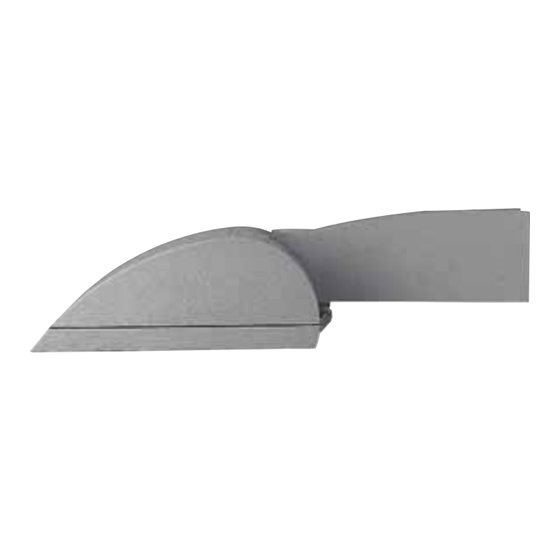

Installation and Maintenance
Wall Luminaire Surface Mounted and
Street and Area Lighting Luminaire
Instructions
FLA441 LED
FLA461 LED
Advertisement
Related Manuals for WE-EF FLA441 LED
Summary of Contents for WE-EF FLA441 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Wall Luminaire Surface Mounted and Street and Area Lighting Luminaire FLA441 LED FLA461 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Wall Luminaire Surface Mounted and Street and Area Lighting Luminaire FLA441 FLA461...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation Procedure
N = Neutral, = Earthing) opened during installation. b) WE-EF Control Basic (L = Phase, N = Neutral, = Earthing, Ls = Switching Phase) or WE-EF Control Dynamic (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control control line). - Page 5 Mounting Accessories D/D1 310-9110 310-9109 Planted root – Galvanised steel. 300-9100 300-0824 310-9134 310-9135 – Aluminium/wood. 310-9136 – Aluminium/wood. 310-9137 EB1/EB2 EB1/EB2 (aluminium/wood)
- Page 6 Fig. I. Feed mains supply cable through cable gland...
- Page 7 WE-EF LEUCHTEN WE-EF LIGHTING Germany Thailand Fax +66 2 175 2174 info.germany@we-ef.com WE-EF LUMIERE WE-EF LIGHTING France Australia Tel +33 4 74 99 14 44 info.france@we-ef.com info.australia@we-ef.com WE-EF HELVETICA WE-EF LIGHTING United States of America Tel +41 22 752 49 94 Fax +41 22 752 49 74 info.usa@we-ef.com...
- Page 8 WE-EF LEUCHTEN Installation and Maintenance Instructions Planted Root ESV4 ESV2 ESV6...
- Page 9 Planted Root ESV4 300-0461 ESV4 300-0464 Suitability Suitability 1. KTX234 1. CFY259 2. KTY234 2. GRY234 3. ZFY230 3. RRY324 4. GRY224 4. RRZ324 5. Short post 5. XRY324 6. XRZ324 ESV4 300-0586 ESV4 300-0459 Suitability Suitability 1. XRY334 1. QSI254 2.
- Page 10 Planted Root ESV2 300-9115 ESV6 300-0457 Suitability Suitability 1. PSY414/424 1. LTM440 2. LTM444 3. AMW-C 4. AMF-C 5. AMF-S 6. AML-C ESV6 300-0824 Suitability 1. AML-C 2. FLA461...
-
Page 11: Installation Instruction
Installation Instruction 1) Note: It is the responsibility to installer to 2) Please note, ESV4 and ESV6 must be ensure the suitability of the ESV planted root orientated correctly for different products. for any local or national structural requirements In both instances conduit entry can be rotated for installation, and that planted root is suitable to match cable routing. - Page 12 5) For all other product that use ESV6 please orientate planted root as shown (base plate connections/conduit. is parallel to the pathway). For this installation, use 40 mm long M16 bolts supplie. 7) Place the ESV in the form work for concrete 8) Fit the nominated bolts through mounting pad, ensuring orientation, position and levels are correct.
- Page 13 9) Pour concrete to desired level depending on requirement of soil, paver or concrete. Ensure (as per luminaire instructions) onto mounting Concrete Paver Soil...
- Page 14 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9257W0420 © WE-EF 2020 subject to change.
