Summary of Contents for Chauvet DJ Wash FX2

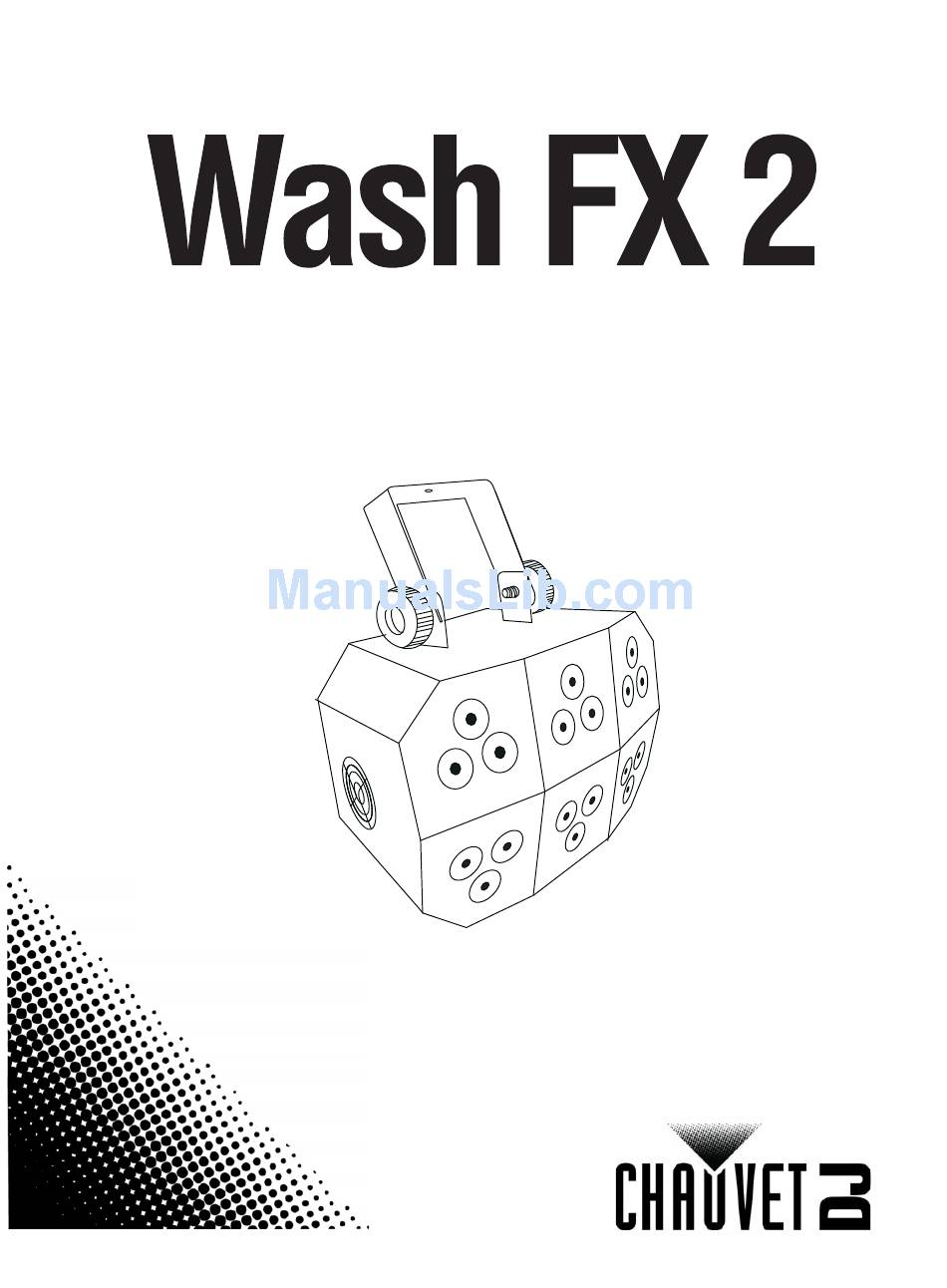

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Unpacking Instructions.................. Claims ........................ Text Conventions ..................Symbols ......................Disclaimer ..................... Product at a Glance ..................Safety Notes....................2. Introduction ................Product Overview..................Product Dimensions ..................3. -
Page 3: Before You Begin
EFORE EGIN 1. B EFORE EGIN What Is Included • Wash FX 2 • Warranty Card • Power Cord • Quick Reference Guide Unpacking Instructions Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 4: Product At A Glance
EFORE EGIN Product at a Glance Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes • Always connect the product to a grounded circuit. •... -
Page 5: Introduction
NTRODUCTION 2. I NTRODUCTION Product Overview Microphone In/Out Display Menu Buttons Fuse Holder Power Power Safety Loop Mounting Bracket Quad LEDs Wash FX 2 User Manual Rev. 1 Page 3 of 16... -
Page 6: Product Dimensions
NTRODUCTION Product Dimensions 5.72 in 145 mm 7.5 in 7.88 in 192 mm 200.3 mm 11.69 in 297 mm Page 4 of 16 Wash FX 2 User Manual Rev. 1... -
Page 7: Setup
ETUP 3. S ETUP AC Power The Wash FX 2 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
ETUP Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Wash FX 2 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
PERATION 4. O PERATION Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Please refer to Product Overview to see the button locations on the control panel. UTTON UNCTION <MENU> Press to find an operation mode or to back out of the current menu option <UP>... -
Page 10: Dmx Channel Assignments And Values
PERATION Press <MENU> repeatedly until 3Ch, 8Ch, or 28Ch shows on the display. Press <ENTER>. Use <UP> or <DOWN> to select the starting address, from d 1–512. Press <ENTER>. DMX Channel Assignments and Values 28Ch CHANNEL FUNCTION VALUE PERCENT/SETTING No function ... -
Page 11: 8Ch
PERATION CHANNEL FUNCTION VALUE PERCENT/SETTING Blue Zone 5 0–100% UV Zone 5 0–100% Red Zone 6 0–100% Green Zone 6 0–100% Blue Zone 6 0–100% UV Zone 6 0–100% CHANNEL FUNCTION VALUE PERCENT/SETTING 0–100% ... -
Page 12: 3Ch
PERATION CHANNEL FUNCTION VALUE PERCENT/SETTING No function Program 1 Program 2 Program 3 Program 4 Program 5 Program 6 Program 7 Auto Program Program 8 Program 9 Program 10 Program 11 ... -
Page 13: Sound Sensitivity
PERATION Turn the sensitivity knob up until the product responds to the beat of the music. The product will only respond to low frequencies of music (bass and drums). Sound Sensitivity To set the sound sensitivity on the Wash FX 2, do the following: Press <MENU>... -
Page 14: Irc-6 Operation
PERATION IRC-6 Operation Automatic Mode Automatic mode will enable you to run the automatic programs on the product. To turn on Automatic mode: Press <AUTO> on the IRC-6. Press <+> or <–> to choose between the different auto programs. To adjust the speed of the automatic program: Press <SPEED>... -
Page 15: Master/Slave Mode
PERATION Master/Slave Mode The Master/Slave mode allows a single Wash FX 2 product (the “master”) to control the actions of one or more Wash FX 2 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode. -
Page 16: Maintenance
AINTENANCE 5. M AINTENANCE Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 17: Technical Specifications
ECHNICAL 6. T ECHNICAL PECIFICATIONS Dimensions and Weight ENGTH IDTH EIGHT EIGHT 12.2 in (310 mm) 5.5 in (140 mm) 9 in (230 mm) 5.8 lb (2.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power OWER UPPLY ANGE OLTAGE... -
Page 18: Returns
ETURNS ETURNS In case you need to get support or return a product: • If you are located in the U.S., contact Chauvet World Headquarters. • If you are located in the UK or Ireland, contact Chauvet Europe Ltd. • If you are located in Mexico, contact Chauvet Mexico. -
Page 19: Contact Us
ONTACT ONTACT World Headquarters General Information Technical Support Address: 5200 NW 108th Ave. Voice: (844) 393-7575 Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chuavetcs@chauvetlighting.com Fax: (954) 929-5560 Website Toll Free: (800) 762-1084 www.chauvetlighting.com EUROPE General Information Technical Support Address: Stokstraat 18 Email: eutech@chauvetlighting.eu...
