Summary of Contents for Chauvet DJ 4BAR QUAD

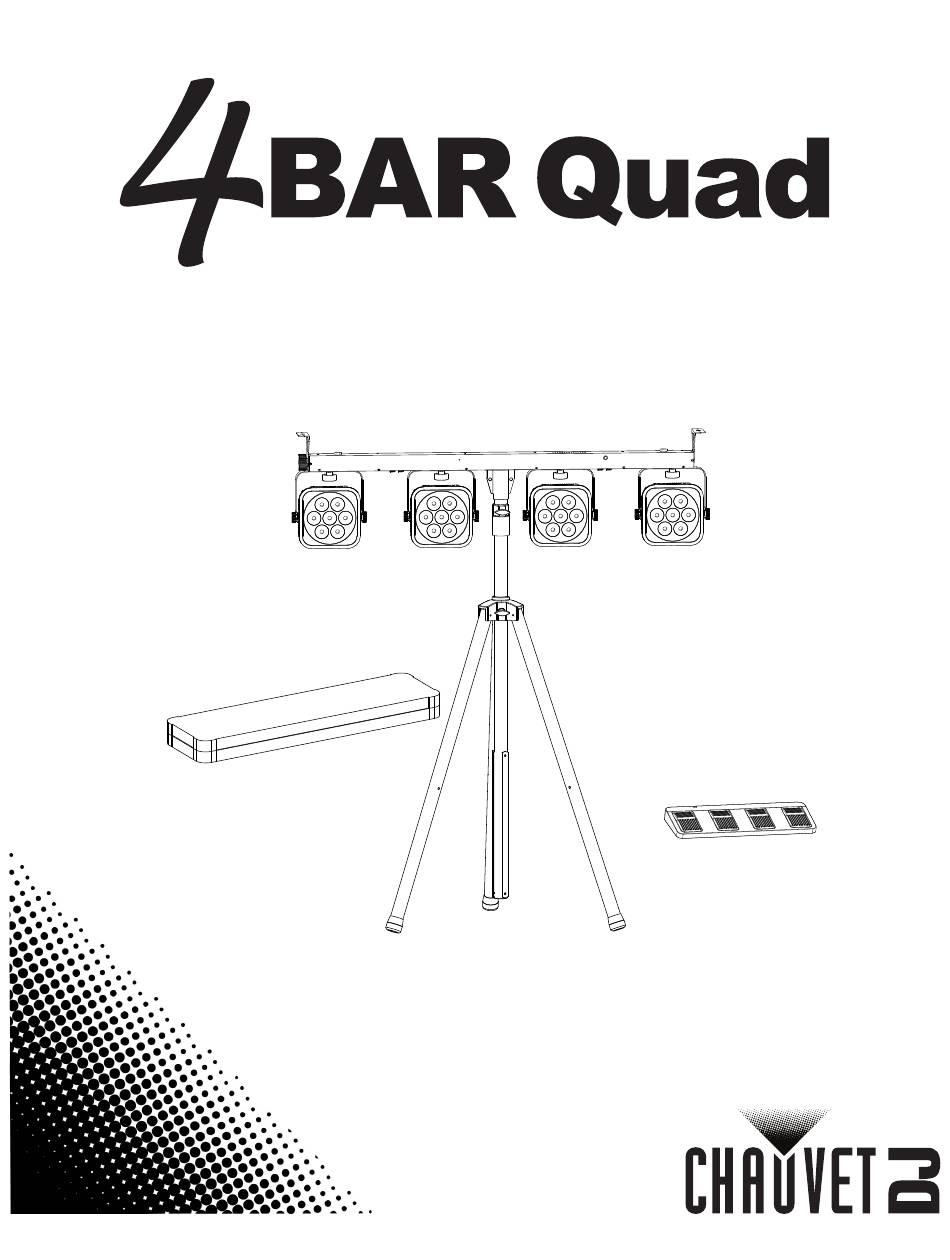

- Page 1 User Manual...
-
Page 2: Table Of Contents
Footswitch Battery....................IRC-6 Infrared Remote Control ..............IRC-6 Operation ...................... Master/Slave Mode ..................Master/Slave Mode (wired) ..................Master/Slave Mode (D-Fi USB)................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................4BAR Quad User Manual Rev. 2... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and 4BAR Quad are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Fcc Statement
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 18 4BAR Quad User Manual Rev. 2... -
Page 5: Introduction
Introduction 2. Introduction Product Overview 4BAR Quad - Back Panel View LED Display Microphone In/Out Power In Infrared D-Fi USB Menu Fuse Sensor Port Buttons Holder Footswitch Power Switch Indicators 9-Volt Battery Cover WARNING! DO NOT plug anything other than a D-Fi USB into the USB Port. Doing so may cause damage to the product. -
Page 6: Product Dimensions
Product Dimensions Front View 46.7 in 1186 mm 43.3 in 1100 mm 12.8 in 326 mm 12 in 305 mm Side View 4.8 in 122 mm 3.7 in 95 mm Page 4 of 18 4BAR Quad User Manual Rev. 2... -
Page 7: Setup
3. Setup AC Power The 4BAR Quad has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The 4BAR Quad may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
A. 0–255 S. 0–100 Strobe rate Turns Infrared on or off for footswitch or IRC-6 control Control Mode SLAV Enable Master/Slave with other BT products Enable Master/Slave with non-BT products 4BAR Quad User Manual Rev. 2 Page 7 of 18... -
Page 10: Dmx Linking
If the starting address is set too high, access to some of the product’s channels could be restricted. The 4BAR Quad uses up to 15 DMX channels in a 15-Ch DMX mode, which defines the highest configurable address to 494. -
Page 11: Dmx Channel Assignments And Values
016 255 Strobe, slow to fast Channel Function Value Percent/Setting 000 255 0–100% Green 000 255 0–100% Blue 000 255 0–100% Amber 000 255 0–100% 4BAR Quad User Manual Rev. 2 Page 9 of 18... -
Page 12: Configuration (Standalone)
DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Static Colors To run the 4BAR Quad in Preset Color mode, follow the instructions below: 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>. -
Page 13: Wireless Footswitch
The 4BAR Quad footswitch will work properly in any mode, with a maximum unobstructed distance of 100 ft (30.5 m). You must turn on the ir on the 4BAR Quad, set the ir channel, and navigate to Auto mode before using the footswitch. -
Page 14: Footswitch Battery
5. Place the battery into the housing and cover with the battery cover. 6. Secure the battery cover with the 2 Phillips-head screws. DO NOT overtighten the screws! Page 12 of 18 4BAR Quad User Manual Rev. 2... -
Page 15: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The 4BAR Quad is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to select ir. -
Page 16: Master/Slave Mode
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single 4BAR Quad product (the “master”) to control the actions of one or more 4BAR Quad products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in either standalone mode or with the footswitch, while the slave (receiver) products will be set to operate in slave mode. -
Page 17: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. 4BAR Quad User Manual Rev. 2 Page 15 of 18... -
Page 18: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range Optional Controllers 3-pin XLR 4, 6, or 19 IRC-6, D-Fi USB Ordering Product Name Item Code UPC Number 4BAR Quad 10031614 781462219628 Page 16 of 18 4BAR Quad User Manual Rev. 2... -
Page 19: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). 4BAR Quad User Manual Rev. 2 Page 17 of 18... -
Page 20: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record. Page 18 of 18 4BAR Quad User Manual Rev. 2...
