Summary of Contents for Chauvet DJ EZLink Par Q4BT
- Page 1 User Manual...
-
Page 2: Table Of Contents
Sound-Active Mode ....................Preset Color Mode ....................Custom Color Mixing ....................IRC-6 Infrared Remote Control ..............IRC-6 Operation ...................... Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................EZLink Par Q4BT User Manual Rev. 7... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and EZLink Par Q4BT are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 15 EZLink Par Q4BT User Manual Rev. 7... -

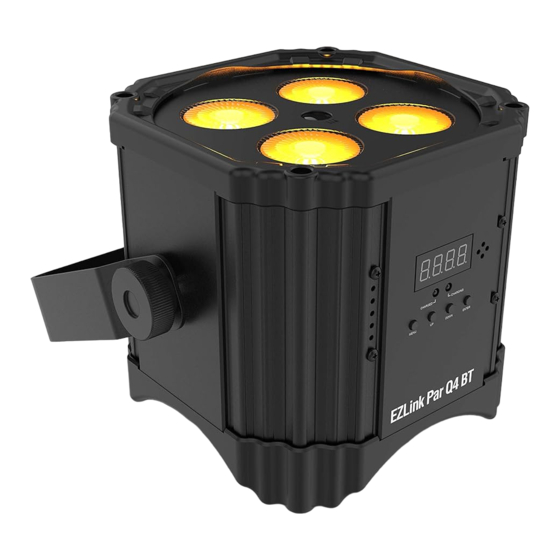

Page 5: Introduction
Introduction 2. Introduction Product Overview Power Power switch Power in/out Microphone Display indicators Menu buttons EZLink Par Q4BT User Manual Rev. 7 Page 3 of 15... -
Page 6: Product Dimensions
Introduction Product Dimensions 5.7 in 145 mm 5.6 in 143 mm 5.7 in 145 mm Page 4 of 15 EZLink Par Q4BT User Manual Rev. 7... -
Page 7: Setup
3. Setup AC Power The EZLink Par Q4BT has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Battery Power
The LED indicator light will flash if you overpower your units. • DO NOT use the EZLink Par Q4BT on full power mode (all LEDs at 100%) while it is being charged/plugged into a power source, as the unit will get extremely hot. -
Page 9: Operation
If the starting address is set too high, access to some of the product’s channels could be restricted. The EZLink Par Q4BT uses up to 8 DMX channels, which defines the highest configurable address is 505. For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com. -
Page 10: Dmx Personalities
Operation DMX Personalities The EZLink Par Q4BT has two DMX personalities: a 4-channel personality and an 8-channel personality. To select a DMX personality, follow the instructions below. Press <MENU> to view menu options on the display. Use <UP> or <DOWN> to select the DMX personality, from 4Ch or 8Ch. -
Page 11: Configuration (Bluetooth)
Operation Configuration (Bluetooth) The EZLink Par Q4BT can be operated with the BTAir application over a Bluetooth connection (Bluetooth version 4.2): Download and install the BTAir app from your preferred app store. Press <MENU> repeatedly until bLE shows on the display. -
Page 12: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The EZLink Par Q4BT is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Press <MENU> repeatedly until SEt shows on the display. Press <ENTER>. Use <UP> or <DOWN> to select ir. -
Page 13: Master/Slave Mode
The Master/Slave mode allows a single EZLink Par Q4BT product (the “master”) to control the actions of one or more EZLink Par Q4BT products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in standalone or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 14: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. Page 12 of 15 EZLink Par Q4BT User Manual Rev. 7... -
Page 15: Technical Specifications
104 °F (40 °C) Fan-assisted convection I/O Connector Channel Range Optional Controllers 3-pin XLR 4 or 8 IRC-6 Ordering Product Name Item Code UPC Number EZLink Par Q4BT 10031540 781462218881 EZLink Par Q4BT User Manual Rev. 7 Page 13 of 15... -
Page 16: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 14 of 15 EZLink Par Q4BT User Manual Rev. 7... -
Page 17: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of the record. EZLink Par Q4BT User Manual Rev. 7 Page 15 of 15...
