7 ATOMAS-MINI-TENUM-ADAPT
The ATOMAS-MINI-TENUM-ADAPT module is a video interface add-on module, fully compatible with the
ATOMAS-IOT-DUAL encoder platform. This optional module provides a direct connection to DRS Tenum
640 thermal camera on the parallel video interface of the ATOMAS-IOT-DUAL.
7.1 Board layout

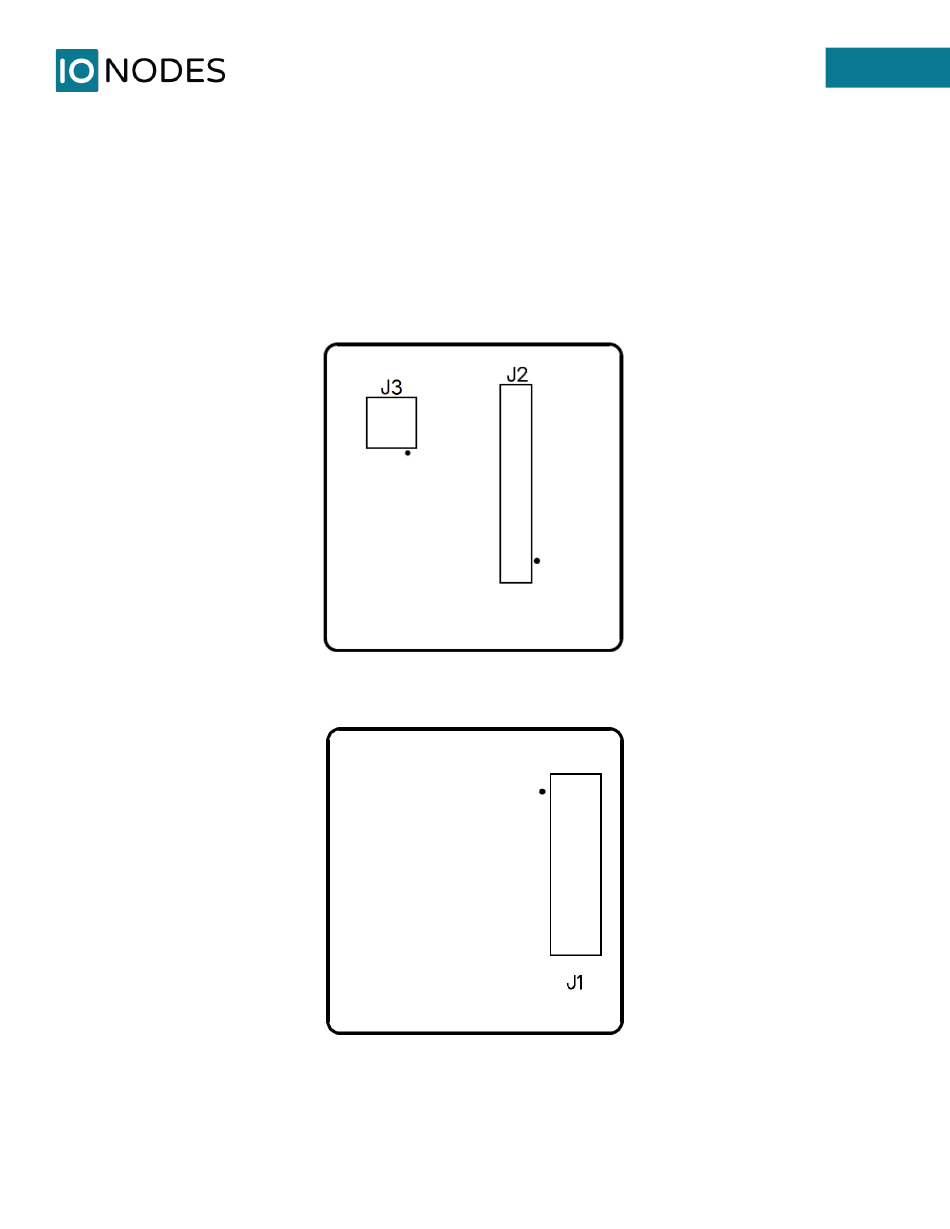

Figure 5 - ATOMAS-MINI-TENUM-ADAPT Top Side
Figure 6 - ATOMAS-MINI-TENUM-ADAPT Bottom Side
