4.3. Piping

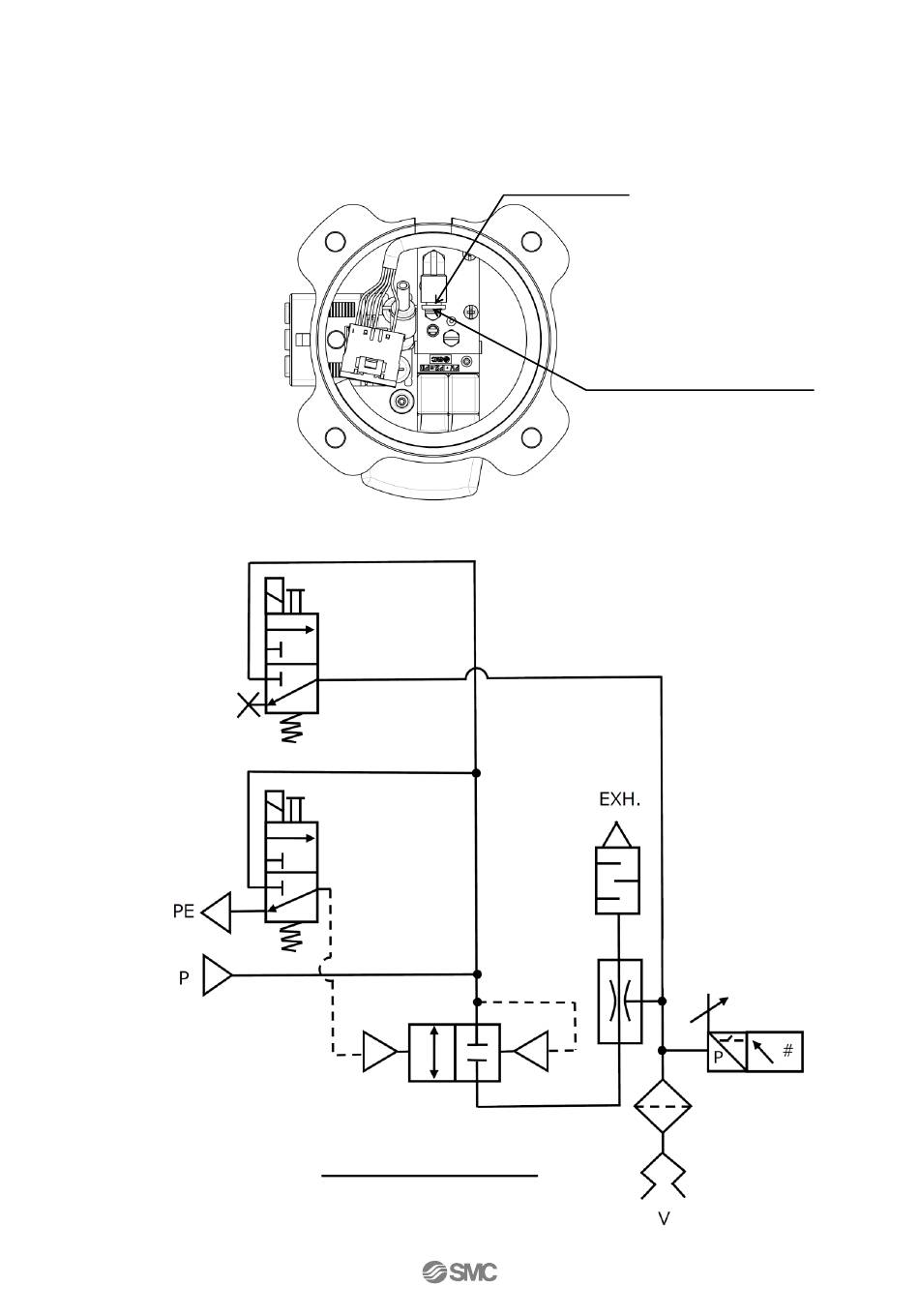

■Tubing
Connect a tube (applicable tube O.D. Ø4) to the air pressure supply (P) port.
To remove the tube, push the release button and pull out the tube.
Release valve
V114(N.C.)
Pilot valve for supply
V114(N.C.)
All manuals and user guides at all-guides.com
supply valve
Circuit diagram
-14-
Release Button
Air pressure supply (P) port
Applicable tubing O.D.:Φ4
Digital pressure switch
ZSE20-*-*-M5-A1
No. TQ1230001-OM104-A
