Precautions - Ruijie AP850-AR Hardware Installation And Reference Manual

Hardware Installation and Reference Guide

The power supply and required current are available in the installation location.

The Ethernet cables have been deployed in the installation location.

The selected power supply meets the system power requirements.

The position of the indoor emergency power switch is found before installation, so that the power switch can
be cut off in case of accidents.

For ceiling-mounted or wall-mounted AP, the mounting bracket dimensions and mounting hole pattern should
meet the requirements in

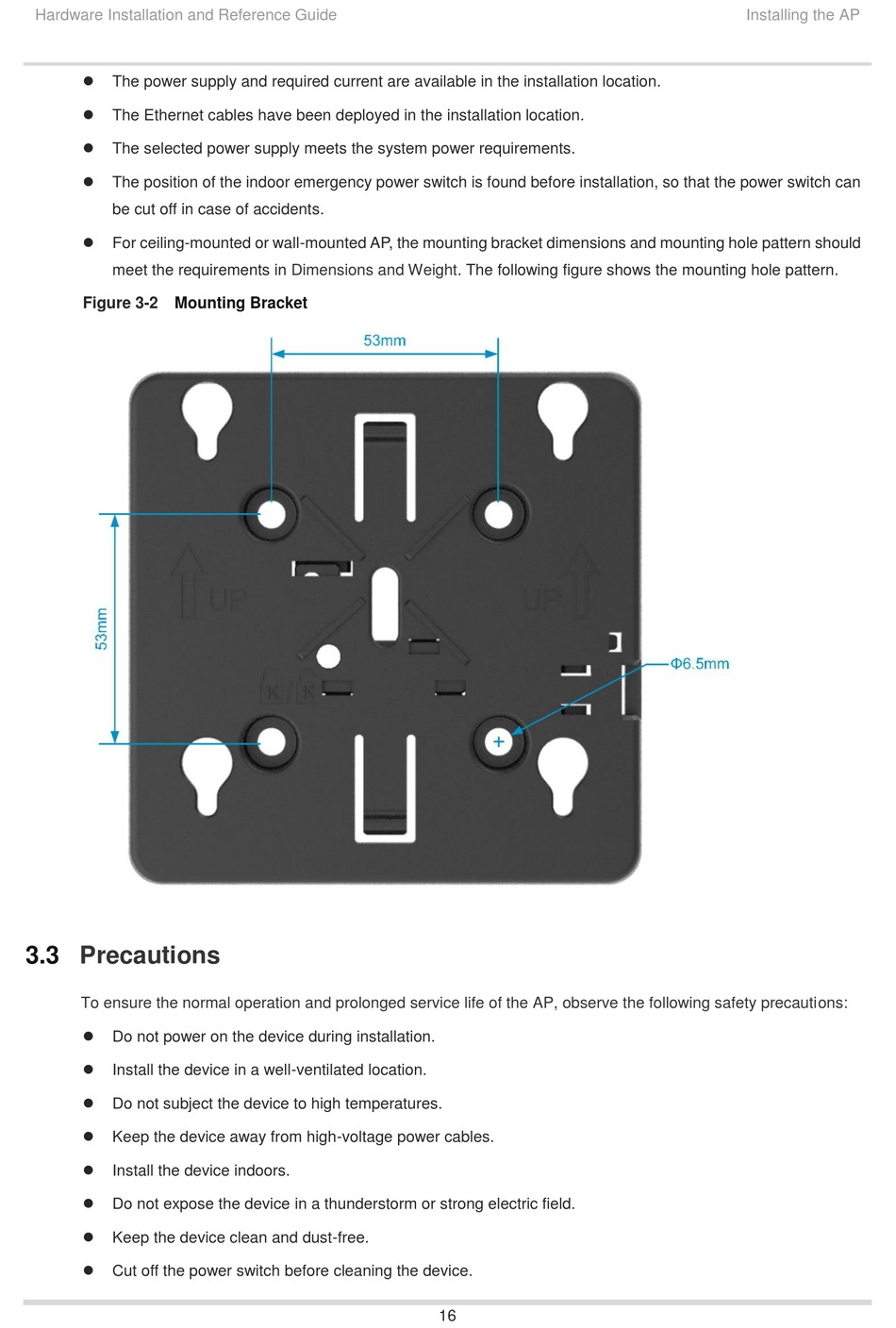

Figure 3-2 Mounting Bracket
3.3

Precautions

To ensure the normal operation and prolonged service life of the AP, observe the following safety precautions:

Do not power on the device during installation.

Install the device in a well-ventilated location.

Do not subject the device to high temperatures.

Keep the device away from high-voltage power cables.

Install the device indoors.

Do not expose the device in a thunderstorm or strong electric field.

Keep the device clean and dust-free.

Cut off the power switch before cleaning the device.
Dimensions and Weight. The following figure shows the mounting hole pattern.
16
Installing the AP
