Hardware Installation and Reference Guide
Table 1-1
LED
No.
Item
1
LED

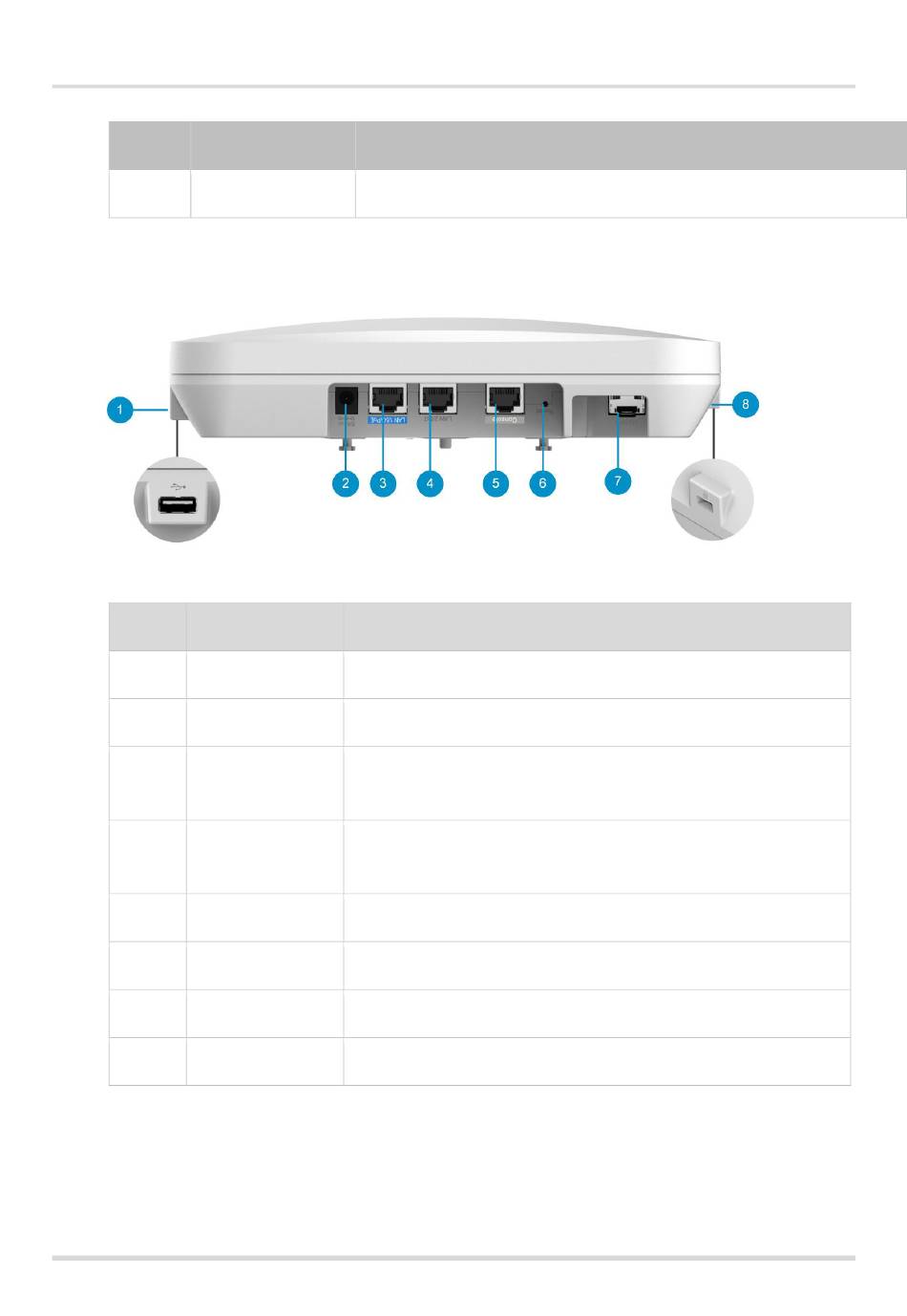

Figure 1-4
Side View
Table 1-2
Button and Ports
No.
Item
1
USB port
2
DC power connector
3
LAN1/PoE port
4
LAN2/IoT port
5
Console port
6
Reset button
7
5G SFP port
8
Lock slot
Description
Used to show the running status of the system
Description
Used for a USB connection
Connected to a 54 V DC power source to supply power to the AP
Uplink service port for a wired Ethernet connection and data transmission,
supporting IEEE 802.3af/at/bt-compliant PoE
Downlink service port for a wired Ethernet connection and data
transmission, supporting power supply to the IoT module (48 V/12.95 W)
Connected with a serial port cable for device management
Used to reboot the device or restore the device to factory settings
Uplink service port for data transmission
Connected to a security lock
3
Product Introduction
