Black Box Agility ACR1002 DP Quick Start

Agility configuration via web pages

Each Agility module hosts its own internal set of web pages which contain all configuration details
and settings. You will need to use a computer connected to the same network as each Agility unit
to access the web pages. Additionally, on the console attached to the receiver unit, you can access
its configuration details via the On Screen Display (OSD) by pressing:
CTRL + ALT + C
To configure Agility modules via their web pages
Run a web browser on your computer and enter the IP address of the required Agility:
The default addresses (if using port 1) are:
The default addresses (if using port 2) are:

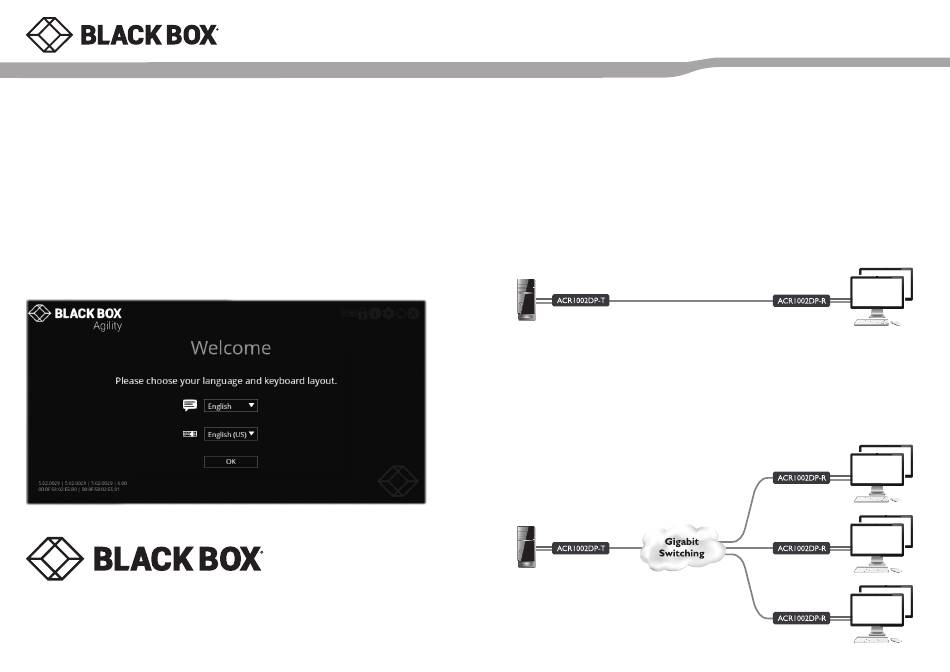

The opening page should be displayed:
Full user details and setup instructions can be found at:
MAN-QS-000066 Rev. 1.2

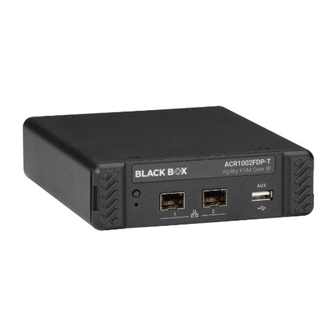

Agility ACR1002 DP, FDP and FH-T Extenders
Transmitter: https://169.254.1.33
Receiver: https://169.254.1.32
Transmitter: https://169.254.1.43
Receiver: https://169.254.1.42
www.blackbox.com
Order toll-free in the U.S. or for
FREE technical support 24/7: Call 877-877-BBOX
(outside U.S. call 724-746-5500)
www.blackbox.com • info@blackbox.com

Welcome

This quick start guide covers some of the key points of the Black Box ACR1002DP, ACR1002FDP and
ACR1002FH-T modules. Full user details and setup instructions can be found at www.blackbox.com
Please read the supplied safety instruction leaflet before use.

Initial configuration

Agility modules can be linked in two mains ways: Direct or Networked.

Direct linking

Where Agility transmitters and receivers are directly linked to each other, very little configuration
action is required, provided that they both have their factory default settings in place - just link them
together. If the standard settings have been changed in a previous installation, you merely need to
perform a manual factory reset on each unit. Please see the center pages.

Networked linking

Where Agility modules are connected via networked links, you can either configure them individually,
or configure them collectively using an iPATH server:
• Configuring networked Agility modules individually - You need to specify the network
addresses of the Agility modules so that they can locate each other. This can be done using via
OSD on the console connected to the RX unit by pressing CTRL + ALT + C. See rear page.
• Configuring networked Agility modules collectively - The iPATH server allows you to
configure, control and coordinate any number of Agility transmitters and receivers from a single
application. See blackbox.com for details.
Note: If you are using one or more Agility transmitters within
an installation managed by an iPATH server, the iPATH
server must be running firmware version 5.3 or above.
IMPORTANT: When using iPATH to configure Agility modules,
it is vital that all units that you wish to locate and control are
set to their factory default settings. Otherwise they will not be
located by the iPATH server. If necessary, perform a manual
factory reset on each Agility unit. See center pages.
Quick Start
