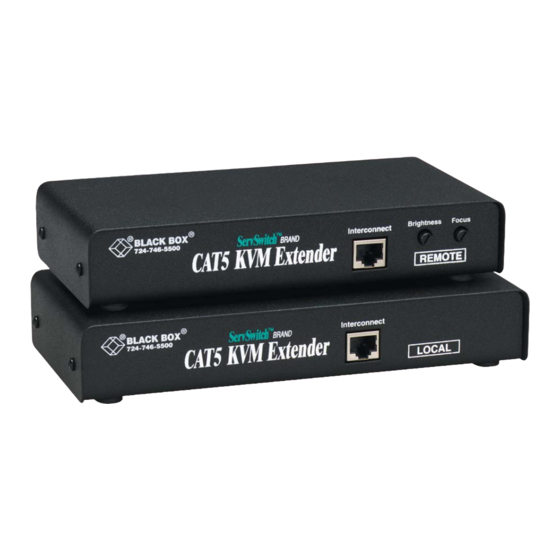

ServSwitch Brand CAT5 KVM Extenders • ServSwitch Brand CAT5 KVM Extenders (Serial)
Extend KVM signals, provide inexpensive switching,
Extend KVM signals, provide inexpensive switching,
or place serial devices—even audio devices—
or place serial devices—even audio devices—
up to 1000 feet from your PC's CPU!
up to 1000 feet from your PC's CPU!
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Black Box ACU1001A
Summary of Contents for Black Box ACU1001A
- Page 1 © 2007. All rights reserved. Black Box Corporation. ServSwitch Brand CAT5 KVM Extenders • ServSwitch Brand CAT5 KVM Extenders (Serial) Extend KVM signals, provide inexpensive switching, Extend KVM signals, provide inexpensive switching, or place serial devices—even audio devices— or place serial devices—even audio devices—...
- Page 2 CPUs. Versions for single or dual access. The Single-Access model (ACU1001A) sends your keyboard, monitor, and mouse signals nearly 1000 feet (304.8 m) from a local CPU to a remote user station. With the Dual-Access model (ACU1009A), you can also attach a local user station that contends with the remote station for CPU control.
- Page 3 9/11/2007 724-746-5500 #25560 The ACU1049A is also a switch. It enables the remote station to switch between the local CPU and remote CPU with a simple keyboard code. Its Double Private Mode locks out the second workstation, preventing conflicts. Versions for single or dual access, plus serial extension.
- Page 4 98.4 ft. (30 m) to the attached monitor Resolution (Maximum) — All units: 1280 x 1024: 393.7 ft. (120 m); 1024 x 768: 984.3 ft. (300 m); ACU1001A, ACU1009A, ACU1049A, ACU1022A, ACU1028A only: 1600 x 1280: 196.9 ft. (60 m) Serial Characteristics — ACU1002A, ACU1008A: Data rate: 9600 bps or 19.2 kbps (user-selectable);...
- Page 5 Output (isolated from ground): 9 VDC regulated, at up to 1 A, from transformer to extender Size — ACU1001A–ACU1002A, ACU1008A–ACU1009A: Local unit: 1.4"H x 8.8"W x 4"D (3.6 x 22.4 x 10.2 cm); Remote unit: 1.4"H x 7.8"W x 4"D (3.6 x 19.8 x 10.2 cm);...
- Page 6 At Black Box, we guarantee the best value and the best support. You can even consult our Technical Support Experts before you buy if you need help selecting just the right component for your application.
