JULY 2000
AC072A-R2
AC072AE-R2

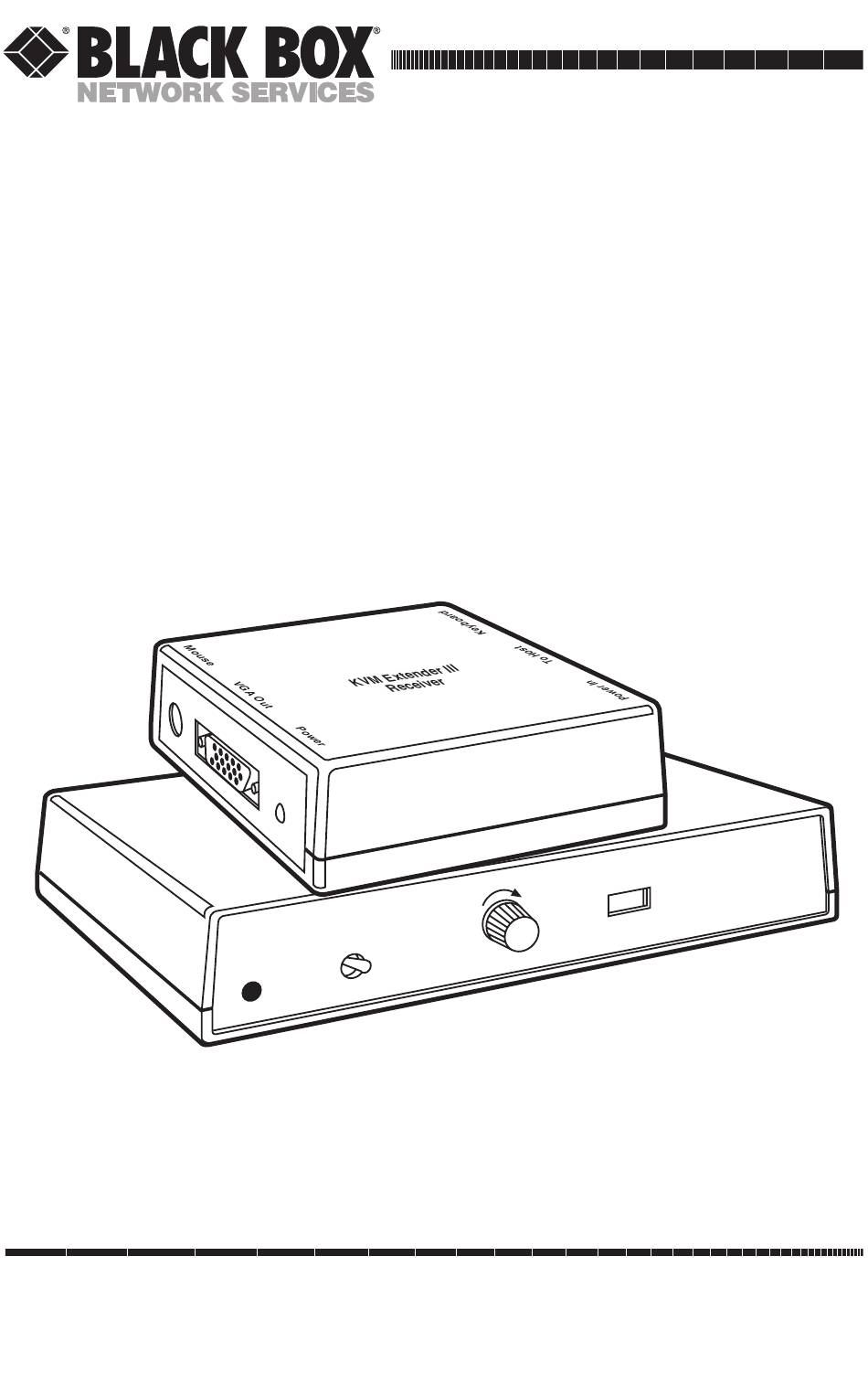

KVM Extender III
Transmitter and Receiver
r I I I
x t e n d e
K V M E
i t t e r
T r a n s m
A S E
I N C R E
S 1
L O C A L
T E
T I O N
R E M O
E N S A
C O M P
P W R
CUSTOMER
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
SUPPORT
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
INFORMATION
Web site: www.blackbox.com • E-mail: info@blackbox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KVM Extender III and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box KVM Extender III

Summary of Contents for Black Box KVM Extender III

  • Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...

  • Page 2: Federal Communications Commission

    FCC AND IC STATEMENTS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against...

  • Page 3: Instrucciones De Seguridad

    INSTRUCCIONES DE SEGURIDAD NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.

  • Page 4: Nom Statement

    NOM STATEMENT 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

  • Page 5: Kvm Extender

    KVM EXTENDER III TRADEMARKS Black Box and the logo are registered trademarks of Black Box Corporation. ® , PS/2 ® and XGA ® are registered trademarks of IBM Corporation. Windows ® is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
  • Page 6 TRADEMARKS IMPORTANT! Using the AC072A-R2 with Windows and Windows NT This product has been upgraded for compatibility with Windows NT. DIP-switch position 8 controls this feature. DIP-switch position 8 should be placed in the On (Down) position when using the product with Windows NT. This switch should be left in the Off (Up) position when used with other operating systems.

  • Page 7: Specifications

    KVM EXTENDER III 1. Specifications Host Module: Connectors — Video input: DB15HD male; PC keyboard and mouse input: 6-pin mini DIN female; Video output: DB15HD female (local monitor); Local keyboard and mouse output: 6-pin mini DIN female; Extension input/output to Remote Module: DB15 female Remote Module: Connectors —...
  • Page 8 ® mouse up to 700 feet (213 m) from the PC with the KVM Extender III. A local user can view the display simultaneously and operate a second keyboard and mouse non-simulta- neously. A keyboard emulator is built into the Host Module to maintain keyboard signals to the PC even when the remote keyboard is disconnected.

  • Page 9: Installation

    KVM EXTENDER III 3. Installation 3.1 The Installation Procedure 1. Place the Extender within 5 ft. (1.5 m) of the computer. 2. Connect the 5-ft. VGA input cable (included) from the VGA output of the computer to the connector marked “VGA IN.”...
  • Page 10 CHAPTER 3: Installation Table 3-1. Distance Limits Display Resolution Maximum Cable Length 640 x 480 700 feet (213.4 m) 800 x 600 600 feet (182.9 m) 1024 x 768 500 feet (152.4 m) 3.2 ID Bits Some computers detect the type of monitor connected to the system by reading the monitor’s ID bits and use this information to configure the operating parameters of the video port.

  • Page 11: Troubleshooting

    KVM EXTENDER III 4. Troubleshooting Problem: Power LEDs glow, but there’s no video. Solution: Disconnect all video cables. Is the LED off? Check AC power at the outlet. Check the power supply plug for proper seating. Problem: Monitor(s) dim. Solution: Make sure DIP switches 1, 2, and 3 are OFF (Up).
  • Page 12 © Copyright 1998. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
