ServSwitch
Provides Full HD and USB extension
up to 1640 feet (500 m) over multimode fiber.
Supports resolutions up to 1920 x 1200.
Customer
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
Support
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
Information
a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Fiber DVI + USB Extender EC
™
ACX310FIA
BLACK BOX
ACX310F
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box ACX310F
Summary of Contents for Black Box ACX310F
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. Support call 724-746-5500) • FREE technical support 24 hours a day, 7 days Information a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com... -
Page 2: Trademarks Used In This Manual
Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks, and ServSwitch is a trademark, of BB Technologies, Inc. HDMI is a registered trademark of HDMI Licensing, L.L.C. Windows is a registered trademark of Microsoft Corporation. -
Page 3: Instrucciones De Seguridad
FCC RFI and NOM Statements FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment... - Page 4 NOM Statement 4. Todas las instrucciones de operación y uso deben ser seguidas. 5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6.
- Page 5 NOM Statement 16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo. 17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. 18.
-
Page 6: Table Of Contents
Receiver (Remote Unit)..............12 3. Installation and Operation ................14 Cable Requirements ................14 Installing the Transmitter and the Receiver ..........14 Initial Operation ..................14 4. Enhanced Operation ..................15 5. Troubleshooting ....................18 Contacting Black Box ................18 Shipping and Packaging.................18 724-746-5500 | blackbox.com Page 6... -
Page 7: Specifications
(1) SFP cage, LC connectors, multimode, (1) barrel connector for power; ACX310FIA Transmitter also includes: (2) 3.5-mm bidirectional audio connectors; ACX310F Receiver: (1) DVI-I output (physical connector supports DVI-D only), (4) USB Type A F, (1) SFP cage, LC connectors, multimode, (1) barrel connector for power;... - Page 8 Chapter 1: Specifications 1. Technical Specifications (continued) Indicators Each unit (Transmitter or Receiver): (1) Power/Online LED Environment Temperature Tolerance: Operating: 32 to 113° F (0 to 45° C); Storage: -4 to 158° F (-20 to +70° C); Operating Humidity: 80%, noncondensing Altitude 10,000 feet maximum Power...
-
Page 9: Overview
- Bidirectional audio/microphone. - VGA/DVI support. 2.3 What’s Included Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • (1) transmitter • (1) receiver • (1) DVI-I cable •... -
Page 10: Hardware Description

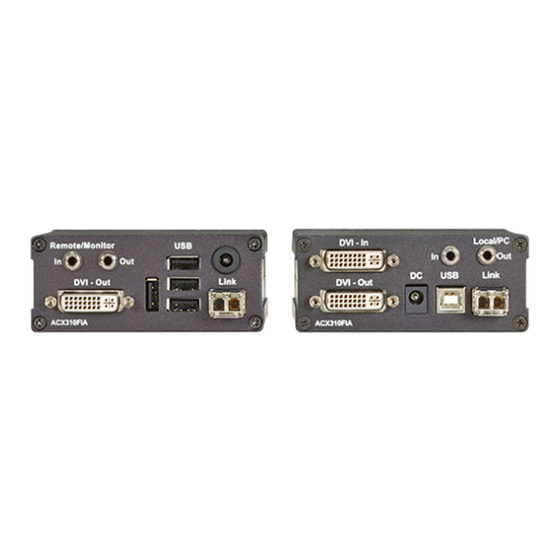

2.4 Hardware Description 2.4.1 Transmitter (Local Unit) Front Panel The transmitter‘s (ACX310F or ACX310FIA) front panel is blank except for a Power Status LED, which is described in Table 2-1. Back Panel The transmitter’s (ACX310F or ACX310FIA) back panel is shown in Figures 2-1 and 2-2. - Page 11 Chapter 2: Overview Table 2-1. Transmitter’s components. Number Component Description Power Status LED (not shown, Lights when power to the located on the front panel transmitter is on. of the transmitter) (1) DVI connector Connects to the PC. (1) DVI connector Connects to a local monitor.
-
Page 12: Receiver (Remote Unit)
The receiver’s front panel is blank except for a Power Status LED, which is described in Table 2-2. Back Panel The receiver’s back panel is shown in Figures 2-3 and 2-4. Table 2-2 describes its components. Figure 2-3. ACX310F receiver’s back panel. Figure 2-4. ACX310FIA receiver’s back panel. 724-746-5500 | blackbox.com Page 12... - Page 13 Chapter 2: Overview Table 2-2. Receiver’s components. Number Component Description Power Status LED (not shown, Lights when power to the located on the front panel of receiver is on. the receiver) (1) DVI connector Connects to DVI monitor. Link to keyboard/mouse and two (4) USB Type A connectors USB peripheral devices.
-
Page 14: Installation And Operation
Chapter 3: Installation and Operation 3. Installation and Operation 3.1 Cable Requirements Use 62.5-µm multimode fiber optic cable with the included SFPs; otherwise, use the designated cable for the SFPs you are using. 3.2 Installing the Transmitter and Receiver The extender is plug-and-play. Simply plug in the following connections as shown in Figure 3-1. -
Page 15: Enhanced Operation
Chapter 4: Enhanced Operation 4. Enhanced Operation Via an OSD in the Remote Unit, the ACX310F enables the following configuration options: 1. Updating the Extender. 2. Set Backlight. 3. Locking OSD. 4. Enabling/disabling Monitor Sync. 5. DDC options. Entering the OSD To enter the Extenders OSD, press the ScrollLock key on the attached keyboard five times quickly. - Page 16 Chapter 4: Enhanced Operation S = Set Backlight Enter 0–9. Figure 4-2. USB high-speed memory option. L = Lock Menu enabled/disabled Once enabled, you can only enter the OSD during the first 10 minutes after the remote unit powers up. It will be locked afterwards. Figure 4-3.
- Page 17 Chapter 4: Enhanced Operation I = Monitor sync enabled/disabled You can activate or deactivate the monitor synchronization. If enabled, the graphics card refresh rates are synchronized with the (Rx) attached monitors. This will optimize motion picture content applications, but might not work properly with all monitors (flicker may occur).
-
Page 18: Troubleshooting
• Package it carefully. We recommend that you use the original container. • If you are returning the unit, make sure you include everything you received with it. Before you ship for return or repair, contact Black Box to get a Return Authorization (RA) number. - Page 19 Chapter 5: Troubleshooting Table 5-1. International Contact Information. Country Web site/E-mail Phone United www.blackbox.com 724-746-5500 724-746-0746 States info@blackbox.com www.black-box.at Austria +43 1 256 98 56 +43 1 256 98 56 support@black-box.at www.blackbox.be support.nederlands@ blackbox.be Belgium support.french@ +32 2 725 85 50 +32 2 725 92 12 blackbox.be support.english@...
- Page 20 Chapter 5: Troubleshooting Table 5-1 (continued). International Contact Information. Country Web site/E-mail Phone www.blackbox.it Italy supporto.tecnico@ +39 02 27 404 700 +39 02 27 400 219 blackbox.it www.blackbox.nl Netherlands techsupport@ +31 30 241 7799 +31 30 241 4746 blackbox.nl www.blackbox norge.no Norway +47 55 300 710...
- Page 21 NOTES 724-746-5500 | blackbox.com Page 21...
- Page 22 NOTES 724-746-5500 | blackbox.com Page 22...
- Page 23 NOTES 724-746-5500 | blackbox.com Page 23...
- Page 24 724-746-5500 or blackbox.com. About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech Support available in 30 seconds or less.
