Platform Overload Recovery Message - Terex SX15015H-101 Service And Repair Manual

December 2019
Confirm the setting:
5 Start the engine from the platform controls.
6 Lift the test weight off the platform floor using a
suitable lifting device.
7 Place the test weight back onto the center of
the platform floor using a suitable lifting
device.
Result: The alarm should be off. The platform
overload indicator light should be off at the
platform controls and there should be no error
message on the LCD display at the ground
controls.
Note: There may be an 2 second delay before the
overload indicator lights and alarm turn off.
8 Add an additional 15 lbs / 6.8 kg test weight to
the original test weight to overload the
platform.
Result: The alarm should be sounding. The
platform overload indicator light should be
flashing at the platform controls and platform
overload should be displayed on the LCD
screen at the ground controls.
Note: There may be a 2 second delay before the
overload indicator lights flash and the alarm
sounds.
9 Test all machine functions from the platform
controls.
Result: All platform control functions should
not operate.
10 Turn the key switch to ground controls.
11 Test all machine functions from the ground
controls.
Result: All ground control functions should not
operate.
Part No. 1268496GT
Platform Components
2-6
Platform Overload Recovery
Message
If the ground controls LCD screen displays
OVERLOAD RECOVERY, the emergency lowering
system has been used while the platform was
overloaded.
How to Clear the Platform
Overload Recovery Message
Note: This message shall be cleared by a person
trained and qualified on the troubleshooting and
repair of this machine.

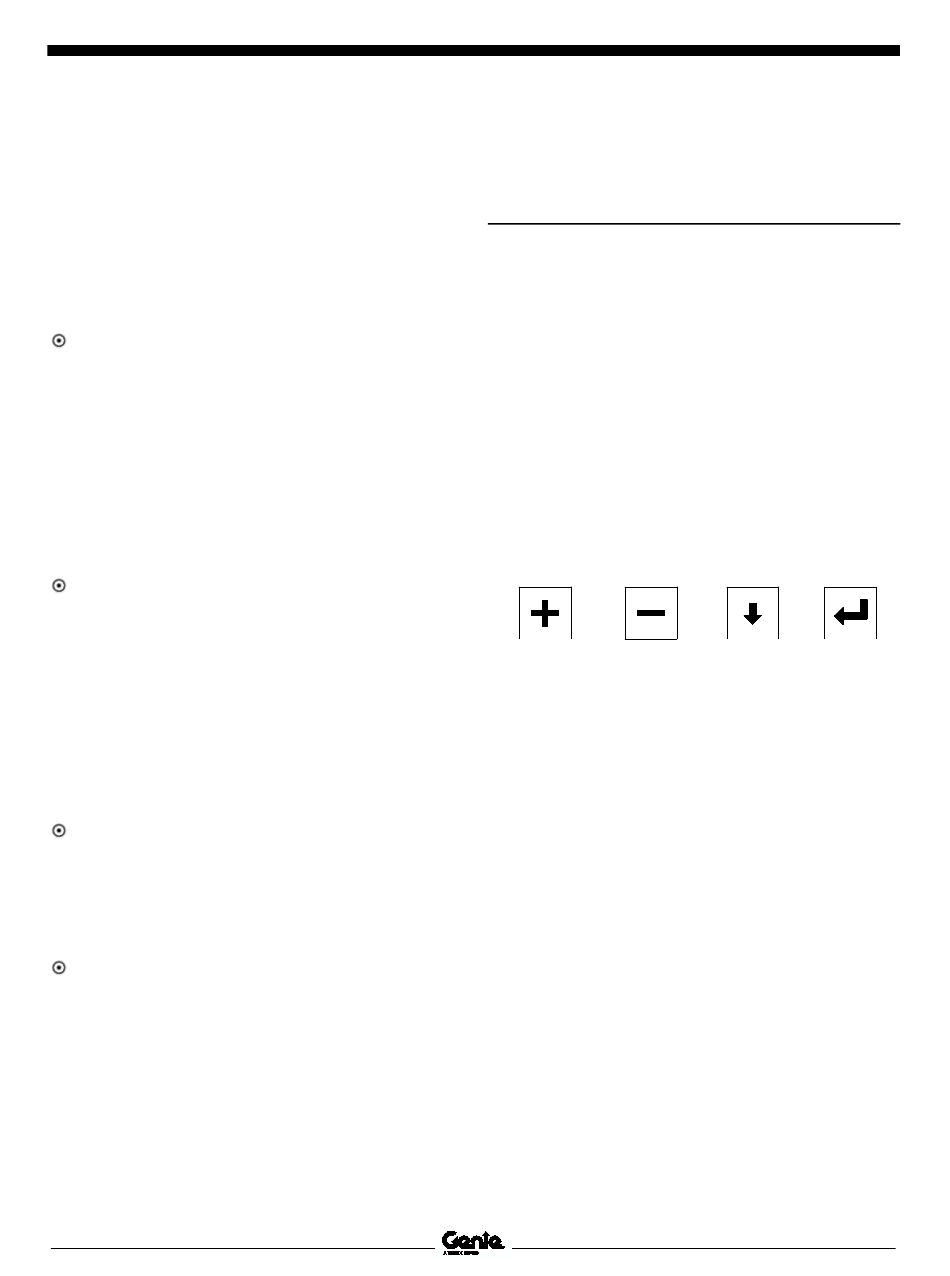

Note: Use the following chart to identify the
description of each LCD screen control button used
in this procedure.
Plus
1 Turn the key switch to the off position.
2 Press and hold the enter button on the ground
control panel while turning the key switch to
ground controls. Hold the enter button for
approximately 5 seconds.
SX ™ -150
Service and Repair Manual
Minus Previous Enter
35
