HIKVISION DS-K3B802BX Series User Manual

Swing barrier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

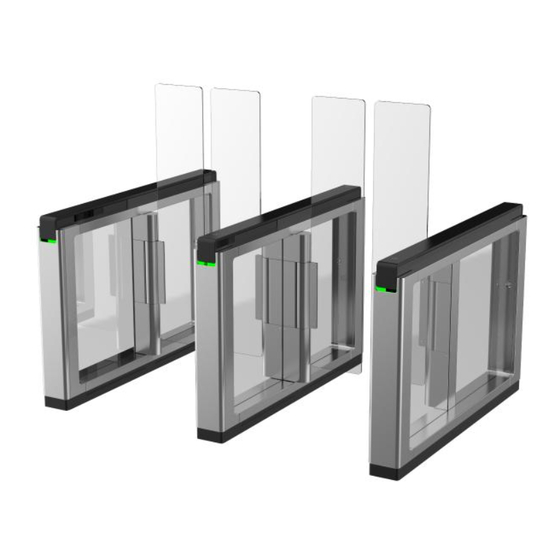

DS-K3B802BX Series Swing Barrier
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K3B802BX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K3B802BX Series

Summary of Contents for HIKVISION DS-K3B802BX Series

  • Page 1 DS-K3B802BX Series Swing Barrier User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K3B802BX Series Swing Barrier User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K3B802BX Series Swing Barrier User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 DS-K3B802BX Series Swing Barrier User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 7 DS-K3B802BX Series Swing Barrier User Manual Do not ingest battery, Chemical Burn Hazard. ● This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
  • Page 8 DS-K3B802BX Series Swing Barrier User Manual Please keep all wrappers after unpack them for future use. In case of any failure occurred, you ● need to return the device to the factory with the original wrapper. Transportation without the original wrapper may result in damage on the device and lead to additional costs.
  • Page 9 DS-K3B802BX Series Swing Barrier User Manual Available Models Product Name Model Description Swing Barrier DS-K3B802BX-L Left Pedestal DS-K3B802BX-M Middle Pedestal DS-K3B802BX-R Right Pedestal viii...

  • Page 10: Table Of Contents

    DS-K3B802BX Series Swing Barrier User Manual Contents Chapter 1 Overview ........................1 1.1 Introduction ........................... 1 1.2 Main Features ........................1 Chapter 2 System Wiring ......................3 Chapter 3 Installation ......................... 5 3.1 Disassemble before Installation ..................... 5 3.2 Install Pedestals ........................9 Chapter 4 General Wiring ......................
  • Page 11 DS-K3B802BX Series Swing Barrier User Manual 5.3 Initialize Device ........................33 Chapter 6 Activation ......................... 34 6.1 Activate via SADP ......................... 34 6.2 Activate Device via Client Software ..................35 6.3 Activate via Web Browser ....................36 Chapter 7 Operation via Web Browser ..................37 7.1 Login ............................
  • Page 12 DS-K3B802BX Series Swing Barrier User Manual 7.6.15 Prompt Schedule ....................... 59 7.6.16 Upgrade and Maintenance ..................61 7.6.17 Device Debugging ..................... 62 7.6.18 Component Status ....................63 7.6.19 Log Query ........................64 7.6.20 Certificate Management ................... 64 Chapter 8 Client Software Configuration ................... 66 8.1 Configuration Flow of Client Software .................
  • Page 13 DS-K3B802BX Series Swing Barrier User Manual 8.4.13 Import and Export Person Identify Information ............83 8.4.14 Import Person Information ..................83 8.4.15 Import Person Pictures ..................... 84 8.4.16 Export Person Information ..................84 8.4.17 Export Person Pictures ....................85 8.4.18 Get Person Information from Access Control Device ..........85 8.4.19 Move Persons to Another Organization ..............
  • Page 14 DS-K3B802BX Series Swing Barrier User Manual 8.9.1 Control Door Status ....................113 8.9.2 Check Real-Time Access Records ................114 Appendix A. Tips for Scanning Fingerprint ................116 Appendix B. DIP Switch ......................118 B.1 DIP Switch Description ....................... 118 B.2 DIP Switch Corresponded Functions .................. 118 Appendix C.

  • Page 15: Chapter 1 Overview

    DS-K3B802BX Series Swing Barrier User Manual Chapter 1 Overview 1.1 Introduction The swing barrier with two barriers and 24 pair of IR lights is designed to detect unauthorized entrance or exit. By adopting the swing barrier integrated with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc.
  • Page 16 DS-K3B802BX Series Swing Barrier User Manual Bidirectional (Entering/Exiting) lane ● The barrier opening and closing speed can be configured according to the visitor flow. The barrier will be locked or stop working when people are nipped ● Anti-forced-accessing ● The barrier will be locked automatically without open-barrier signal.

  • Page 17: Chapter 2 System Wiring

    DS-K3B802BX Series Swing Barrier User Manual Chapter 2 System Wiring The preparation before installation and wiring. Steps 1. Draw a central line on the installation surface of the left or right pedestal. 2. Draw other parallel lines for installing the other pedestals.
  • Page 18 DS-K3B802BX Series Swing Barrier User Manual Note High voltage: AC power input ● Low voltage: interconnecting cables ● The supplied interconnecting cables are 5.5 m in length. ● The suggested inner diameter of the low voltage conduit is larger than 30 mm.

  • Page 19: Chapter 3 Installation

    DS-K3B802BX Series Swing Barrier User Manual Chapter 3 Installation 3.1 Disassemble before Installation Before installation, you should disassemble the pedestal and remove some screws. Before You Start Keep the disassembled components and screws. ● You should prepare the following tools to disassemble the pedestal: 1. Pedestal Key (supplied); 2.
  • Page 20 DS-K3B802BX Series Swing Barrier User Manual 2. Use the Allen wretch (4 mm) to loosen the 2 screws (M5 × 25) at the top of the device and remove the components carefully. Figure 3-2 Front/Back Component Screw 3. Use the Allen wretch (4 mm) to loosen the 2 screws (M5 × 12) at the front or back of the...
  • Page 21 DS-K3B802BX Series Swing Barrier User Manual Figure 3-3 Loosen Side Base Screw 4. Use the Allen wretch (2.5 mm) to loosen the 4 screws (M4 × 8) and remove the motor bottom cover.
  • Page 22 DS-K3B802BX Series Swing Barrier User Manual Figure 3-4 Motor Bottom Cover...

  • Page 23: Install Pedestals

    DS-K3B802BX Series Swing Barrier User Manual 3.2 Install Pedestals Before You Start Prepare for the installation tools, check the device and the accessories, and clear the installation base. Steps Note The device should be installed on the concrete surface or other flat non-flammable surfaces.

  • Page 24: Chapter 4 General Wiring

    DS-K3B802BX Series Swing Barrier User Manual Chapter 4 General Wiring 4.1 Components Introduction By default, basic components of the turnstile are connected well. The pedestals can communicate by wiring the interconnecting cables. And the turnstile supports wiring the AC electric supply for the whole system's power supply.
  • Page 25 DS-K3B802BX Series Swing Barrier User Manual Figure 4-1 Components Diagram The picture displayed below describes the serial port on the entrance and exit direction.
  • Page 26 DS-K3B802BX Series Swing Barrier User Manual Figure 4-2 Serial Port The picture displayed below describes the IR sending/receiving module and their corresponding number on the pedestal.

  • Page 27: Wiring Electric Supply

    DS-K3B802BX Series Swing Barrier User Manual Figure 4-3 IR Sending/Receiving Module Position Note Standing at the entrance position in the lane, the IR modules on your left are the IR sending modules, the ones on your right are the IR receiving modules.
  • Page 28 DS-K3B802BX Series Swing Barrier User Manual Note The cable bare part should be no more than 8 mm. It is suggested that you can immerse the ● bare part into the liquid tin. If possible, wear an insulation cap at the end of the bare cable.

  • Page 29: Wire Interconnecting Cable

    DS-K3B802BX Series Swing Barrier User Manual 4.3 Wire Interconnecting Cable You should use interconnecting cables to connect the main lane board and the sub lane board for components communication. The picture displayed below describes the cable hole's position on the pedestals.

  • Page 30: Terminal Description

    DS-K3B802BX Series Swing Barrier User Manual Figure 4-5 Network Switch Position 2. Lead out 12 V power supply from the main switch and connect it to the network switch's power interface. 3. Connect the network cable with the network switch.

  • Page 31: Main Lane Control Board Terminal Description

    DS-K3B802BX Series Swing Barrier User Manual 4.5.1 Main Lane Control Board Terminal Description The main lane control board contains power supply interface, supercapacitor interface, brake interface, motor drive interface, light board interface, motor encoder interface, door open position detection interface, debug port, lane communication interface, interconnecting interface, and DIP switch (reserved).

  • Page 32: Access Control Board Terminal Description

    DS-K3B802BX Series Swing Barrier User Manual 4.5.3 Access Control Board Terminal Description Access control board is mainly used for authority identification in places with high security levels such as public security or judicial place, external device accessing, and communication with the upper platform and lane controller.
  • Page 33 DS-K3B802BX Series Swing Barrier User Manual Note RS-485A corresponds to UART 5 on web and is for QR code scanner connection at entrance by ● default; RS-485C corresponds to UART 7 on web and is for card reader connection at entrance by default.

  • Page 34: Main Extended Interface Board Terminal Description

    DS-K3B802BX Series Swing Barrier User Manual Figure 4-9 Wring Diagram of BUS3 Interface Note RS-232A corresponds to UART 1 on web. 4.5.4 Main Extended Interface Board Terminal Description The main extended interface board contains the Wiegand/exit button interface and communication interface.
  • Page 35 DS-K3B802BX Series Swing Barrier User Manual Figure 4-10 Main Optional Board Terminal...

  • Page 36: Sub Extended Interface Board Terminal Description

    DS-K3B802BX Series Swing Barrier User Manual 4.5.5 Sub Extended Interface Board Terminal Description Figure 4-11 Sub Extended Interface Board Note RS-485B corresponds to UART 6 on web and is for QR code scanner connection at exit by default. ● RS-485D corresponds to UART 4 on web and is for card reader connection at exit by default.

  • Page 37: Card Reader Board Terminal Description

    DS-K3B802BX Series Swing Barrier User Manual 4.5.6 Card Reader Board Terminal Description The card reader board can be connected to the access control board via RS-485 interface. Figure 4-12 Card Reader Board 4.5.7 Lane Status Indicator Board Appearance Lane status indicator board is shown as follows.
  • Page 38 DS-K3B802BX Series Swing Barrier User Manual Set both DIP switches on the lane status indicator board at entrance to "ON" side: Figure 4-14 DIP Switch for Entrance Entrance Set both DIP switches on the lane status indicator board at exit to "1" side:...

  • Page 39: Wiring Diagram

    DS-K3B802BX Series Swing Barrier User Manual Figure 4-16 Lane Status Indicator Board Wiring 4.5.8 Wiring Diagram The wiring diagram of components and peripherals. Figure 4-17 General Wiring...

  • Page 40: Wiring

    DS-K3B802BX Series Swing Barrier User Manual Note The supplied 2 interconnecting cables need connecting on-site: ● 1. Communication cable for connection between main lane control board and sub lane control board. The cable is 5.5 m in length and put inside the package of the right/middle pedestal.

  • Page 41: Face Recognition Module Wiring

    DS-K3B802BX Series Swing Barrier User Manual Note There are four RS-485 interfaces, which are for connecting ID card reader, IC card reader, QR ● code scanner, fingerprint and card reader, card recycler, text screen, fingerprint reader, and face recognition terminal. Take the wiring of RS-485 card reader as an example.
  • Page 42 DS-K3B802BX Series Swing Barrier User Manual Figure 4-19 Face Recognition Module Wiring (Exit)

  • Page 43: Chapter 5 Device Settings

    DS-K3B802BX Series Swing Barrier User Manual Chapter 5 Device Settings After installation and wiring completed, you should set the barriers closed position (study mode) before entering the working mode. You can also set the test mode, normal mode, passing mode and memory mode, pair the keyfob, or initialize the hardware by setting the DIP switch on the access control board.
  • Page 44 DS-K3B802BX Series Swing Barrier User Manual Figure 5-1 DIP Switch Location Figure 5-2 Study Mode 2. Adjust the closed position of the barrier. 3. Power on the device. The device will remember the current position (closed position) automatically. 4. Power off the device.

  • Page 45: Pair Keyfob

    DS-K3B802BX Series Swing Barrier User Manual Figure 5-3 Normal Mode 6. Power on the device again. Note For details about the DIP switch value and meaning, see DIP Switch Description. The barrier will open automatically and turns back to the closed position. At this circumstance, the device enters the normal mode.
  • Page 46 DS-K3B802BX Series Swing Barrier User Manual Figure 5-4 DIP Switch Location Figure 5-5 Enable Keyfob Paring Mode 3. Power on the turnstile and it will enter the keyfob pairing mode. 4. Hold the Close button for more than 10 seconds.

  • Page 47: Initialize Device

    DS-K3B802BX Series Swing Barrier User Manual 6. Optional: Go to System → User → Keyfob User on the remote control page of the client software to delete the keyfob. 5.3 Initialize Device Steps 1. Hold the initialization button on the access control board for 5 s.

  • Page 48: Chapter 6 Activation

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 49: Activate Device Via Client Software

    DS-K3B802BX Series Swing Barrier User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.

  • Page 50: Activate Via Web Browser

    DS-K3B802BX Series Swing Barrier User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 51: Chapter 7 Operation Via Web Browser

    DS-K3B802BX Series Swing Barrier User Manual Chapter 7 Operation via Web Browser 7.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. Login via Web Browser Enter the device IP address in the address bar of the web browser and press Enter to enter the login page.

  • Page 52: Administrator Settings

    DS-K3B802BX Series Swing Barrier User Manual 7.2.2 Administrator Settings Steps 1. Click in the top right of the web page to enter the wizard page. After time settings, you can click Next to enter the Administrator Settings page. 2. Enter the employee ID and name of the administrator.

  • Page 53: Person Management

    DS-K3B802BX Series Swing Barrier User Manual The door is opened/closed/remaining open/remaining closed. Real-Time Event You can view the event Employee ID, Name, Card No., Event Type, Time, and Operation. You can also click View More to enter the event search page.
  • Page 54 DS-K3B802BX Series Swing Barrier User Manual Figure 7-2 Add Person Add Basic Information Click Person Management → Add to enter the Add Person page. Add the person's basic information, including the employee ID, the person's name, person type,etc. If you select Visitor as the person type, you can set the visit times.

  • Page 55: Search Event

    DS-K3B802BX Series Swing Barrier User Manual Note Up to 50 cards can be added. Click Save to save the settings. Authentication Settings Click Person Management → Add to enter the Add Person page. Set Authentication Type as Same as Device or Custom.
  • Page 56 DS-K3B802BX Series Swing Barrier User Manual Figure 7-3 Search Event Select the event type and enter the search conditions, including the employee ID, name, card No., start time, and end time, and click Search. The results will be displayed on the right panel.

  • Page 57: Configuration

    DS-K3B802BX Series Swing Barrier User Manual 7.6 Configuration 7.6.1 View Device Information Click Configuration → System → System Settings → Basic Information to enter the configuration page. You can view the device name, language, model, serial No., version, IO input, IO output, and local RS-485 number.

  • Page 58: Set Dst

    DS-K3B802BX Series Swing Barrier User Manual You should set the NTP server's IP address, port No., and interval. Manual By default, the device time should be synchronized manually. You can set the device time manually or check Sync. with Computer Time to synchronize the device time with the computer's time.

  • Page 59: View Device Arming/Disarming Information

    DS-K3B802BX Series Swing Barrier User Manual Go to Configuration → User Management → Online Users to view the list of online users. 7.6.6 View Device Arming/Disarming Information View device arming type and arming IP address. Go to Configuration → User Management → Arming/Disarming Information .
  • Page 60 DS-K3B802BX Series Swing Barrier User Manual If you enable DHCP, the system will automatically allocate the IPv4 address, IPv4 subnet mask, the IPv4 default gateway preferred DNS server and alternate DNS server. DNS Server Set the preferred DNS server and the Alternate DNS server according to your actual need.

  • Page 61: Set Audio Parameters

    DS-K3B802BX Series Swing Barrier User Manual Set the HTTPS for accessing the browser. Certificate is required when accessing. HTTP Listening The device can send alarm information to the event alarm IP address or domain name via HTTP protocol/HTTPS protocol. Edit the event alarm IP address or domain name, URL, port, and protocol.

  • Page 62: Access Control Settings

    DS-K3B802BX Series Swing Barrier User Manual - If you choose Linkage Type as Card Linkage, you need to enter the card No. and select the card reader. - If you choose Linkage Type as Employee ID Linkage, you need to enter the employee ID and select the card reader.
  • Page 63 DS-K3B802BX Series Swing Barrier User Manual Figure 7-8 Set Authentication Parameters Click Save to save the settings after the configuration. Terminal Choose Entrance or Exit for settings. Terminal Type/Terminal Model Get terminal description. They are read-only. Enable Authentication Device Enable the authentication function.
  • Page 64 DS-K3B802BX Series Swing Barrier User Manual Communication with Controller Every When the access control device cannot connect with the card reader for longer than the set time, the card reader will turn offline automatically. Note The authentication interval value ranges from 2 s to 255 s.
  • Page 65 DS-K3B802BX Series Swing Barrier User Manual Door Remain Open Duration with First Person Set the door open duration when first person is in. After the first person is authorized, it allows multiple persons access the door or other authentication actions.
  • Page 66 DS-K3B802BX Series Swing Barrier User Manual Set Wiegand Parameters You can set the Wiegand transmission direction. Steps Note Some device models do not support this function. Refer to the actual products when configuration. 1. Click Configuration → Access Control → Wiegand Settings .

  • Page 67: Turnstile

    DS-K3B802BX Series Swing Barrier User Manual The device will not verify the person's permission, but only the person's validity period. If the person is in the validity period, the barrier will open. You can enable Verify Credential Locally. After enabling the function, the device will only verify the person's permission without the schedule template, etc.
  • Page 68 DS-K3B802BX Series Swing Barrier User Manual keyfob Set keyfob patameters. Steps 1. Click Configuration → Turnstile → Keyfob to enter the page. Figure 7-12 keyfob 2. Set Working Mode as One-to-One or One-to-Many. 3. Add keyfob. 1) Click Add and the keyfob adding window will pop up.
  • Page 69 DS-K3B802BX Series Swing Barrier User Manual Figure 7-13 IR Detector 2. Set the entrance and exit inductive mode as Single Triggered or Triggered Simultaneously. 3. Set custom IR detector mode. Enable IR Emergency Mode If some IR beams do not work properly, you can shield those IR beams to restore the lane. But this action may hit person and cause injury.
  • Page 70 DS-K3B802BX Series Swing Barrier User Manual Figure 7-14 People Counting 2. Check to enable People Counting. 3. Enable Device Offline People Counting at your actual needs. 4. Select People Counting Type as Invalid, Passing Detection or Authentication Number. 5. Optional: Click clear to clear all the people counting information.

  • Page 71: Card Settings

    DS-K3B802BX Series Swing Barrier User Manual 4. Check to enable Do Not Open Barrier When Lane is Not Clear. 5. Drag the block or enter the value to adjust the light board brightness. 6. Set the alarm buzzer beeping duration, barrier closing delay time, intrusion duration, overstaying duration and IR obstructed duration.

  • Page 72: Set Privacy Parameters

    DS-K3B802BX Series Swing Barrier User Manual Note If the peripheral card reader supports presenting EM card, the function is also supported to enable/disable the EM card function. Enable DESFire Card The device can read the data from DESFire card when enabling the DESFire card function.

  • Page 73: Prompt Schedule

    DS-K3B802BX Series Swing Barrier User Manual Fingerprint Security Level False Acceptance Rate (FAR) 1/1000 FAR 1/100000 FAR 1/1000000 FAR 3/100000 FAR 3/1000000 FAR 7.6.15 Prompt Schedule Customize the output audio content when authentication succeeded and failed. Steps 1. Click Configuration → Preference → Prompt Schedule .
  • Page 74 DS-K3B802BX Series Swing Barrier User Manual Figure 7-15 Customize Audio Content 2. Select time schedule. 3. Enable the function. 4. Set the appellation. 5. Set the time period when authentication succeeded. 1) Click Add Time Duration. 2) Set the time duration.

  • Page 75: Upgrade And Maintenance

    DS-K3B802BX Series Swing Barrier User Manual Note If authentication is succeeded in the configured time duration, the device will broadcast the configured content. 3) Set the audio content. If you choose TTS, you need to set the language and enter the prompt content of authentication success.

  • Page 76: Device Debugging

    DS-K3B802BX Series Swing Barrier User Manual Reboot Device Click Maintenance and Security → Maintenance → Restart . Click Restart to reboot the device. Upgrade Click Maintenance and Security → Maintenance → Upgrade . Select an upgrade type from the drop-down list. Click and select the upgrade file from your local PC.

  • Page 77: Component Status

    DS-K3B802BX Series Swing Barrier User Manual To raise network security, disable SSH service. The configuration is only used to debug the device for the professionals. Print Log You can select a component from drop-down list and click Export to export log.

  • Page 78: Log Query

    DS-K3B802BX Series Swing Barrier User Manual You can view the status of the event input/output, alarm input/output and fire alarm. Other Status You can view the status of the barrier and the keyfob receiving module. 7.6.19 Log Query You can search and view the device logs.
  • Page 79 DS-K3B802BX Series Swing Barrier User Manual Install Other Authorized Certificate If you already has an authorized certificate (not created by the device), you can import it to the device directly. Steps 1. Go to Maintenance and Security → Security → Certificate Management .

  • Page 80: Chapter 8 Client Software Configuration

    DS-K3B802BX Series Swing Barrier User Manual Chapter 8 Client Software Configuration 8.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 8-1 Flow Diagram of Configuration on Client Software 8.2 Device Management...

  • Page 81: Add Device

    DS-K3B802BX Series Swing Barrier User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 8.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol.
  • Page 82 DS-K3B802BX Series Swing Barrier User Manual you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

  • Page 83: Reset Device Password

    DS-K3B802BX Series Swing Barrier User Manual Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin. Password Enter the device password.

  • Page 84: Manage Added Devices

    DS-K3B802BX Series Swing Barrier User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 85: Group Management

    DS-K3B802BX Series Swing Barrier User Manual Get Events from Device Check one device, and click Get Events from Device to synchronize events. For details, refer to . Export Device Click Export Device, set the saving path and select device type to export the device details (such as device type, IP address, and port No.) to your...

  • Page 86: Import Resources To Group

    DS-K3B802BX Series Swing Barrier User Manual 8.3.2 Import Resources to Group You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the added group in a batch. Before You Start Add a group for managing devices. Refer to Add Group .

  • Page 87: Configure Basic Information

    DS-K3B802BX Series Swing Barrier User Manual Delete Hover the mouse on an added organization and click to delete it. Organization Note The lower-level organizations will be deleted as well if you delete an ● organization. Make sure there is no person added under the organization, or the ●...
  • Page 88 DS-K3B802BX Series Swing Barrier User Manual 4. Click Settings to enter the Settings page. 5. Select Local as the card issuing mode. Figure 8-2 Issue a Card by Local Mode 6. Set other related parameters. Card Enrollment Station Select the model of the connected card enrollment station.

  • Page 89: Upload A Face Photo From Local Pc

    DS-K3B802BX Series Swing Barrier User Manual This field is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E. Select the card type as EM card or Mifare card according to the actual card type. Buzzing Enable or disable the buzzing when the card number is read successfully.

  • Page 90: Take A Photo Via Client

    DS-K3B802BX Series Swing Barrier User Manual - Click Add and New to add the person and continue to add other persons . 8.4.5 Take a Photo via Client When adding a person, you can take a photo of the her/him via the client and set this photo as the person's profile.

  • Page 91: Collect Face Via Access Control Device

    DS-K3B802BX Series Swing Barrier User Manual Figure 8-3 Take a Photo via Client 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons.

  • Page 92: Collect Fingerprint Via Client

    DS-K3B802BX Series Swing Barrier User Manual 2. Select an organization in the organization list to add the person and click Add. Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information .

  • Page 93: Collect Fingerprint Via Access Control Device

    DS-K3B802BX Series Swing Barrier User Manual 5. Select the model of the connected fingerprint recorder. Note If the fingerprint recorder is DS-K1F800-F, you can click Settings to select the COM the fingerprint recorder connects to. 6. Collect the fingerprint. 1) Click Start.

  • Page 94: Configure Access Control Information

    DS-K3B802BX Series Swing Barrier User Manual - Click Add and New to add the person and continue to add other persons . Note Once the fingerprint is added, the fingerprint type cannot be changed. 8.4.9 Configure Access Control Information When adding a person, you can set her/his access control information, such as binding an access control group with the person, configuring PIN code, setting the person as a visitor, a blocklist person, or a super user, etc.

  • Page 95: Customize Person Information

    DS-K3B802BX Series Swing Barrier User Manual Super User If the person is set as a super user, he/she will have authorization to access all the doors/ floors and will be exempted from remaining closed restrictions, all anti-passback rules, and first person authorization.

  • Page 96: Configure Resident Information

    DS-K3B802BX Series Swing Barrier User Manual 3) Enter the property name. 4) Click OK. 3. Set the custom information when adding a person. 1) Select an organization in the organization list to add the person and click Add. Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information .

  • Page 97: Import And Export Person Identify Information

    DS-K3B802BX Series Swing Barrier User Manual Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information . 3. In the Additional Information panel, enter the additional information of the person, including person's ID type, ID No., job title, etc., according to actual needs.

  • Page 98: Import Person Pictures

    DS-K3B802BX Series Swing Barrier User Manual 8.4.15 Import Person Pictures After importing face pictures for the added persons to the client, the persons in the pictures can be identified by an added face recognition terminal. You can either import person pictures one by one, or import multiple pictures at a time according to your need.

  • Page 99: Export Person Pictures

    DS-K3B802BX Series Swing Barrier User Manual 8.4.17 Export Person Pictures You can export face picture file of the added persons and save in your PC. Before You Start Make sure you have added persons and their face pictures to an organization.

  • Page 100: Move Persons To Another Organization

    DS-K3B802BX Series Swing Barrier User Manual Note Up to 2,000 persons and 5,000 cards can be imported. The person information, including person details, person's fingerprint information (if configured), and the linked cards (if configured), will be imported to the selected organization.

  • Page 101: Report Card Loss

    DS-K3B802BX Series Swing Barrier User Manual 8.4.21 Report Card Loss If the person lost his/her card, you can report the card loss so that the card's related access authorization will be inactive. Steps 1. Enter Person module. 2. Select the person you want to report card loss for and click Edit to open the Edit Person window.

  • Page 102: Configure Schedule And Template

    DS-K3B802BX Series Swing Barrier User Manual Serial Port It is only available when the model is DS-K1F100-M. Select the COM the card enrollment station connects to. Buzzing Enable or disable the buzzing when the card number is read successfully. Card No. Type Select the type of the card number according to actual needs.

  • Page 103: Add Template

    DS-K3B802BX Series Swing Barrier User Manual Note Up to 16 holiday periods can be added to one holiday. 1) Click Add in the Holiday List field. 2) Drag the cursor to draw the time duration, which means in that duration of time, the configured access group is activated.

  • Page 104: Set Access Group To Assign Access Authorization To Persons

    DS-K3B802BX Series Swing Barrier User Manual The access authorization is invalid in each day of the week and it has no holiday. 2. Click Add on the left panel to create a new template. 3. Create a name for the template.
  • Page 105 DS-K3B802BX Series Swing Barrier User Manual Before You Start Add person to the client. ● Add access control device to the client and group access points. For details, refer to Group ● Management . Add template. ● Steps When the access group settings are changed, you need to apply the access groups to the devices again to take effect.
  • Page 106 DS-K3B802BX Series Swing Barrier User Manual Figure 8-5 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 107: Configure Advanced Functions

    DS-K3B802BX Series Swing Barrier User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 108 DS-K3B802BX Series Swing Barrier User Manual Steps 1. Click Access Control → Advanced Function → Device Parameter . Note If you can find Device Parameter in the Advanced Function list, Hover the cursor on the Advanced Function, and then Click to select the Device Parameter to be displayed.
  • Page 109 DS-K3B802BX Series Swing Barrier User Manual 2. Select an access control device on the left panel, and then click to show the doors or floors of the selected device. 3. Select a door or floor to show its parameters on the right page.
  • Page 110 DS-K3B802BX Series Swing Barrier User Manual Note The door's status duration settings will be copied to the selected door(s) as well. Configure Parameters for Card Reader After adding the access control device, you can configure its card reader parameters. Steps 1.
  • Page 111 DS-K3B802BX Series Swing Barrier User Manual When you inputting the password on the card reader, if the interval between pressing two digits is larger than the set value, the digits you pressed before will be cleared automatically. Tampering Detection Enable the anti-tamper detection for the card reader.
  • Page 112 DS-K3B802BX Series Swing Barrier User Manual Steps 1. Click Access Control → Advanced Function → Device Parameter to enter Parameter Settings page. 2. In the device list on the left, select a lane controller and you can edit the lane controller's parameters on the right.

  • Page 113: Configure Remaining Open/Closed

    DS-K3B802BX Series Swing Barrier User Manual Lane Length The width of the lane. You can set the lane width. Note The lane width will affect the device working. Set a correct lane width or the barrier may not open. Do Not Open Barrier When Lane is Not Clear If there is someone or something in the lane, the gate will not open even if the credential is authenticated.

  • Page 114: Configure Multi-Factor Authentication

    DS-K3B802BX Series Swing Barrier User Manual Copy to Whole Select one duration on the time bar, click Copy to Whole Week to copy all Week the duration settings on this time bar to other week days. Delete Selected Select one duration on the time bar, click Delete Selected to delete this duration.
  • Page 115 DS-K3B802BX Series Swing Barrier User Manual 3. Add a person/card group for the access control device. 1) Click Add on the right panel. 2) Create a name for the group as desired. 3) Specify the start time and end time of the effective period for the person/card group.
  • Page 116 DS-K3B802BX Series Swing Barrier User Manual Figure 8-7 Remotely Open Door Note You can check Offline Authentication to enable the super password authentication when the access control device is disconnected with the client. Local Authentication and Super Password Authentication by the access control device and by the super password.

  • Page 117: Configure Custom Wiegand Rule

    DS-K3B802BX Series Swing Barrier User Manual 8.7.4 Configure Custom Wiegand Rule Based on the knowledge of uploading rule for the third party Wiegand, you can set multiple customized Wiegand rules to communicate between the device and the third party card readers.

  • Page 118: Configure Card Reader Authentication Mode And Schedule

    DS-K3B802BX Series Swing Barrier User Manual Figure 8-8 Set Output Transformation Rule 2) Select rules on the left list. The selected rules will be added to the right list. 3) Optional: Drag the rules to change the rule order. 4) Click OK.
  • Page 119 DS-K3B802BX Series Swing Barrier User Manual Figure 8-9 Select Card Reader Authentication Mode Note PIN refers to the PIN code set to open the door. Refer to Configure Access Control Information . 2) Check the modes in the Available Mode list and they will be added to the selected modes list.

  • Page 120: Configure First Person In

    DS-K3B802BX Series Swing Barrier User Manual Figure 8-10 Set Authentication Modes for Card Readers 6. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week. 7. Optional: Click Copy to to copy the settings to other card readers.

  • Page 121: Configure Anti-Passback

    DS-K3B802BX Series Swing Barrier User Manual The door remains open for the configured time duration after the first person is authorized until the remain open duration ends. If you select this mode, you should set the remain open duration. Note The remain open duration should be between 0 and 1440 minutes.

  • Page 122: Configure Device Parameters

    DS-K3B802BX Series Swing Barrier User Manual 2. Select an access control device on the left panel. 3. Select a card reader as the beginning of the path in the First Card Reader field. 4. Click of the selected first card reader in the Card Reader Afterward column to open the select card reader dialog.

  • Page 123: Configure Linkage Actions For Access Control

    DS-K3B802BX Series Swing Barrier User Manual The configured parameters will be applied to the device automatically. ● When you change the working mode or connection mode, the device will reboot ● automatically. Enable M1 Card Encryption M1 card encryption can improve the security level of authentication.

  • Page 124: Configure Device Actions For Access Event

    DS-K3B802BX Series Swing Barrier User Manual Before You Start Add access control device to the client. Steps 1. Click Event Configuration → Access Control Event . The added access control devices will display in the device list. 2. Select a resource (including device, alarm input, door, and card reader) from the device list.

  • Page 125: Configure Device Actions For Card Swiping

    DS-K3B802BX Series Swing Barrier User Manual 2. Select the access control device from the list on the left. 3. Click Add button to add a new linkage. 4. Select the event source as Event Linkage. 5. select the event type and detailed event to set the linkage.

  • Page 126: Door Control

    DS-K3B802BX Series Swing Barrier User Manual An event-related picture will be captured when the selected event happens. Note The device should support recording. Alarm Output The alarm output will be triggered for notification. Alarm Input Arm or disarm the alarm input.

  • Page 127: Control Door Status

    DS-K3B802BX Series Swing Barrier User Manual 8.9.1 Control Door Status You can control the status for the door(s), including unlock door, locking door, remaining the door unlock, remaining the door locked, remain all unlocked, etc. Before You Start Add person and assign access authorization to designed person, and person will have the access ●...

  • Page 128: Check Real-Time Access Records

    DS-K3B802BX Series Swing Barrier User Manual All doors in the group will be closed and locked. No person can access the doors even if he/she has the authorized credentials, except the super users. Capture Capture a picture manually. Note The Capture button is available when the device supports capture function. The picture is saved in the PC running the client.
  • Page 129 DS-K3B802BX Series Swing Barrier User Manual Note You can right click the column name of access event table to show or hide the column according to actual needs. 2. Optional: Select an access point group from the drop-down list in the upper-right corner to show the real time access records of the selected group.

  • Page 130: Appendix A. Tips For Scanning Fingerprint

    DS-K3B802BX Series Swing Barrier User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 131 DS-K3B802BX Series Swing Barrier User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

  • Page 132: Appendix B. Dip Switch

    DS-K3B802BX Series Swing Barrier User Manual Appendix B. DIP Switch B.1 DIP Switch Description The DIP switch is on the access control board. No.1 and No 2 is from the low bit to the high bit. Figure B-1 DIP Switch When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off.

  • Page 133: Appendix C. Error Code Description

    DS-K3B802BX Series Swing Barrier User Manual Appendix C. Error Code Description The swing barrier will display the error code on the seven-segment display if error occurred. Refer to the table below to find the description of each number. Error Reason...
  • Page 134 DS-K3B802BX Series Swing Barrier User Manual Error Reason Code Error Reason Code The Sixteenth IR Beam Motor Exception Triggered The Seventeenth IR Beam Extended Interface Board Triggered Offline (If the board is not installed, the error code of "59" will appear but the device...

  • Page 135: Appendix D. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure D-2 Device Command...
  • Page 136 UD31575B...
