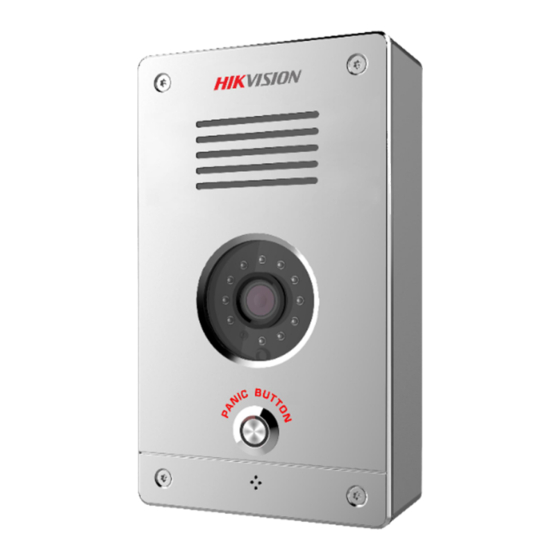

HIKVISION DS-PEA22-F Quick Start Manual

Panic alarm station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Panic Alarm Station
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-PEA22-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-PEA22-F

Summary of Contents for HIKVISION DS-PEA22-F

  • Page 1 Panic Alarm Station Quick Start Guide...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Panic Alarm Station Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Panic Alarm Station Quick Start Guide Applicable Models This manual is applicable to DS-PEA series panic alarm station. Model Product Panic Alarm Station DS-PEA22-F(B) Box Panic Alarm Station DS-PEA22-B(B) Pole Panic Alarm Station DS-PEA22-P(B) Symbol Conventions The symbols that may be found in this document are defined as follows.
  • Page 5 Panic Alarm Station Quick Start Guide  When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out.  Do not expose the device to high electromagnetic radiation or extremely hot, cold, dusty, or damp environments, the appropriate temperature is -40℃...

  • Page 6: Table Of Contents

    Panic Alarm Station Quick Start Guide Table of Content Chapter 1 Overview ........................1 Description ..........................1 Key Features ..........................1 Chapter 2 Structure Description ....................2 Mainboard Description ......................2 Appearance Description ......................2 2.2.1 Panic Alarm Station ......................2 2.2.2 Box Panic Alarm Station ....................

  • Page 7: Chapter 1 Overview

    Panic Alarm Station Quick Start Guide Chapter 1 Overview Description DS-PEA series of active panic alarm station supports multiple networks. It provides live view, two-way audio, and customized audio input. It supports linkage with the surrounding cameras and external lamp, sound box, etc. It helps to realize alarm aid in emergency. Key Features ...

  • Page 8: Chapter 2 Structure Description

    Panic Alarm Station Quick Start Guide Chapter 2 Structure Description Mainboard Description Mainboard of panic alarm station Appearance Description...

  • Page 9: Box Panic Alarm Station

    Panic Alarm Station Quick Start Guide Panel Description Description Loudspeaker IR Light Camera Light Sensor Panic Alarm Button Microphone One-touch Panic Alarm Station Panel Description Description Audible Alarm Lamp Loudspeaker IR Light Camera Light Sensor Panic Alarm Button Microphone Case Panic Alarm Station...

  • Page 10: Pole Panic Alarm Station

    Panic Alarm Station Quick Start Guide Panel Description Description Audible Alarm Lamp Microphone IR Light Camera Light Sensor Loudspeaker Panic Alarm Button Pole Panic Alarm Station Installation and Connections  The product is suitable for mounting on concrete or other non-combustible surface only. ...

  • Page 11: Power Supply Wiring

    Panic Alarm Station Quick Start Guide Power Supply Wiring Network Wiring...

  • Page 12: Audible And Visual Alarm Wiring

    Panic Alarm Station Quick Start Guide Audible and Visual Alarm Wiring Alarm Input Wiring (Normally Open)
  • Page 13 Panic Alarm Station Quick Start Guide Pole Panic Alarm Station (without Speed Dome Bracket) Dimension Lock 260 mm 450 mm Front View Side View Top View...
  • Page 14 Panic Alarm Station Quick Start Guide Pole Panic Alarm Station (with Speed Dome Bracket)Dimension Lock 260 mm 450 mm Front View Side View Top View...
  • Page 15 Panic Alarm Station Quick Start Guide Pole Panic Alarm Station Grounding Cage Dimension(without Speed Dome Bracket) 4 – M20 C25 Concrete Conduit Diameter ≥30mm Reinforced Rebar Foundation Bolt Rubble 420mm 370mm 20mm Basement Basement Weld ⌀8Rebar with Foundation Bolt 150 mm 150 mm 700 mm 450 mm...
  • Page 16 Panic Alarm Station Quick Start Guide Pole Panic Alarm Station Grounding Cage Dimension (with Speed Dome Bracket) 4-M20 C25 Concrete Conduit Diameter ≥30mm Reinforced Rebar Foundation Bolt Rubble 370 mm M20 420 mm Basement Basement Weld ⌀8Rebar with Foundation Bolt 150 mm 150 mm 700 mm...

  • Page 17: Chapter 3 Activating The Control Panel

    Before You Start ● Get the SADP software from the supplied disk or the official website http://www.hikvision.com/en/, and install the SADP according to the prompts. ● The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 18: Activate Device Via Client Software

    Before You Start ● Get the iVMS-4200 client software from the supplied disk or the official website http://www.hikvision.com/en/. Install the software by following the prompts. ● Get the Guarding Vision client software from the supplied disk. Install the software by following the prompts.

  • Page 19: Appendix A User Manual

    Panic Alarm Station Quick Start Guide Appendix A User Manual Scan the QR code to get the User Manual:...
  • Page 20 Panic Alarm Station Quick Start Guide UD19486B...
