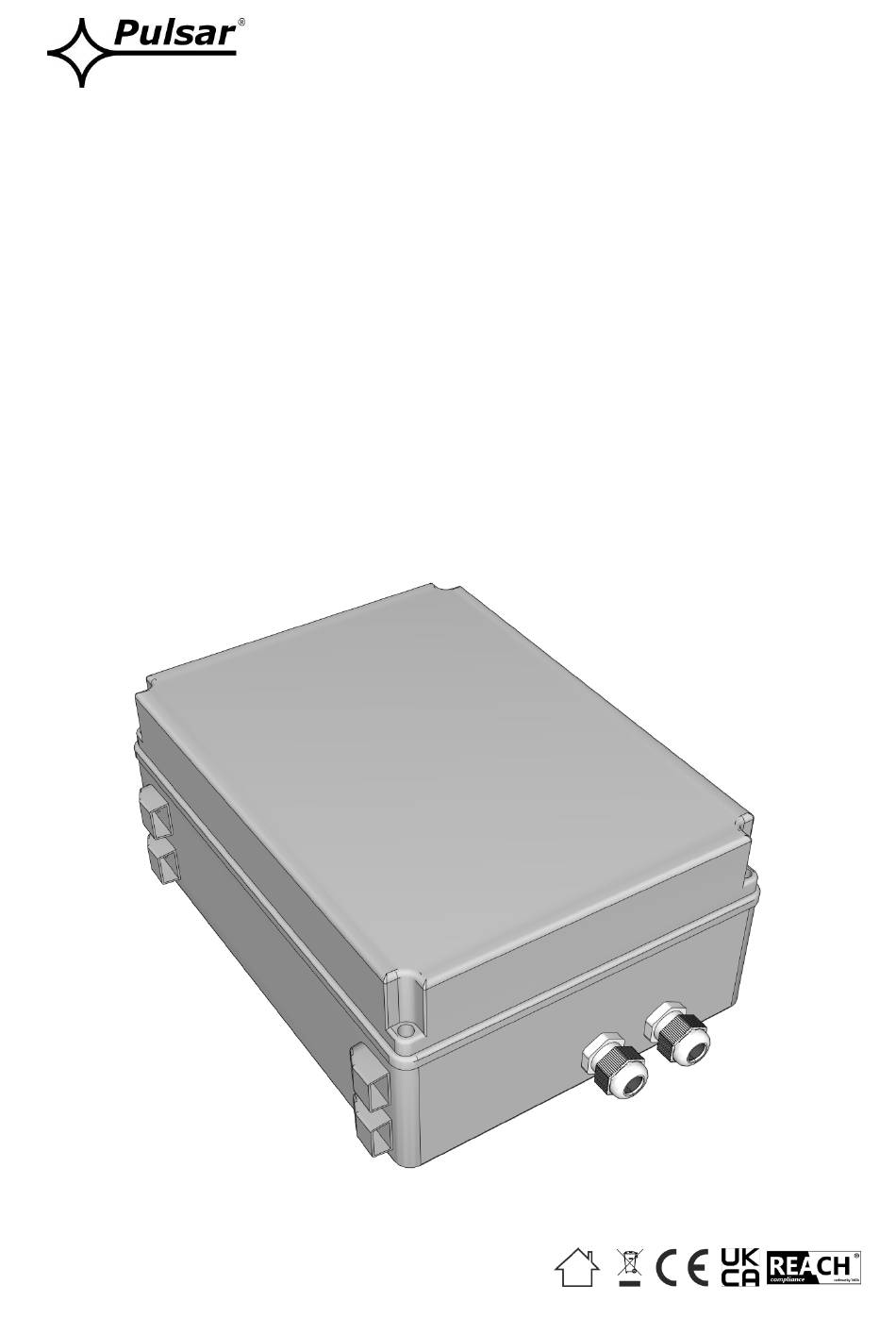

- Page 1 USER MANUAL Edition: 1 from 06.12.2022 Supersedes edition: HPSG2H-12V5A-C v1.0 HPSG2H 13,8V/5A/17Ah switch mode power supply unit with battery backup, Grade 2, ABS enclosure IP44...
-
Page 2: Table Of Contents
HPSG2H-12V5A-C Features: compliance with norm EN50131-6:2017 in grade LED optical indication deep discharge battery protection (UVP) 1, 2 and II environmental class compliance with norm EN60839-11- battery charging current jumper selectable dynamic battery test 2:2015+AC:2015 and I environmental class ... -
Page 3: Block Diagram
HPSG2H-12V5A-C 1.2. Block diagram (Fig. 1). Fig.1. Block diagram of PSU. 1.3. Description of PSU components and connectors. Table 2. Elements and connector of PSU (see Fig.2). Element no. Description Ventilation Power supply unit Battery space (17Ah; 12 V; SLA) Selection jumper for charging current: ... - Page 4 HPSG2H-12V5A-C Fig. 2. View of PSU.
-
Page 5: Specifications
HPSG2H-12V5A-C 1.4. Specifications: - electrical parameters (Tab. 3) - mechanical parameters (Tab. 4) - operation safety (Tab. 5) - operating parameters (Tab. 6) Table 3. Electrical parameters. PSU type (EN 50131-6) A (EPS - External Power Source), II environmental class... -
Page 6: Installation
HPSG2H-12V5A-C Table 6. Operating parameters. Environmental class EN 50131-6 Environmental class EN 60839-11-2 Operating temperature -10ºC...+40ºC Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insolation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 2. -
Page 7: Operating Status Indication
HPSG2H-12V5A-C During battery charge, voltage can amount to: - cutting off the 230 V current: EPS technical outputs will change status into opposite after about 30s - battery disconnection: APS technical output will change status after a battery test have been completed (~5min). -
Page 8: Standby Time
HPSG2H-12V5A-C CAUTION! The figure set of contacts shows a potential-free status of relay, which corresponds to power supply failure. 3.3 Standby time. Battery-assisted operating depends on battery capacity, charging level and load current. To maintain an appropriate standby time, current drawn from the PSU in battery mode should be limited. Required battery capacity can be calculated... - Page 9 Waste electrical and electronic equipment must not be disposed of with normal household waste. According to the European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-45 e-mail: sales@pulsar.pl...
