USER MANUAL Edition: 1 from 06.09.2021 Supersedes edition: Power supplies HPSDC series v1.0 Multi-output power supply units HPSDC series...
Page 2
1.1. General description. HPSDC series stabilized power supplies are designed to supply power to HD cameras or other devices requiring stabilized voltage of 12 V DC. Output voltage is adjusted with a potentiometer within the range of 12 - 15 V DC. The PSU features 4, 8 or 16 outputs (depending on the model), protected independently by glass fuses.
Page 3

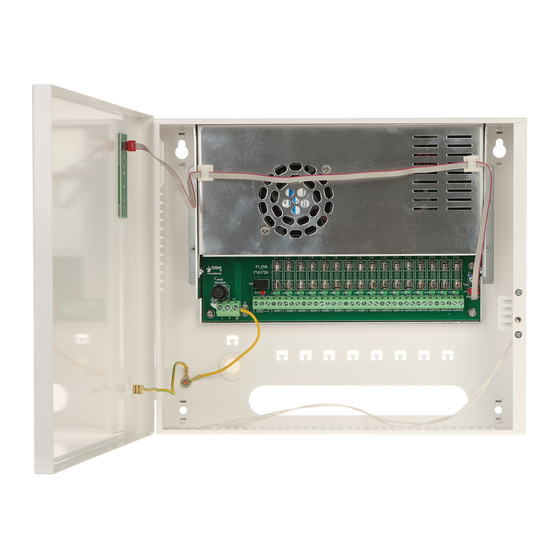

1.3. Description of PSU components and connectors. Table 2. Elements and connector of PSU (see Fig. 2a, 2b, 2c). Element no. Description L1…Ln (green) LEDs (indicating presence of voltage at each output of the PSU) F1…Fn glass fuse in AUX (+) circuits AUX1…AUXn outputs LED (red) indicating failure of one of the outputs (fuse activation) AUX1 - AUXn FPS output indicating failure of one of outputs, relay type...
Page 4
Table 3. View of PSU (see Fig. 3). Element no. Description PSU module Cable ellipse opening TAMPER; microswitch of antisabotage protection (NC) Fig. 3. View of PSU 1.4. Specifications. - electrical parameters (tab. 4) - mechanical parameters (tab. 5) - operation safety (tab. 6) - operating parameters (tab.
Page 5
Protection in 230V circuit Glass fuse T3,15A Glass fuse T5A - LEDs on PCB of power supply unit LED operation indication - LED indicators on power supply’s cover (see section 3.1) Technical output FPS – relay: 1 A@ 30 V DC /50 V AC, fuse failure Power supply: 0,5 –...
Page 6
2.2. Installation procedure. CAUTION! Before installation, cut off voltage in 230 V power-supply circuit. To switch power off, use an external switch, in which distance between contacts of all poles in disconnection state is not less than 3mm. It is required to install an installation switch with a nominal current of min. 6 A in the power supply circuits outside the power supply unit.
Page 7
According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
