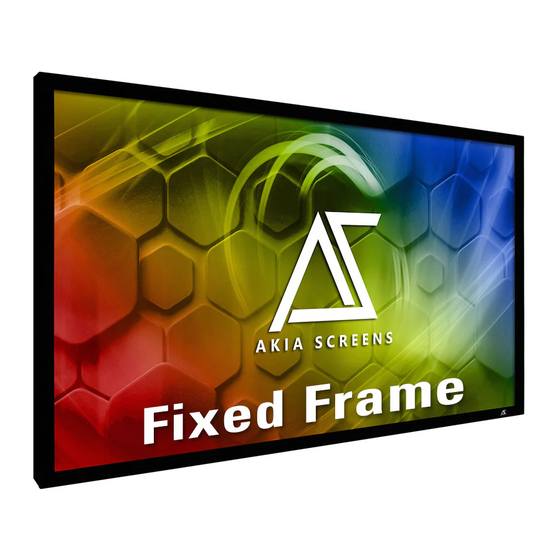

Fixed Frame Screen Series
Thank you for choosing an AKIA fixed frame projection screen! Please read through this user guide before
utilizing the screen. Correct usage and maintenance will ensure a long product life.
Care & Use Instructions
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points below to
prevent that from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
Hardware and Parts List
Note: Please make sure all parts are included in your package before proceeding to assemble the screen.
a: Frame parts x 6 pcs
(Springs pre-installed)
e: Tension Rods x 6 pcs
i: Center support bar x 1 pc
Rev.V04172023DT (DS0230)
Matte White Fixed Frame Projection Screen
User's Guide- EN Type
b:
Elbow Joints x 8 pcs
f: M5*50 wood screws x 8 pcs
l: Screen Material x 1pc
www.akiascreens.com
V1
c: M5*6 screws x 40 pcs
g: Wall anchor x 8 pcs
m: Center joints x 2 pcs
d: Spring hook x 2 pcs
h: Wall brackets x 4 pcs
1
Advertisement
Table of Contents
Related Manuals for Akia Screens Fixed Frame Screen Series
Summary of Contents for Akia Screens Fixed Frame Screen Series
- Page 1 Fixed Frame Screen Series Matte White Fixed Frame Projection Screen User’s Guide- EN Type Thank you for choosing an AKIA fixed frame projection screen! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
- Page 2 Frame Assembly 1. Please wear gloves (j) before installation. (Some models do not include this part.) 2. Insert the center joint (m) connector into to one of the 1/2 horizontal frames and fasten it with two M5*6 screws (c). Repeat steps for assembling the second horizontal frame. Center joints (m) Oblique opening Flat opening...
- Page 3 Attaching the screen material to the frame 1. Unroll the screen material and lay it down on a clean protection sheet (k) (Screen material facing down). Then Please place the frame gently on the screen material. (Some models do not include this part.) 2.
- Page 4 Center support Center Support Bard Push bar (i) Insert the Center Support Bar (i) into the upper top groove on the back of the frame with the bottom end near the approximate center Finished position point of the frame and rotate it in at an angle so that both ends of the bar are in alignment with Start position the groove, shown as below.
- Page 5 7. In order to avoid damaging the screen, avoid touching it directly with your fingers, tools or any other sharp or abrasive objects. 8. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines. For a local AKIA Screens contact or Technical Support, please visit www.akiascreens.com Rev.V04172023DT (DS0230)
