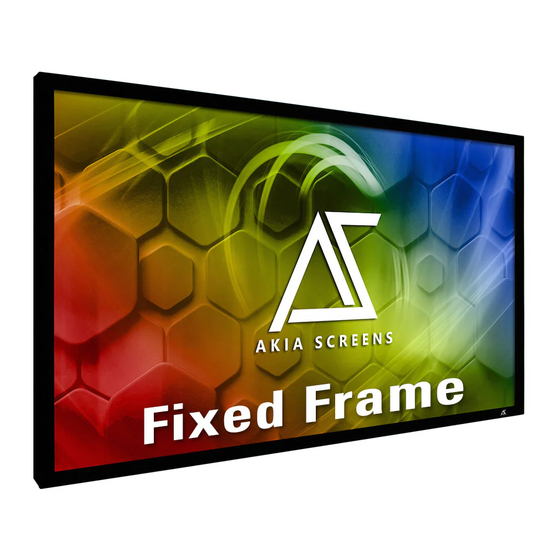

Matte white fixed frame screen

Advertisement

Quick Links

__________________________________________________________________________________________
Congratulations on your new Fixed Frame Screen purchase! The screen material included is our ISF certified
CineWhite® UHD-B, which is a reference quality front projection material with black backing that is certified by
the world-renowned Imaging Science Foundation. ISF Certified means the CineWhite UHD-B material produces
accurate colors in a light-controlled dark room environment. This is an industry standard for high-fidelity video
display systems. Watch your content as the director intended!
In order for the CineWhite® UHD-B to maintain its projection qualities and optimum performance please refer
to the list below for proper maintenance and cleaning.
Use a dry microfiber cloth to remove dust from the screen's surface.
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
Never rub or apply pressure when cleaning the surface.
Never attempt to use any solutions, chemicals, or abrasive cleaners on the screen surface.
To avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other
sharp or abrasive objects.
JA01072022
Fixed Frame Screen Series
Matte White Fixed Frame Screen
www.akiascreens.com
Featuring CineWhite® UHD-B
USER'S GUIDE – M Type
U-00239
V 2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fixed Frame Screen Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Akia Screens Fixed Frame Screen Series

  • Page 1 Fixed Frame Screen Series Matte White Fixed Frame Screen Featuring CineWhite® UHD-B USER’S GUIDE – M Type __________________________________________________________________________________________ Congratulations on your new Fixed Frame Screen purchase! The screen material included is our ISF certified CineWhite® UHD-B, which is a reference quality front projection material with black backing that is certified by the world-renowned Imaging Science Foundation.
  • Page 2 Frame Parts List A. Vertical Frame x 2pcs B. ½ Horizontal Frame x2 pcs C. ½ Horizontal Frame x 2 pcs Hardware Parts List M4*4 D5*4 M4*4 D5*4 Black 100” 110” 120” 135” 150” Item Parts List Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position)
  • Page 3: Frame Assembly

    Frame Assembly Step 1: Place the EPE sponge (foam) sheet on the ground of the area where the screen will be assembled. Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below. Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7 screws (g) as shown in the illustration below.
  • Page 4 Step 5. Secure the elbow joints by fastening them with M4x7 screws (g), 4 at each corner. Screen Material Step 6: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to the other side as shown below.
  • Page 5: Back Side

    Step 8: Insert the rods (r) through the sleeves according to their corresponding lengths on each edge of the screen as shown below. The short rods (top/bottom) will overlap to secure a firm grasp in the middle areas (Black tips) Back Back Side Side...
  • Page 6 First connect on four corners, steps 1-4. make sure all four corners are fixed before proceeding with next spring. Continue to attach the remaining springs to the material in steps 5-12 in the follow order. JA01072022 www.akiascreens.com U-00239...
  • Page 7: Installation

    Step 10: Insert the Center Support Bar (o) into the upper top groove on the back of the frame with the bottom end near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in alignment with the groove.
  • Page 8 Step 12: Begin by placing the frame on the bottom bracket (fig 1), move up and position onto the top wall brackets (fig 2) then push down at the center of the top of the frame to secure. For Technical Support or an Akia Screens contact in your area, visit www.akiascreens.com JA01072022 www.akiascreens.com...
