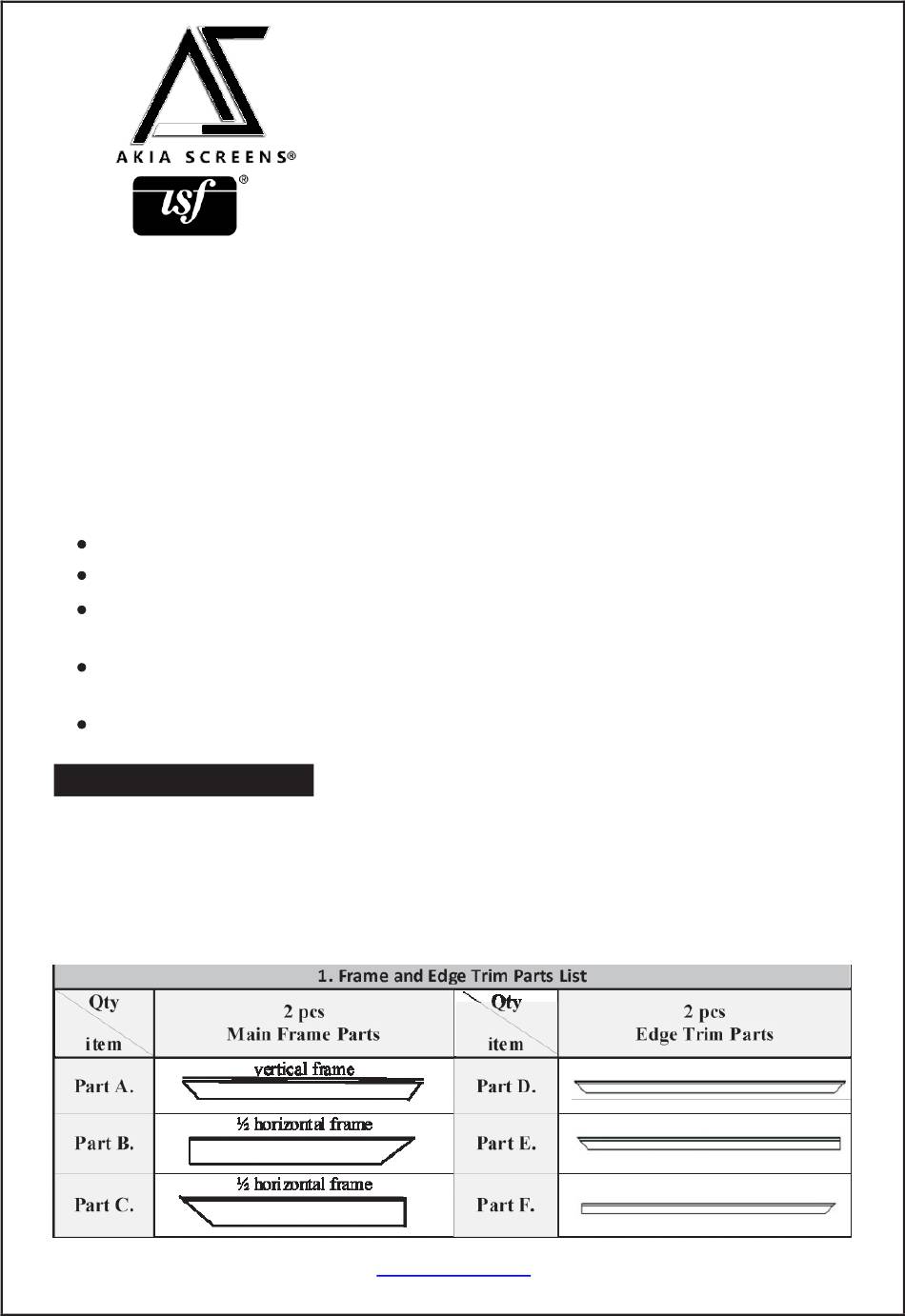

Thank you for choosing an Akia Screens fixed frame projection screen!
Congratulations on your new purchase! Please read through this user guide before
utilizing the screen. Correct usage and maintenance will ensure a long product life.
Care and use instructions:
Dust, dirt, and scratches on the projection surface will affect the picture quality,
please take note of the points below to prevent that from occurring:
Do not touch the projection surface with your hands.
Do not write or draw on the projection surface
Do not use fingers or sharp objects to point on the projection surface; this
damage the screen material.
Use a soft-damp cloth to clean the projection surface; do not use chemical
cleaning agents or alcohol.
Use clean water when dampening the cleaning cloth and do not rub against the
material to clean it.
Product Description:
The Aeon Series is a fixed frame projection screen that uses Akia's EDGE FREE®
technology. The EDGE FREE® design resembles a giant size flat panel TV
display. The Edge free screen includes a bezel trim to further enhance the frame
appearance and absorb projector overshoot.
Rev.101321NAS
EDGEFREE®Fixed Frame Screen
USER'SGUIDE - N Type
www.akiascreens.com
will
U-00235
1
Advertisement
Table of Contents
Related Manuals for Akia Screens EDGEFREE Fixed Frame Screen
Summary of Contents for Akia Screens EDGEFREE Fixed Frame Screen
- Page 1 EDGEFREE®Fixed Frame Screen USER'SGUIDE - N Type Thank you for choosing an Akia Screens fixed frame projection screen! Congratulations on your new purchase! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
- Page 2 2. Hardware Parts List Item Parts List 100" 125" 145" 150" Frame Center Joints - M5 (bottom position) Frame Elbow Joints M5(bottom position) Edge trim Center Joints M4 Edge trim Elbow Joints M4 M5x6 Screws Springs Spring Hook Wall Brackets 35CSK Wall Screws Hollow Wall anchors M4x4 Screws...
- Page 3 Frame Assembly Step 1: Position the pieces of the frame in the arrangement shown below. Corner Connection Note: Make sure all holes are in alignment and the frame pieces are flush (no gaps), then fasten the screws. Corner Connection To prevent permanent damage to the screen material, be sure your hands are clean for the next step. Step 2.
- Page 4 Center Support Bar Step 5.Secure the elbow joints by fasting them with M5x6 screws (e), 4+4 at each corner. Insert the support bar's tip into the frame's groove in the middle, then rotate it and insert the other end on the other side of frame.
- Page 5 Step 6: Two people are suggested for this step. Place the center Support Bar into the top grove on the back of the frame at the approximate center point. Carefully pull the bottom horizontal frame outward and place the center Support Bar at the approximate center point of the frame, carefully release the frame once the bar is centered.
- Page 6 Incorrect material installation -The corners of the screen material are not properly wrapped along the edge of the frame leaving the material with unbalanced tension and an uneven finish. To correct, detach springs from material at the corner(s) where material does not lie flat along the edge of the frame, reposition the material so that it lies flat and wraps along the edge of the frame, and reattach springs to the material.
- Page 7 1. Connect edge trims E&F to form the top/ bottom trims with the edge trim center Joints, and then insert them on the top/bottom frames. 2. Connect the side edge trims C with the top/bottom edge trim with elbow joints D. 3.
- Page 8 Note : Make sure the direction of the Screen material is correct before you hang the screen to the wall. The material is labeled top or bottom. Rev.101321NAS www.akiascreens.com U-00235...
