Product Description:

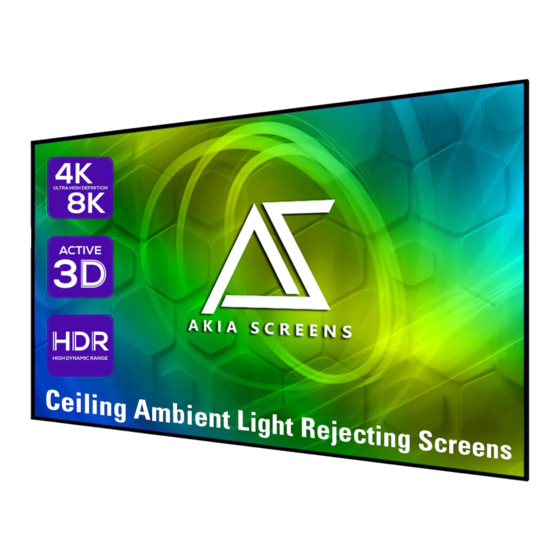

The Akia EDGE FREE CLR® 3/4 Series is a fixed frame projection screen that uses Akia's EDGE FREE®
technology. The EDGE FREE® design resembles a flat panel TV display. The EDGE FREE CLR
micro-thin bezel trim to further enhance the frame appearance and absorb projector overshoot.
The screen material included is our CLR
for environments with minimal control over room lighting. It was designed to filter and absorb overhead light while
directing table-top mounted ultra-short throw projection. It best for family rooms, educational facilities, conference
rooms or any applications in which incident light is a factor.
Screen maintenance
Dust, dirt and scratches on the projection screen surface will affect the quality and performance of the projection
image. Follow the instructions below to properly maintain the screen.
1) The screen surface has a horizontal linear structure. DO NOT wipe the screen up and down or in a circular
motion. Wipe gently from left to right only.
2) Clean the dust on the screen surface with a soft brush or microfiber cloth. A rough/coarse towel or cloth may
damage the screen's surface.
3) Gently wipe the screen with a lightly moistened white lint free cloth with water or with a neutral detergent
(1mL/0.33 oz) mixed with water (1000 mL/33.8 oz).
Notes: The following precautions should always be followed to avoid damaging the material, which is
not covered under warranty.
• Don't touch the screen material to avoid leaving fingerprints.
• Use gloves when handling the material.
• Don't scratch the material, as it will leave permanent markings on the screen's surface.
• Don't point to the screen material with a fingertip or other sharp objects to prevent damage to the material.
• Don't use acetone, benzene, alcohol and any other organic solvents to clean the screen material. Using such
chemicals will permanently damage the screen.
08182020JA
Ceiling Ambient Light Rejecting Fixed Frame Screen
®
3/4, which is an optical lens front projection material precisely formulated
www.akiascreens.com
EDGE FREE® CLR® 3/4
U-00205
USER'S GUIDE
M Type - Version 3
®
3/4 includes a
1
Advertisement
Table of Contents
Related Manuals for Akia Screens EDGE FREE CLR 3/4 Series
Summary of Contents for Akia Screens EDGE FREE CLR 3/4 Series
- Page 1 EDGE FREE® CLR® 3/4 Ceiling Ambient Light Rejecting Fixed Frame Screen USER’S GUIDE M Type - Version 3 ____________________________________________________________________________________________ Product Description: The Akia EDGE FREE CLR® 3/4 Series is a fixed frame projection screen that uses Akia’s EDGE FREE® ® technology.
- Page 2 1. Frame and Edge Trim Parts List 2 pcs 2 pcs Main Frame Parts Edge Trim Parts Item item vertical frame Part A. Part D. ½ horizontal frame Part B. Part E. ½ horizontal frame Part C. Part F. 2. Hardware Parts List M4*4 D5*4 M4*4...
- Page 3 103'' 123’’ Item Parts List Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position) Side cover Center Joints- M4 Side cover Elbow Joints M4 M4x7 Screws Spring Spring Hook wall brackets Φ5x50 Wall Screws Hollow Wall anchors M4x4 Screws...
- Page 4 Step 5: Secure the elbow joints by fastening them with M4x7 screws (g), 4 at each corner. Screen Material CAUTION! THE PROJECTION FABRIC IS A DELICATE OPTICAL/LENTICULAR SCREEN MATERIAL AND SHOULD NOT BE FOLDED, BENT, OR CREASED. ALWAYS MAINTAIN SCREEN MATERIAL FLAT AND TAUT DURING SETUP AND DISASSEMBLY.
- Page 5 Begin by first attaching the center points on both vertical (left/right) sides, steps 1-2. Then the center points on both horizontal (top/bottom) sides, steps 3-4. Once all center points have been secured, make sure the screen material is still within the marked areas before proceeding to attach the next springs. Continue attaching the rest of the springs to the material in the following order in steps 5-12.
- Page 6 Edge Trim Installation ATTENTION: The back of the material has labels indicating the TOP and BOTTOM. The top edge trim piece with the logo should be installed at the top. The material is directional and will not accurately reflect if bottom side is projected on. Step 9: Place the edge trim frame pieces over each end of the frame.
- Page 7 Step 11: Install the springs (q) in each middle area to further support the bezel trim edge frame. Notice to Installer: ® Material Tip: Proper Projector Placement for CLR ® The CLR 3/4 is exclusively for table-mounted ultra-short throw projectors. Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent layer deflecting light that is not aligned with its reflective angle.
- Page 8 Wall Installation Step 12: Measure the overall length and height of the frame and drill holes for the top brackets. Line up the wall brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not installing into a structural wood stud, use a hollow wall anchor then screw in the M5x50 wood screws with a screwdriver.
