Akia Screens EDGE FREE Fixed Frame User Manual

Hide thumbs Also See for EDGE FREE Fixed Frame:

Advertisement

Quick Links

Download this manual
______________________________________________________________________________________________________
Product Description: The Akia edge free Series is a fixed frame projection screen that uses AKIA's EDGE FREE
technology. The EDGE FREE
as an installation option to further enhance the frame appearance and absorb projector overshoot. An optional LED
backlighting kit is available for added visual appearance.

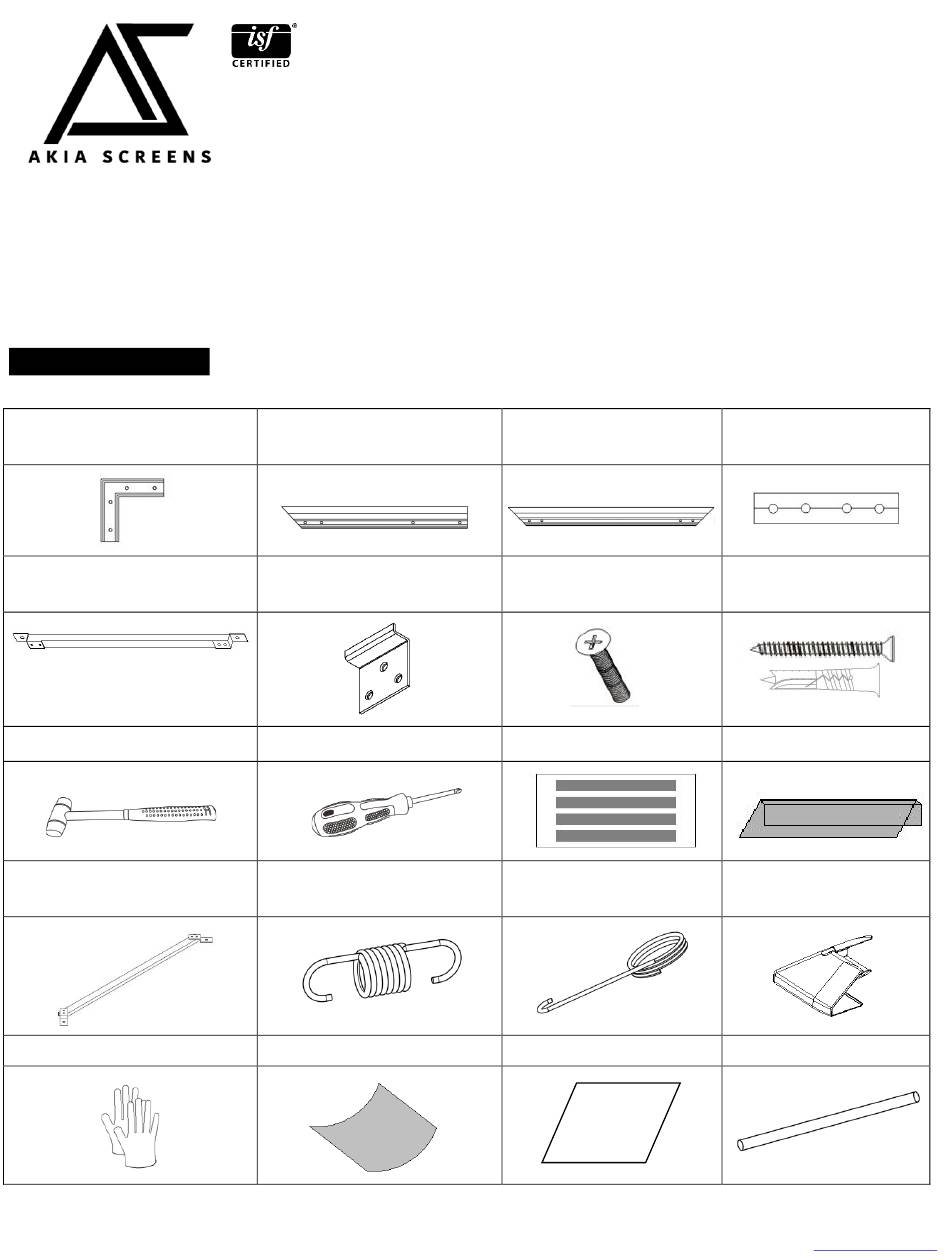

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow Joint x 4 pcs
E. Center Support Bar x 1-2
pcs
~ 135" x 1 pc
135"-150" x 2 pcs
I. Rubber hammer x 1 pc
M. Corner Support Bar
(180"-200") x 4 pcs
Q. Gloves
x 2 pair
Rev. V07092024DT (DZUG0266)
design resembles a giant size flat panel TV display. The screen includes an ultra-thin trim
®
B. Top/Bottom
Horizontal Fame x 4 pcs
F. Wall brackets x 2-3 pcs
J. Screwdriver x 1 pc
N. Spring x 50 ~ 200 pcs
R. Protection sheet x 1 pc
Fixed Frame Series
EDGE FREE
Fixed Frame Projection Screen
®
C. Left/Right
Vertical Frame x 2 pcs
G. M5x15 screw x 24 pcs
K. Black Tape x 1 bag
O. Hook x 2 pcs
S. Screen material x 1 pc
1
User's Guide
D. Center Joints x 2 pcs
H. M4x32 screws and
anchors x 6-9 pcs
L. Bezel trim x 6 pcs
P. Corner sleeve x 4 pcs
T. Tension rods x 6 pcs
www.akiascreens.com
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDGE FREE Fixed Frame and is the answer not in the manual?

Questions and answers

Related Manuals for Akia Screens EDGE FREE Fixed Frame

Summary of Contents for Akia Screens EDGE FREE Fixed Frame

  • Page 1 Fixed Frame Series EDGE FREE Fixed Frame Projection Screen ® User’s Guide ______________________________________________________________________________________________________ Product Description: The Akia edge free Series is a fixed frame projection screen that uses AKIA’s EDGE FREE ® technology. The EDGE FREE design resembles a giant size flat panel TV display. The screen includes an ultra-thin trim ®...
  • Page 2 Frame Assembly 1. Insert the center joint into one of the ½ Horizontal Frames (B) and fasten it with the two M5x15 screws (G). 2. Insert the other ½ horizontal frame piece to the Center Joint (D) and fasten also using two M5x15 screws. 3.
  • Page 3 6. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below. push push Horizontal Long frame (B) 7. Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles with the M5x15 Screws (G).

  • Page 4: Screen Material Installation

    Screen Material Installation 1. Make sure the screen material and frame are both lying face down on a clean, dry, and non-abrasive Protection Sheet (S) and please wear installation Gloves (Q) before install screen material. (Fig.1) This is to avoid leaving oily handprints on the screen surface which are not removable. 2.
  • Page 5 5. Carefully and gently place the assembled frame on top of the screen material, adjust the distance between the frame edge and the material to be the same. (Fig.5) DO NOT allow the angle edge of the frame to come in direct contact with the material to avoid puncturing it. (Fig.5) Begin by simultaneously attaching four springs in the center of the side frames (A→B→C→D).
  • Page 6 7. Install the spring at point 1 first, then install the spring at point 2, and finally install the remaining springs. (Fig.8) Support bar installation (for models under 135”): 1. Position the Center Support Bar (E) in the middle of the frame and align the hole on each end of the support bar with the M6 hex screws on the top and bottom frames.
  • Page 7 Support bar installation (for models 135”- 150"): 1. Position the Center Support Bar (E) and M6 hex screws in the areas of the frame shown in fig 1. (Each about one thirds the way in from the end of the frame.) Align the hole on each end of the support bar with the M6 hex screws located at the top and bottom frame sections.
  • Page 8 AKIA Screens NOTE: Make sure the bottom edge trim with the AKIA Screens logo is installed on the correct side. The back of the material should be labeled with a DOWN sticker to indicate the material is facing in the down position. The AKIA Screens logo should be installed on the DOWN side 4.
  • Page 9 White area signifies Back side corner gap. AKIA Screens Front side Once all corner sleeves have been snapped into each corner of the frame, it is ready to be installed. Diagonal Size Note: The Diagonal Size of the 100” &120” models before and after installing the edge trim strip.

  • Page 10: Installation

    4. The design of the wall brackets allows the frame to slide over them through its sides. This is an important feature of the installation design as it allows your screen to be properly centered. For a local AKIA Screens contact or Technical Support, please visit www.akiascreens.com Rev.
