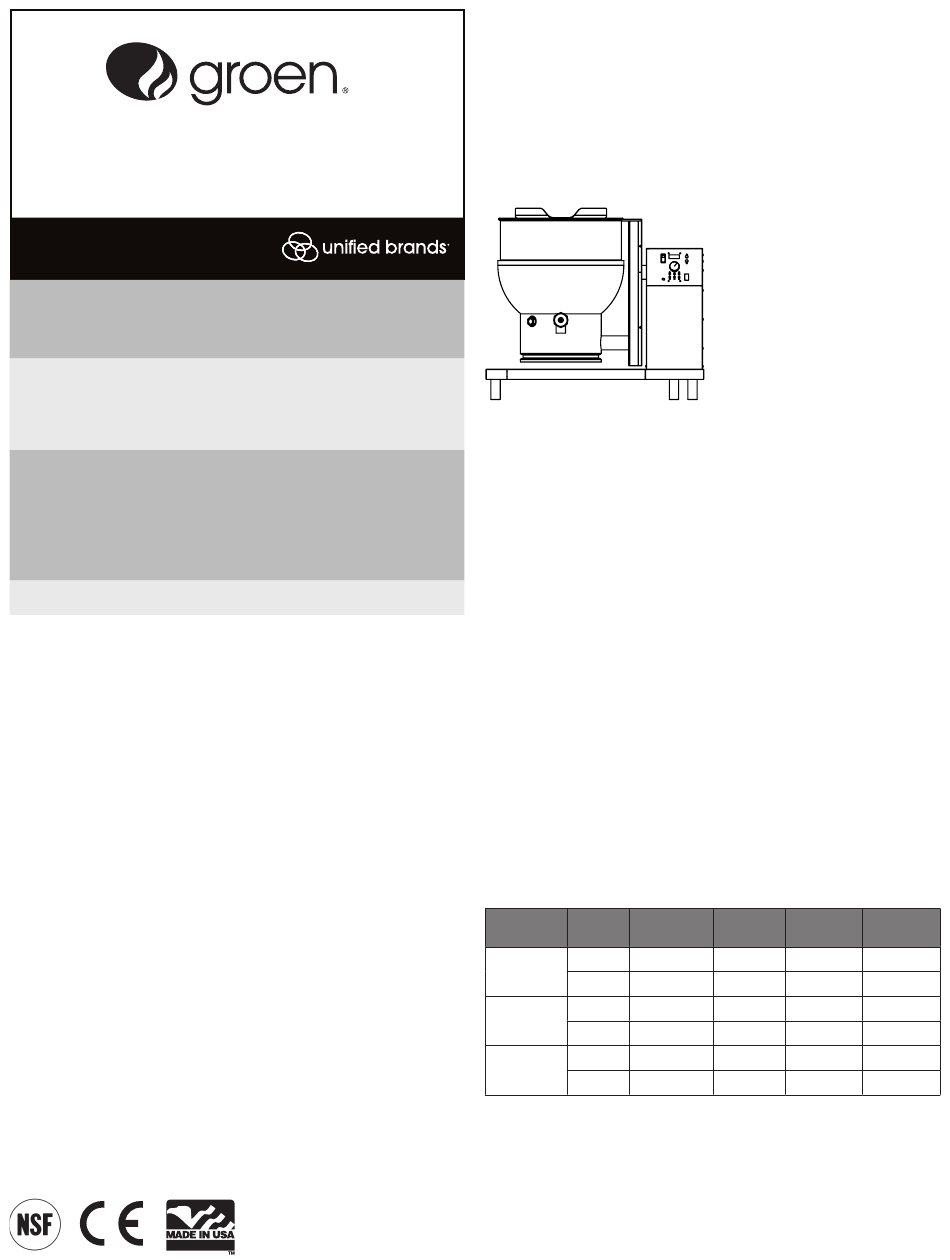

Groen DEE/4-20C Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED
IN THIS MANUAL.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified Brands
suggests that if you are suspicious of damage to make a notation on the
delivery receipt. It will be the responsibility of the consignee to file a claim
with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
The DEE/4 is a floor-mounted, tilting, steam jacketed kettle with an electronically
controlled, self-contained, electrically-heated steam supply and appropriate con-
trols, mounted on a sturdy base. The kettle is available in 20, 40 or 60 gallon (75,
150 or 225 liters) capacities.
The body of the kettle is constructed of stainless steel, welded into one solid piece.
The kettle is furnished with a reinforced rim and a butterfly shaped pouring lip. It
has a steam jacket rated for working pressures up to 50 psi (345 kPa, 3.45 bar).
Kettle finish is 180 emery grit on the inside and bright semi-deluxe on the outside.
The kettle can be tilted with a hand crank to pour out its contents. Stainless steel
panels enclose the controls and the base. Four stainless steel, tubular legs support
the unit. Bullet feet on each of the legs can be adjusted to level the kettle.
A built-in steam generator, sized for the kettle capacity and heated by electric-
ity, delivers steam into the jacket. "Airless" operation of the steam jacket permits
uniform, efficient heating at temperatures as low as 150°F (65.5°C) and as high
as 298°F (148°C). In addition to the electronic temperature control, the unit has a
tilt cut-off switch, low water cut-off, safety valve, and high-limit pressure switch
as safety features. A heating indicator light, pressure gauge, and sight glass are
provided for monitoring kettle operation.
A single electrical connection is required for installation. The unit may be ordered
for use with 230 VAC, 1 Phase, 50 Hz, or 400 VAC, 3 Phase, 50 Hz power.
READ,
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends
referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications. © 2020 Unified Brands. All
Rights Reserved.
This manual provides information for:
STEAM JACKETED KETTLE
MODELS DEE/4(T)-20/40/60(C,A)
(CE) INTERNATIONAL
REFERENCES
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
Options available include:
1. 2" or 3" (51 or 76mm) diameter tangent draw-off (product valve) (factory installed)
2. Lift-off, hinged and power-assist covers
3. Water fill faucets
4. Basket cooking system
5. Kettle brush kit
6. Gallon etch marks (factory installed)
PERFORMANCE DATA
Kettle Inside
Model
Capacity Diameter
20 Gal. 20 inches
DEE/4-20
(C,A)
75 liter 508 mm
40 Gal. 26 inches
DEE/4-40
(C,A)
150 liter 660 mm
60 Gal. 30 inches
DEE/4-60
(C,A)
225 liter 762 mm
PART NUMBER 177363, REV. D (08/22)
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
NFPA/70 - The National Electric Code
ZEP MANUFACTURING COMPANY
1310-T Seaboard Industrial Boulevard
Atlanta, Georgia 30318
Front to
Rim Height Total Width
Back
39 inches 38 inches 28 inches
991 mm 965 mm 711 mm
40 inches 42 inches 32 inches
1016 mm 1067 mm 813 mm
44 inches 47 inches 35 inches
1118 mm 1194 mm 889 mm
