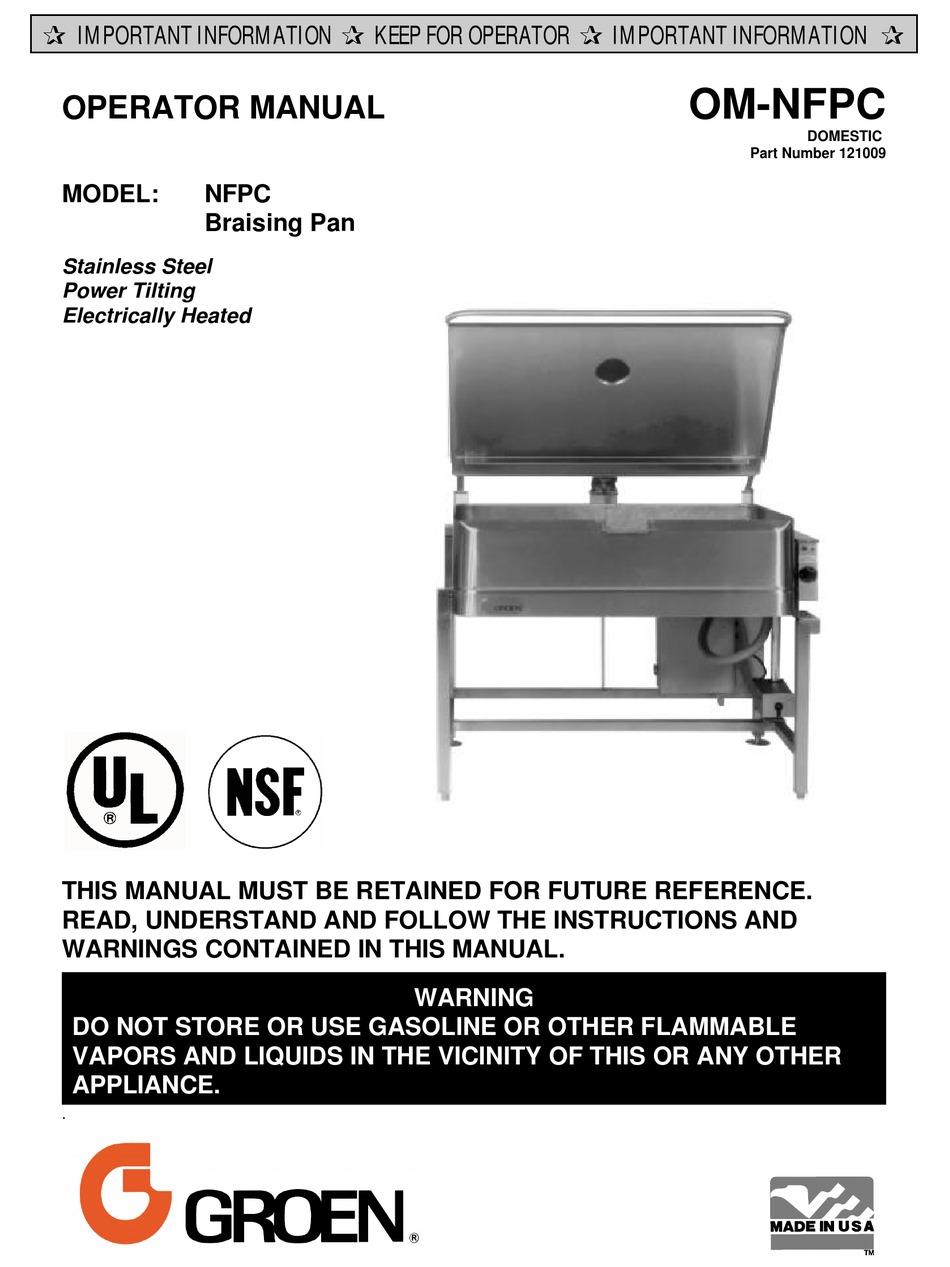

P IMPORTANT INFORMATION P KEEP FOR OPERATOR P IMPORTANT INFORMATION P
OPERATOR MANUAL
MODEL:
NFPC

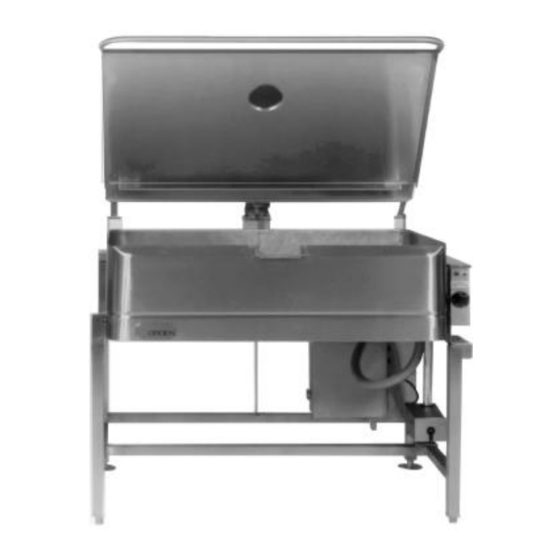

Braising Pan
Stainless Steel
Power Tilting
Electrically Heated
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
.
WARNING
OM-NFPC
DOMESTIC
Part Number 121009
Advertisement
Table of Contents
Related Manuals for Groen NFPC series
Summary of Contents for Groen NFPC series
- Page 1 P IMPORTANT INFORMATION P KEEP FOR OPERATOR P IMPORTANT INFORMATION P OM-NFPC OPERATOR MANUAL DOMESTIC Part Number 121009 MODEL: NFPC Braising Pan Stainless Steel Power Tilting Electrically Heated THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
- Page 2 LIQUID TO SPLASH OUT. WARNING: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR ITS AUTHORIZED DISTRIBUTORS VOIDS ALL WARRANTIES AND MAY CAUSE BODILY INJURY AND/OR EQUIPMENT DAMAGE. SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES.
-
Page 3: Table Of Contents
OM-NFPC Table of Contents IMPORTANT OPERATOR WARNINGS ..........3 REFERENCES . -
Page 4: Equipment Description
OM-NFPC Equipment Description The Groen NFPC is a stainless steel, electrically The thermostat provides automatic control of heated Braising Pan which is equipped with cooking temperature. Turning the thermostat integrated heating elements, a power tilting dial starts and stops heating and sets the pan mechanism, electrical controls and a hinged temperature. -
Page 5: Installation
2. At the electrical service entrance in the bottom of the control box, make a waterproof connection with the incoming 4. Any mechanical or electrical change must be approved by the Groen Food Service power line. A BX connection is not recommended. Engineering Department. -
Page 6: Initial Start-Up
OM-NFPC Initial Start-Up Now that the Braising Pan has been installed, 4. Set the thermostat to 235 F. The heating you should test it to ensure that it is operating indicator light should come on to indicate correctly. that the pan is heating. Heating should continue until the water boils. - Page 7 OM-NFPC 4. To pour or dump product, remove grease, 5. To return the pan to the horizontal or assist cleaning, first raise the cover, position, pull the switch up. then tilt the pan up and forward by pushing down on the power tilt switch. Whenever 6.
-
Page 8: Sequence Of Operation
OM-NFPC Sequence of Operation The following “action-reaction” outline is provided The thermostat controls heating by alternating to help you understand how the braising pan between feeding full power and completely actually functions. cutting power off. The pan heats as fast as it can until it reaches the set temperature, no When you start up the pan by turning the matter what that temperature is. -
Page 9: Cleaning
OM-NFPC Cleaning 1. Suggested Tools a. Cleaner, such as Klenzade HC-10 b. Brushes in good condition c. Cloth for cleaning controls d. Chlorine sanitizer such as Klenzade XY-12 Use a sponge, cloth or plastic brush to clean the pan. e. Heavy Duty Cleaner, such as Klenzade LC-30 2. -
Page 10: Maintenance
Thoroughly drain off the sanitizer. Maintenance WARNING USE OF REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES. SERVICE PERFORMED BY OTHER THAN FACTORY-AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES. -
Page 11: Troubleshooting
If the actions suggested do not solve the problem, call your qualified Groen Service Representative. For the phone number of the nearest agency, call your area Groen representative or the Groen Parts and Service Department. If an item on the list is followed by , the work should only be performed by a qualified service representative. -
Page 12: Parts Lists
OM-NFPC Parts List Description Part No. Description Part No. Control Box 050377 Actuator Cover Model 51 9"pan 014085 Thermostat 002180 Spring 012533 Switch, Toggle 002664 Cover Assembly, Vent 017494 Thermostat, High Limit 012840 Hinge Bracket 013485 Heater, Strip* — Bracket 004556 Fuse, 6 Amp 003982... -
Page 13: Diagrams & Schematics
OM-NFPC ELECTRICAL PARTS CHART (All data for 60 Hz) Model Heater Contactor — See footnote Quantity Part No. Quantity Part No. NFPC-3 208V, 1PH 012842 006950 NFPC-3 208V, 3PH 012842 013432* NFPC-3 240V, 1PH 012843 006950 NFPC-3 240V, 3PH 012843 013432* NFPC-3 380V, 3PH... - Page 14 OM-NFPC Wiring Diagrams...
- Page 15 OM-NFPC Wiring Diagrams...
- Page 16 OM-NFPC Wiring Diagrams...
- Page 17 OM-NFPC Wiring Diagrams...
- Page 18 OM-NFPC Wiring Diagrams...
- Page 19 OM-NFPC Wiring Diagrams...
- Page 20 OM-NFPC Wiring Diagrams...
- Page 21 OM-NFPC Wiring Diagrams...
-
Page 22: Maintenance Log
OM-NFPC Service Log Model No. Purchased From Serial No. Location Date Purchased Date Installed Purchase Order No. For Service Call Date Maintenance Performed Performed by... -
Page 23: Warranty
Groen Foodservice Equipment ("Groen Equipment") has been skillfully manufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations. - Page 24 1055 Mendell Davis Drive Jackson, MS 39212 OM-NFPC (Revised 3/98) Telephone 601 372-3903 FAX 601 373-9587 Part Number 121009...
