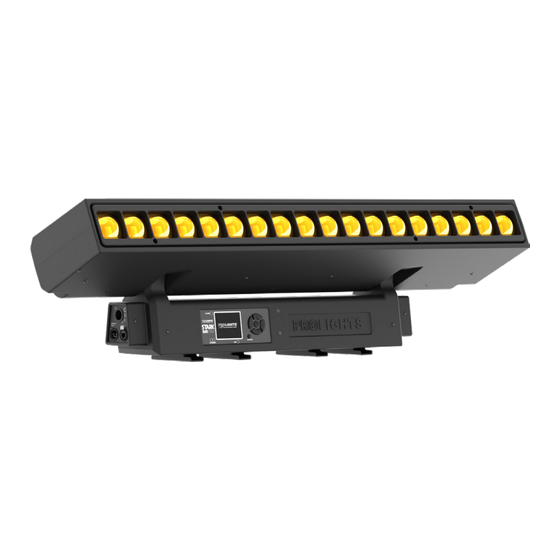

- Page 1 Stark Bar1000 18x40W moving LED batten with zoom and pixel control USER MANUAL English version REV.05-05/23...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
12 - DMX CHARTS DMX Chart Summary ...................... 23 13 - ERROR MESSAGES 14 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............28 REPLACING THE FUSE ....................28 VISUAL CHECK OF PRODUCT HOUSING ..............28 TROUBLESHOOTING ..................... 29 PROLIGHTS - Stark Bar1000... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). Other approvals PROLIGHTS - Stark Bar1000...
-
Page 7: Packaging
• OS24: Quick-lock omega bracket, M10 hole • FCLSB1000: Flight case for 4x STARKBAR1000 • UPBOX2P5: Firmware uploader kit, USB IN, 5-pin XLR DMX OUT 2 - TECHNICAL DRAWING Fig. 01 Weight: 19 kg - 41,89 lbs PROLIGHTS - Stark Bar1000... -
Page 8: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630B OS24 Steel security cable Omega Bracket C6016B Clamp Fig.03 PROLIGHTS - Stark Bar1000... -
Page 9: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Stark Bar1000... -
Page 10: Product Overview
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C 12. EtherCON connector Signal IN/OUT 13. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only. 12 11 Fig 04 PROLIGHTS - Stark Bar1000... -
Page 11: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 23 DMX channels configuration PROLIGHTS - Stark Bar1000... -
Page 12: Construction Of The Dmx Termination
(Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Stark Bar1000... -
Page 13: Ethernet To Dmx Operations
NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. NOTE: Do not use IN TO WDMX and ETH TO DMX simultaneously, this will cause data conflict on DMX output signal. PROLIGHTS - Stark Bar1000... -
Page 14: Operation As A Wireless Receiver
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Stark Bar1000... -
Page 15: Control Panel
• Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Stark Bar1000... -
Page 16: Menu Structure
: UP, DOWN, UP, DOWN. EN/FR/SP... LANGUAGE Select menu language AUTO SPEED / Select Fan behaviour. FIXTURE FANS MODE HIGH SPEED CLOSE/HOLD/ To choose the behaviour of fixture in case of NO SIGNAL AUTO/MUSIC dmx signal lost. PROLIGHTS - Stark Bar1000... - Page 17 To see the unit temperature. TURE FAN SPEED NEAR LAMP FAN RPM AND % To see the speed of the fans. CHANNEL TILT... To see the dmx value of those channels. VALUE ERROR TILT... To see any error messages. MESSAGE PROLIGHTS - Stark Bar1000...
- Page 18 TILT / FADE / SCENE EDIT SCENES 250 / DMX INPUT STARKBAR1000 equipped with SCENES built-in DMX recorder by which you can Sc XX - Sc XX RECORD transmit the programmed scenes from your DMX-controller to the device. PROLIGHTS - Stark Bar1000...
-
Page 19: Wireless Control Settings
DMX signal input. Press the UP/DOWN button to select the preferred mode of operation: Close/ Hold/Auto/Music. Press the ENTER button to confirm your choice. • Hibernation - Select this function to activate the standby mode. This function will be activated automatically PROLIGHTS - Stark Bar1000... -
Page 20: Fixture Settings
Use the arrow buttons to enter the desired value, then press the ENTER button to confirm your choice. • Press the LEFT button repeatedly to exit the menu and save changes. Reload Default Select this function to reset the unit to factory settings: PROLIGHTS - Stark Bar1000... -
Page 21: Fixture Information
Press the UP/DOWN button to scroll through the menu, then select Chase Part 1/Chase Part 2/Chase Part 3 and press ENTER to confirm. • Press the UP/DOWN button to select Chase1-Chase8, and press the ENTER button to confirm. • Press the LEFT button repeatedly to exit the menu and save changes. PROLIGHTS - Stark Bar1000... -
Page 22: Slave Receive Mode
Press the UP/DOWN button to scroll through the menu, select Scenes Record and press the ENTER button to enter the next menu. • Press the UP/DOWN button to adjust the scene at the beginning and end to be inserted in the automatic program, then press the ENTER button to confirm. PROLIGHTS - Stark Bar1000... -
Page 23: Music Mode
Press the LEFT button repeatedly to exit the menu and save changes. 10 - SHORTCUT Keys Mode Description Reset without pan/tilt move- Fixture will be powered on without reset on DOWN then power on ments pan/tilt movements. ENTER + UP then Bootloader Force firmware upgrade. power on PROLIGHTS - Stark Bar1000... -
Page 24: Rdm Functions
0x00F0 SLOT_INFO 0x0120 SLOT_DESCRIPTION 0x0121 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Power/Lamp DEVICE_HOURS 0x0400 Settings LAMP_HOURS 0x0401 LAMP_STATE 0x0403 Display DISPLAY_INVERT 0x0500 Settings Configuration TILT_INVERT 0x0601 Control IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 DISC_UNIQUE_BRANCH 0x0001 DISC_MUTE 0x0002 DISC_UN_MUTE 0x0003 PROLIGHTS - Stark Bar1000... -
Page 25: Dmx Charts
Shutter" Pattern transition Background Foreground Background dimmer "Background Foreground dimmer Shutter" "Foreground Control Shutter" Background Red 1 Background dimmer Green 1 "Background Blue 1 Shutter" Control White 1 Red 18 Green 18 Blue 18 White 18 PROLIGHTS - Stark Bar1000... - Page 26 Linear insertion from 0% to 100% 000 ÷ 255 Blue-All Linear insertion from 0% to 100% 000 ÷ 255 White-All Linear insertion from 0% to 100% 000 ÷ 255 ZOOM Big Angle to Small Angle 000 ÷ 255 PROLIGHTS - Stark Bar1000...
- Page 27 BACKGROUND SHUTTER Shutter closed 000 - 010 Strobe effect slow to fast 011 - 163 Shutter open 1 164 - 174 Random strobe effect slow to fast 175 - 244 Shutter open 2 245 - 255 PROLIGHTS - Stark Bar1000...
- Page 28 000 ÷ 255 Green 18 Linear insertion from 0% to 100% 000 ÷ 255 Blue 18 Linear insertion from 0% to 100% 000 ÷ 255 White 18 Linear insertion from 0% to 100% 000 ÷ 255 PROLIGHTS - Stark Bar1000...
-
Page 29: Error Messages
Blower for cooling the power supply failed. [BASE FAN 1 ERROR] First of the blowers for cooling the base failed. Failure detected during the reset of the ZOOM system, if the focus lens is [ZOOM ERROR] not located in its default position. PROLIGHTS - Stark Bar1000... -
Page 30: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 31: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 32 Note...
- Page 33 Note...
- Page 34 Note PROLIGHTS - Stark Bar1000...
- Page 35 PROLIGHTS - Stark Bar1000...
- Page 36 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
