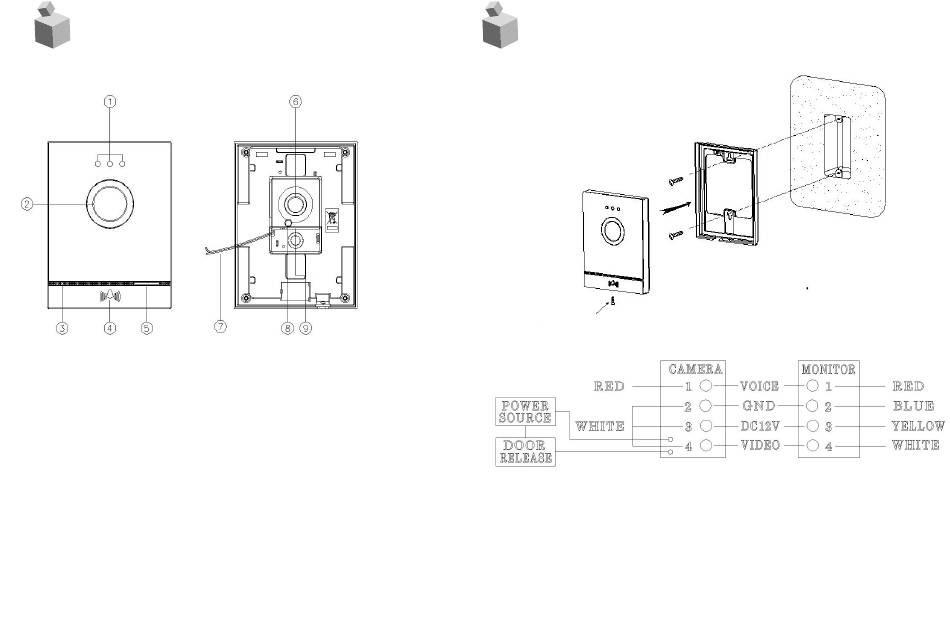

1. Part Names.
1) LED & ILLUMINATION Sensor
2) Camera Lens
3) MIC
4) Call Button
5) Speaker
6) CAMERA Angle Adjustment
7) Door Release Conection Cable
8) Volume CONTROL (driver available)
(Use 1.8mm Ceramic Driver)
9) Monitor Connection Terminal
2. Wiring and Installation
SCREW T4X18(2EA)
SCREW M3 (1EA)
① Fix a bracket on a wall with screws
Wiring #1, 2, 3, 4 on the back side of a door camera with
② a monitor as shown in [FIG-2]
③ Put a door camera unit into a wall bracket
④ Wire door release connection terminal as shown in [FIG-2]
⑤ Tighten a screw at the top side of a door camera. [FIG-1]
[FIG-1]
[FIG-2]
