Commax DRC-4M User Manual

Color door camera

Download this manual

User Manual

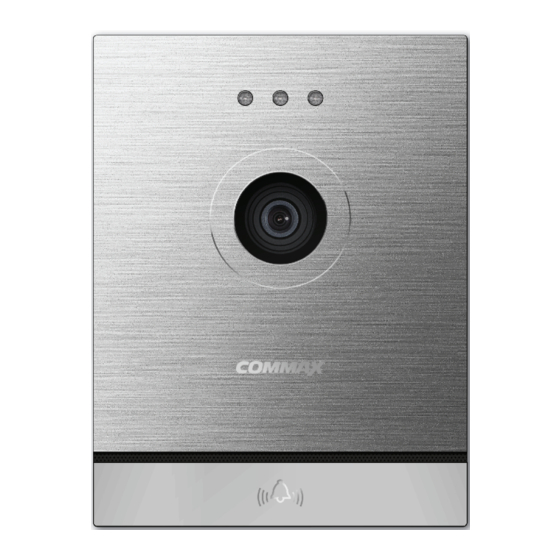

Color Door Camera DRC-4M

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Need help?

Do you have a question about the DRC-4M and is the answer not in the manual?

Page 1 User Manual Color Door Camera DRC-4M • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
Page 2 1. Part Names. 2. Wiring and Installation [FIG-1] SCREW T4X18(2EA) [FIG-2] SCREW M3 (1EA) 1) LED & ILLUMINATION Sensor 2) Camera Lens 3) MIC 4) Call Button ① Fix a bracket on a wall with screws 5) Speaker Wiring #1, 2, 3, 4 on the back side of a door camera with 6) CAMERA Angle Adjustment ②...
Page 3 3. Package contents 4. Specification Model No. DRC-4M Rated Voltage (Supplied from monitor) Wiring 4 wires(polarity)to a monitor 2 wires(non-polarity)to a electric door look Video Transmission NTSC or PAL STANDARD. Standard BRACKET CAMERA Sensor Type C-MOS(COLOR) Transmission Full Duplex Minimum Illumination 0.1 Lux(within300mm)
Page 4 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2014.02.105 PM104M000010...
