Qty
1
14
Move to desired location
1. Determine if you can move your machine through the required doorway(s).
2. If the machine fits through the doorway(s), move machine to desired location.
3. Attach rubber feet to each foot of the frame.
4. If weight stacks need to be installed follow procedure for installing weight stacks.
5. If the machine does not fit through the doorway(s) follow doorway procedures below.

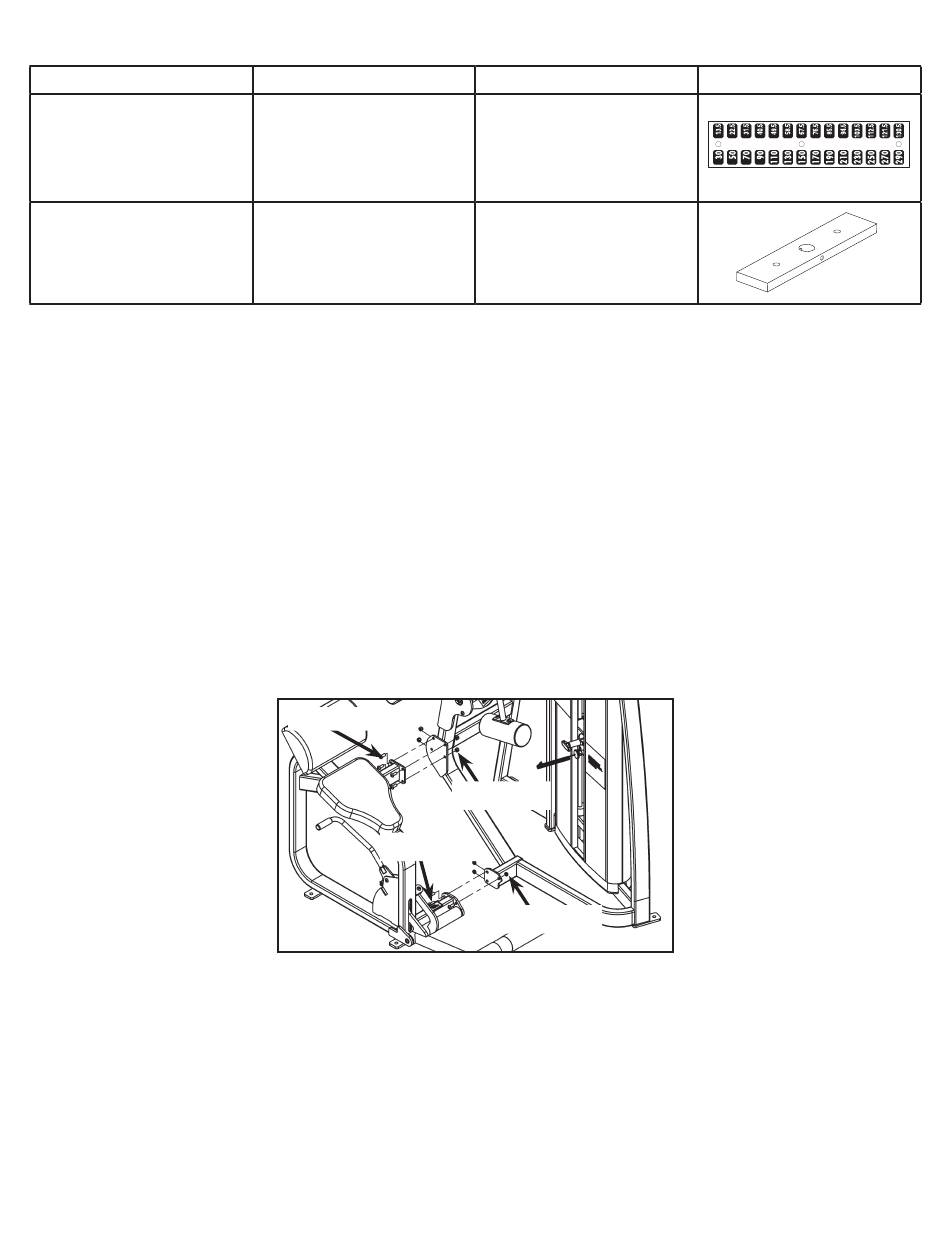

Doorway Instructions
1. Remove each (standard) cone-shaped shipping support using a 3/4" socket or wrench.
2. Remove the seven Button Head Socket Cap Screws (BHSCS) securing the two halves of the
frame.
3. Carefully move each half through the doorway to the desired location.
Cybex Owner's Manual
Part Number
12000-560
4000C101
BHSCS (4)
Locknut (4)
BHSCS (3)
Description
Decal, Weight Plate
(30-290)
Weight Stack Plate
Locknut (3)
9
Diagram
NOTES:
1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD.
HORIZONTAL SCALE 80%.
MATERIAL: EXCEPT AS NOTED
TRACKING -50.
DIMENSIONS REMOVE ALL BURRS
IN INCHES BREAK SHARP EDGES
2. LEFT HAND SIDE - 48 POI NT FUTURA CONDENSED BOLD. THIS NOTE REFERS TO ALL PLASTIC PARTS GENERAL .005/.010 R TITLE:
AND ASSEMBLIES CONTAINING PLASTICS. TOLERANCES: SURFACE FINISH DECAL, WT PLATE (30 - 290)
RAW MATERIAL AND COMPONENTS ON INDICATED PER
SUB-ASSEMBLIES AND ASSEMBLIES MUST 2 DECIMALS ± .03
3 DECIMALS ± .015 ANSI B46.1-1985 DWG. BY DATE
COMPLY WITH EUROPEAN DIRECTIVE
ANGLES ± 1° REMOVE CARBURIZATION REL 9/14/05
RoHS 2002/95/EC.
AND SCALE FROM LASER
FEATURES SHOWN AND PLASMA CUT EDGES CHECKED BY DATE
FINISH:
PERPENDICULAR OR
PARALLEL SHALL BE GENERAL 125
SIZE SCALE SHEET DWG. NO.
SO WITHIN ± 1° MACHINING B 1:1 2 OF 2
OWATONNA
TECH. PUBS. APPR. DATE
BB 9/16/05
MFG. APPR. DATE
12000-560 REV.
