CYBEX Eagle Back Extension Owner's Manual page 13

4. Verify belt and insert are installed properly.
5. Pull belt tight and secure belt to clamp with the two set screws. Torque set screws 300-350
in-lbs.
6. Place weight stack pin in each plate to verify proper installation.
7. Without selecting any resistance, lift top weight up and down (simulating normal operation.)
8. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the
weight belt clamp.
9. ReiInstall the six increment weights that were removed.
10. Turn the Increment Weight Adjusting Knob to select 15 lbs.
Cybex Owner's Manual

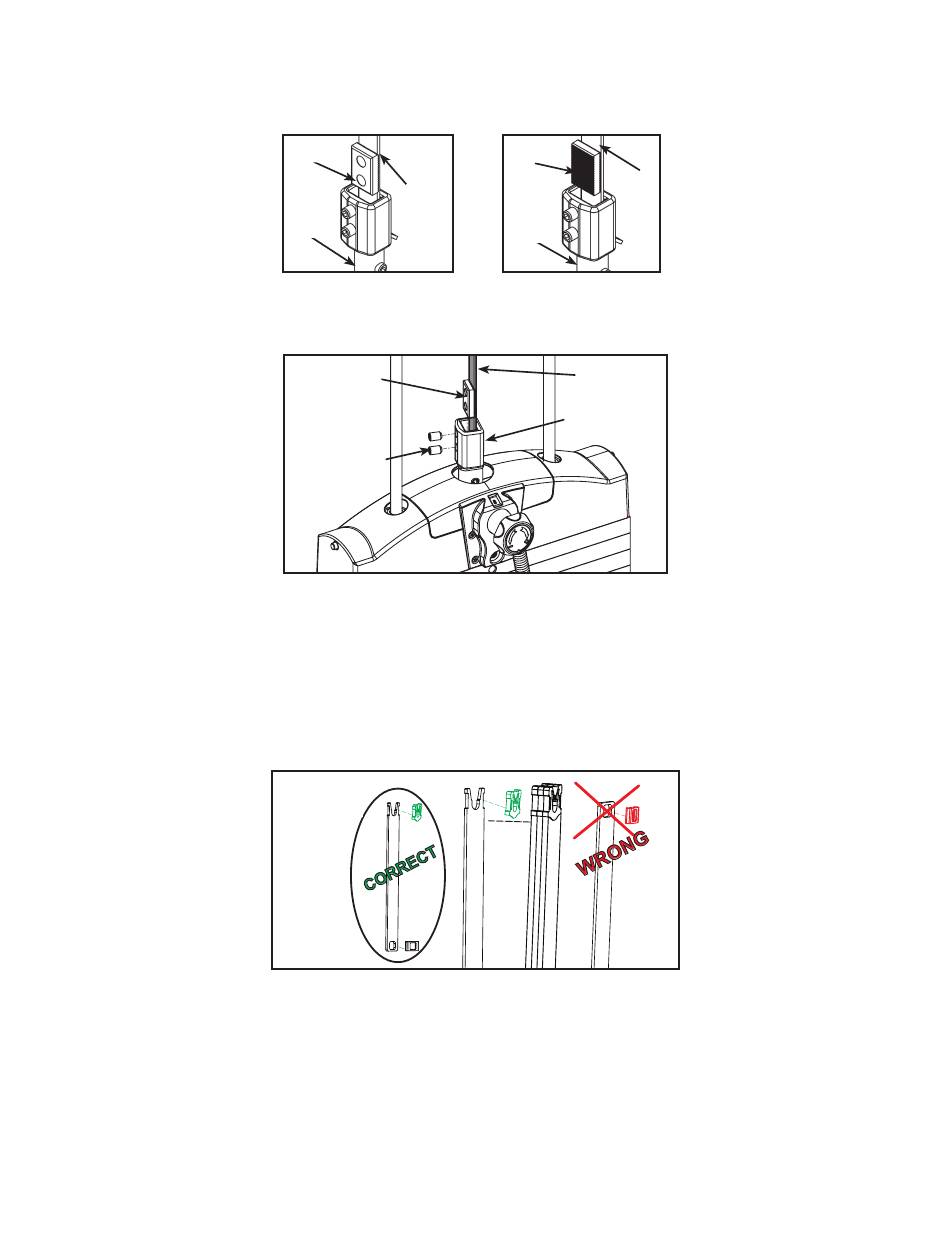

Correct belt routing
Insert
Belt
Stem
Belt clamp
insert
Set screws
Increment
Weights
Wrong belt routing
Insert
Belt
Stem
Belt
Belt clamp
