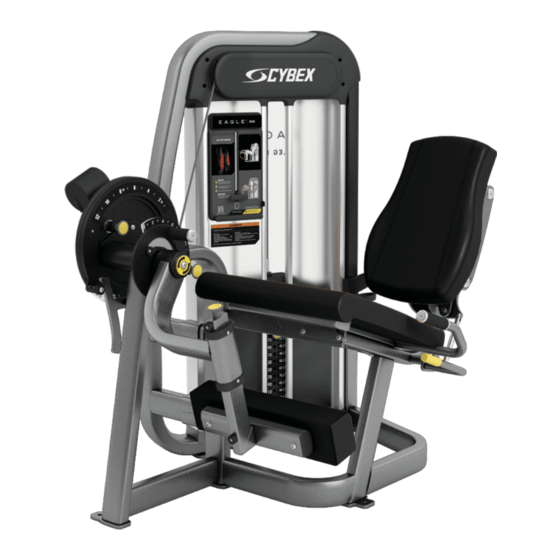

- Page 1 ® Eagle NX Leg Extension Owner's Manual Strength Systems Part Number 20050-999-4 C www.cybexintl.com...
-
Page 2: Table Of Contents
International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 3: Safety Guidelines And Practices
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. -
Page 4: User Safety Precautions
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts. -
Page 5: Warnings And Cautions
Eagle NX Leg Extension Part Number 20050-999-4 C Warnings and Cautions Warning labels indicate a potentially hazardous situation that could result in serious injury or death if the precautions are not observed. Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine if the precautions are not observed. - Page 6 Eagle NX Leg Extension Part Number 20050-999-4 C Description DE000023-X DE000022-X Page 6 of 25...
-
Page 7: Assembly
Eagle NX Leg Extension Part Number 20050-999-4 C Assembly Machine Specifications Total Weight and Size 20050 Leg Extension Weight Machine Dimensions at Rest Machine Dimensions in Use 623 Lbs 50” L × 43” W × 56” H 62” L × 43” W × 56” H 283 Kg 127 cm L ×... -
Page 8: Environment
Eagle NX Leg Extension Part Number 20050-999-4 C Environment Humidity and Static Electricity The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%. -
Page 9: Tools Required
Eagle NX Leg Extension Part Number 20050-999-4 C Part Number Description Diagram 4000C101 Weight Stack Plate Tools Required • 7/32” Allen wrench • 5/16" Allen wrench (2) • 3/4” Socket wrench • Hammer • 3/16” Pin punch • Phillips screwdriver ®... - Page 10 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
- Page 11 Eagle NX Leg Extension Part Number 20050-999-4 C 5. Squeeze sides of top weight cover together and lift up. Description Top weight cover Spiral pin 6. Remove spiral pin connecting cable assembly using a hammer and a 3/16” pin punch.
- Page 12 Eagle NX Leg Extension Part Number 20050-999-4 C 2. Remove four Phillips head screws and plastic mount for guide rod access. Description Top guide rod cap Guide rod Guide rod plate Phillips head screw Plastic mount 3. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if grasp is not released slowly.
- Page 13 Eagle NX Leg Extension Part Number 20050-999-4 C Assemble Frame 1. Apply #242 Loctite to bolts. Description Bolt Connector # 242 Loctite 2. Secure two halves of the frame with the six bolts and three connectors, using a 7/32” Allen wrench.
- Page 14 Eagle NX Leg Extension Part Number 20050-999-4 C 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side.
- Page 15 Eagle NX Leg Extension Part Number 20050-999-4 C 5. Remove front sheet, do not peel decals off of weight plates. Description Weight stack selector pin Weight plate decals 6. Repeat above steps for other half of the weight plate decals.
- Page 16 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
-
Page 17: Exercise
Eagle NX Leg Extension Part Number 20050-999-4 C Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. -
Page 18: Maintenance
Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products. - Page 19 Eagle NX Leg Extension Part Number 20050-999-4 C Then 1. Prepare a solution of 10% household bleach (sodium hypochlorite) and 90% water. Dampen a soft white cloth in the solution. 2. Rub gently on the stained area. 3. Dampen a clean soft cloth in water and rinse area.
-
Page 20: Weekly Procedures
Eagle NX Leg Extension Part Number 20050-999-4 C To Minimize Fine or Hairline Scratches: Mild automotive polish applied and removed with a soft clean cloth will help fill scratches. Suggested Polishes: • Johnson Paste Wax • Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.) •... -
Page 21: Yearly Procedures
Tools Required 9/16" Wrench (2) Four types of cable tension adjustment are used on Cybex Strength Systems: Jam Nut Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment. - Page 22 Eagle NX Leg Extension Part Number 20050-999-4 C Description Qty. Cable end SHCS Jam nut Cable rod end bearing Nylon locknut Page 22 of 25...
-
Page 23: Customer Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard Time. For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239. For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax 508-533-5183. Email address internationaltechhelp@cybexintl.com... -
Page 24: Return Material Authorization (Rma)
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label. - Page 26 10 Trotter Drive, Medway, MA 02053 • 888-462-9239 • 508-533-4300 • FAX 508-533-5183 www.cybexintl.com...
