CYBEX Eagle Back Extension Owner's Manual page 12

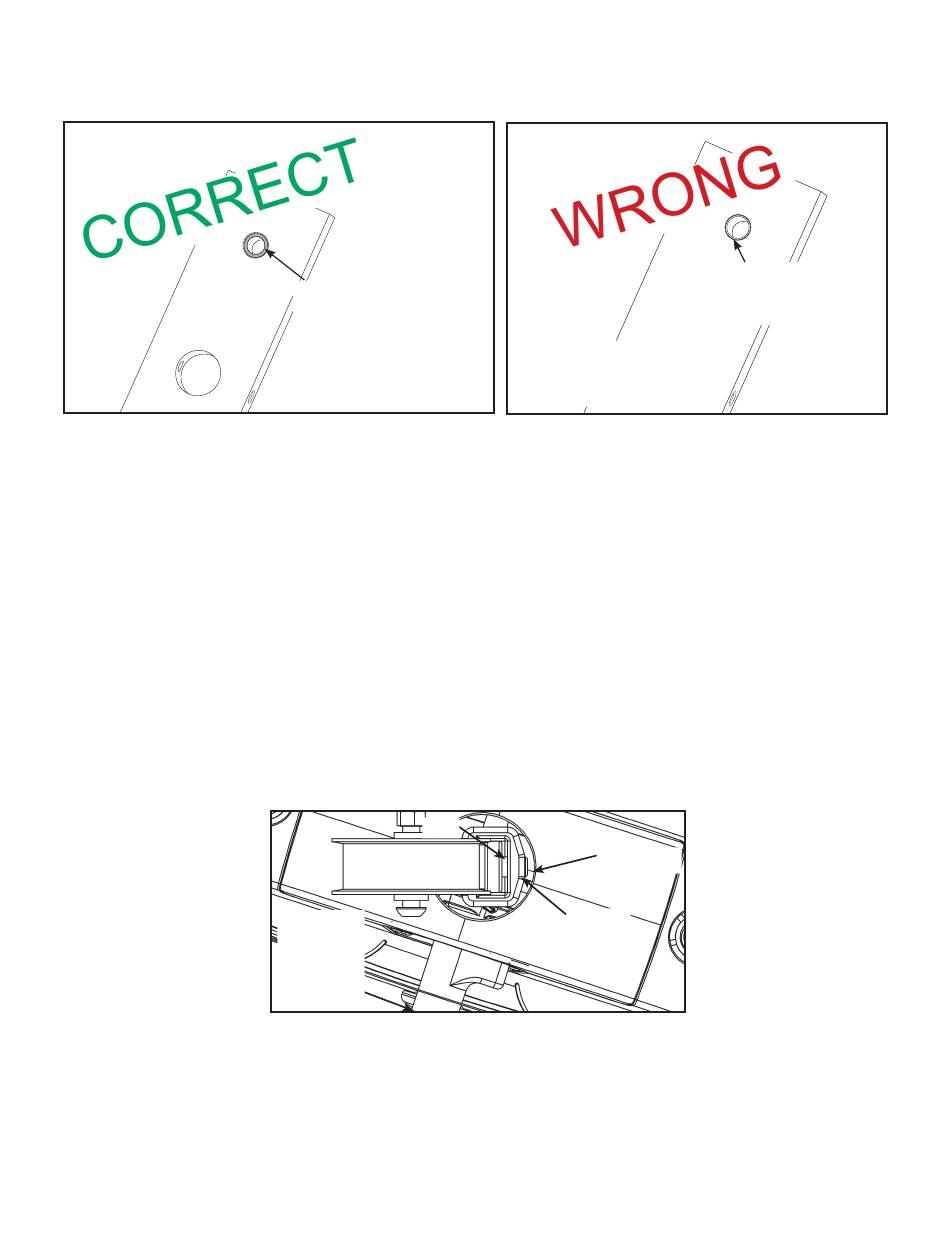

8. Install each weight plate one at a time. When installing weight plates, position plates so wide
edges of bushing face upward and narrow edges of bushing face downward.
9. Slide top weight onto guide rods.
10. Place lower snap ring and wave washer onto guide rod (about 3" from the top end of guide
rod.)
11. Raise guide rod up through mounting hole and install the upper snap ring.
12. Lower guide rod and secure lower snap ring. Repeat for the opposite guide rod.
Belt Routing
1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top
weight.
2. Verify that the position of the belt clamp (on the top weight) is aligned properly with the top
pulley bracket (on the machine.) The belt must have a straight path from the pulley to the belt
clamp. Figure shows the top view, looking from the top pulley down to the top plate.
3. Slide belt through slot in belt clamp.
Cybex Owner's Manual
WIDE bushing
edge faces
upward
Belt
Top Pulley
Increment
Weight
Adjusting
Knob
NOTE: The narrow
bushing edge must
face downward.
Set Screw
Insert
12
NARROW
bushing edge
