Warnings and Cautions

Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor
or moderate injury.

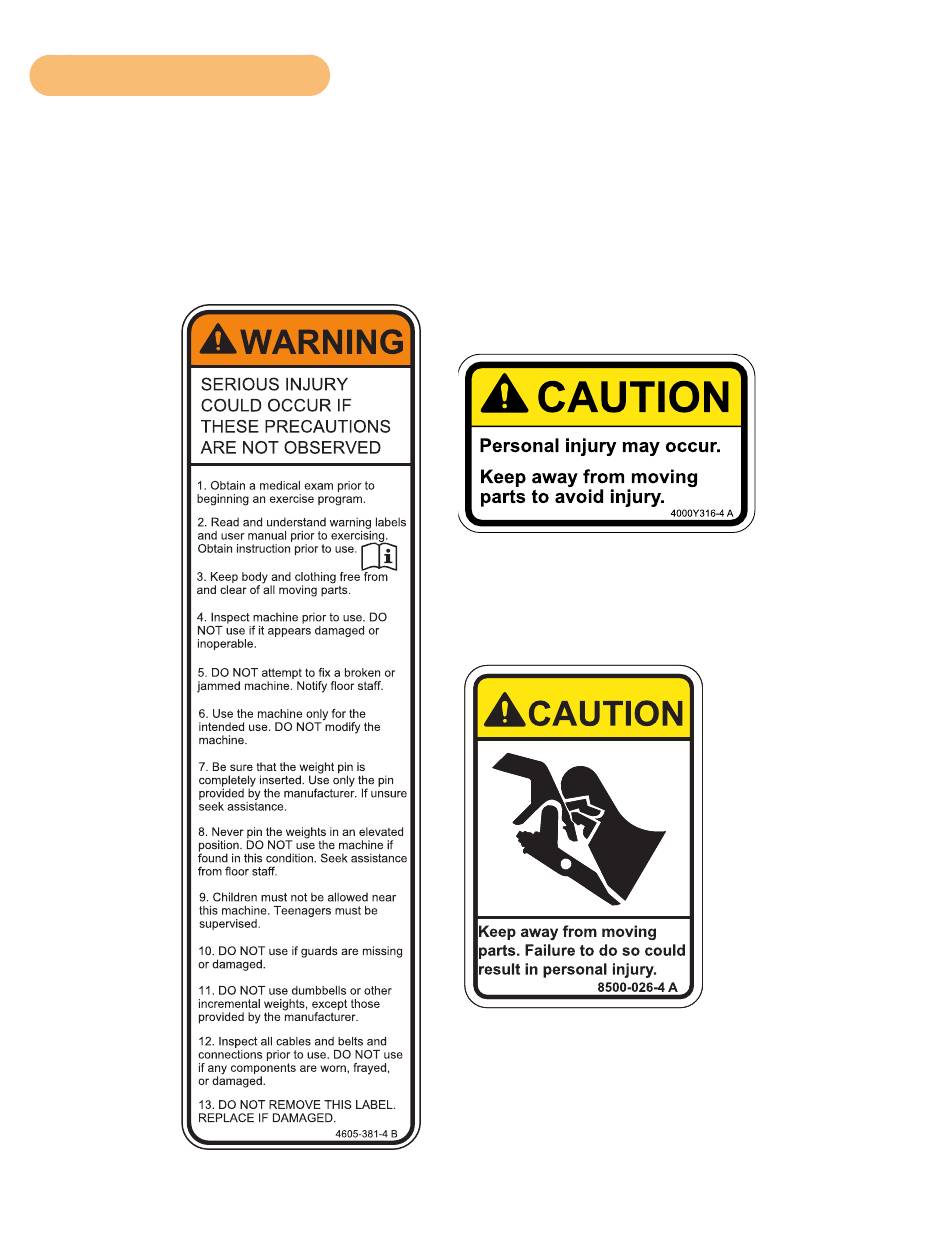

The diagram following the decals show where each decal is located.
R .19
4 PLACES
SAFETY YELLOW MUNSELL 5Y8/12
BACKGROUND. BLACK TRIANGLE
W/ YELLOW EXCLAMATION POINT,
BLACK LETTERS 21 PT ARIAL
BOLD FONT
INSET .06
WHITE
MATERIAL:
THIS NOTE REFERS TO ALL PLASTIC PARTS
AND ASSEMBLIES CONTAINING PLASTICS.
RAW MATERIAL AND COMPONENTS ON
SUB-ASSEMBLIES AND ASSEMBLIES MUST
COMPLY WITH EUROPEAN DIRECTIVE
RoHS 2002/95/EC.
FINISH:
MATERIAL:
NOTE: See Engineering Drawing 4506-381-X for specifications.
