SEA USER 1 - 24V DG R1B Manual

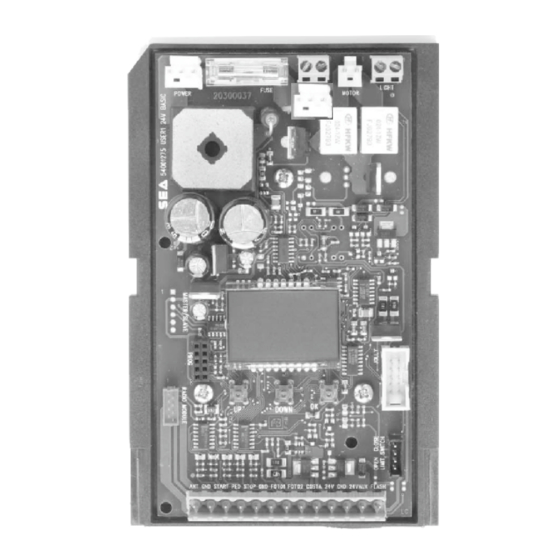

24v electronic control unit for sliding gates and barriers
Hide thumbs

Advertisement

Quick Links

Download this manual
®
Sistemi Elettronici
English
di Apertura Porte e Cancelli
International registered trademark n. 804888
USER 1 - 24V DG R1B
23024055
24V
ELECTRONIC CONTROL UNIT FOR SLIDING GATES AND BARRIERS
SEA S.p.A.
Zona Ind.le S. Atto - 64020 S. Nicolò a Tordino (TE)
Tel. 0861.588341 - Fax 0861.588344
www.seateam.com
e-mail: seacom@seateam.com
67411260
REV. 15 - 11/2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the USER 1 - 24V DG R1B and is the answer not in the manual?

Questions and answers

Related Manuals for SEA USER 1 - 24V DG R1B

Summary of Contents for SEA USER 1 - 24V DG R1B

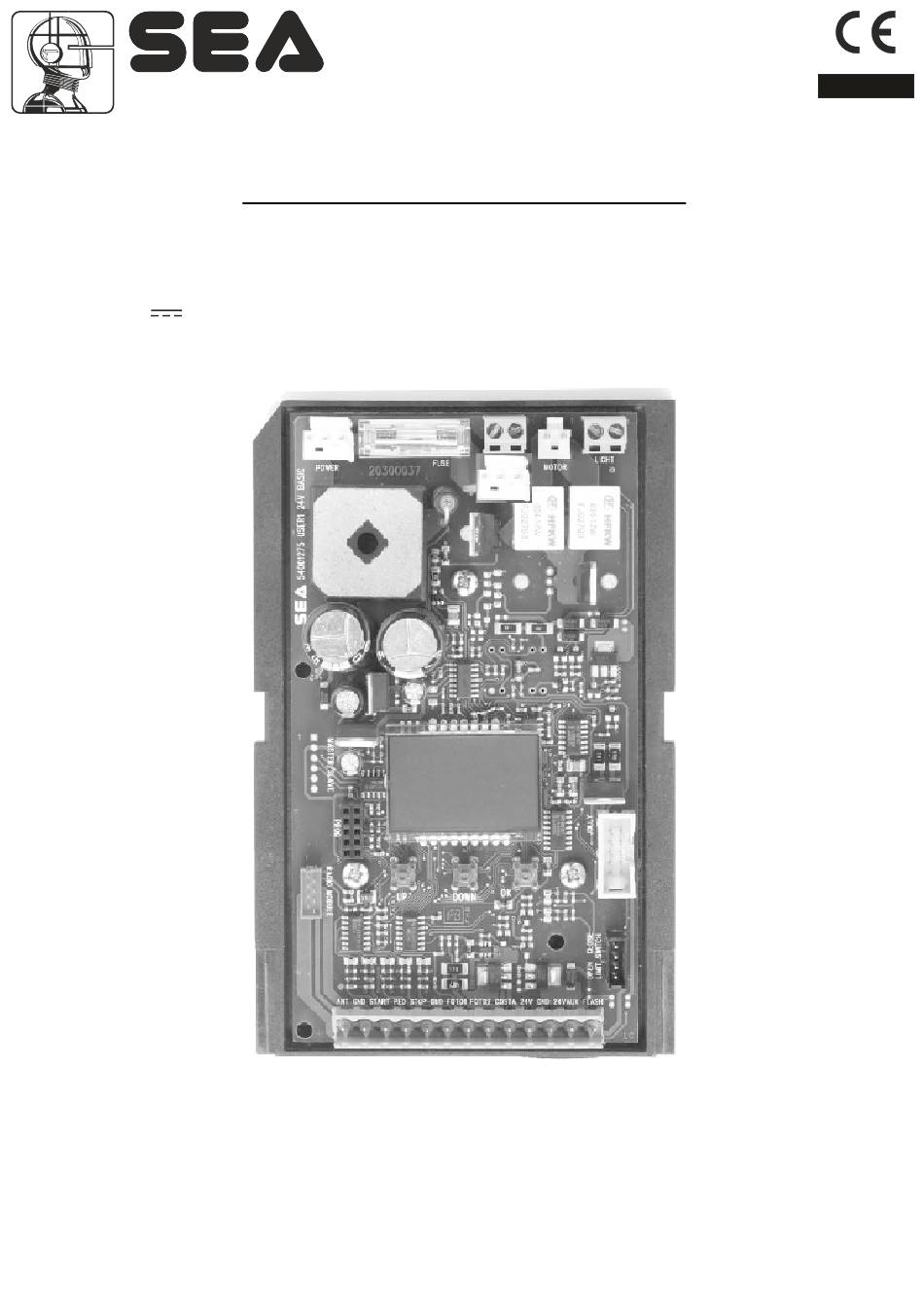

  • Page 1 Sistemi Elettronici English di Apertura Porte e Cancelli International registered trademark n. 804888 USER 1 - 24V DG R1B 23024055 ELECTRONIC CONTROL UNIT FOR SLIDING GATES AND BARRIERS SEA S.p.A. Zona Ind.le S. Atto - 64020 S. Nicolò a Tordino (TE) Tel.

  • Page 2: Description Of The Components

    ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 DESCRIPTION OF THE COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 24 V~ Absorption in stand 30 mA Environment temperature: -20°C +50°C Specifications of external enclosure: 305 x 225 x 125 mm - Ip55 LIGHT FUSE POWER...
  • Page 3 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 CONNECTIONS POWER (CN8) MOTOR (CN6) LIGHT (CN5) 24V (Red) Brown Limit switch Cl.1 (Yellow) White Green Limit switch Op.1 (Green) 24V~ Max 200W Max 100mA Common (White) 9 10 11 12 13 ANT COM START PEDST STOP COM PH1 PH2 EDGE AUX COM (FL)-...
  • Page 4 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 PROGRAMMING FAST SELF-LEARNING “Input check menu" DISPLAY DOWN 1 2 3 4 5 6 7 8 9 10 11 12 13 DOWN Start quick programming Fast self-learning START command by radio control You can start the quick programming by holding UP for 5 s in the “Input check...
  • Page 5 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 PROGRAMMING PROGRAMMING QUICK START BUTTONS MENU MENU LANGUAGE ITALIANO DOWN Skip this step if you do not want to program a transmitter OK to exit Press the Menu or press MENU MENU...
  • Page 6 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 BASIC MENU MENU FUNCTIONS TABLE USER1 24V DG R1B Set value MENU Description Default Italiano Italian English English Français French Italiano 1 - LANGUAGE Español Spanish Dutch Dutch Start...
  • Page 7 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 MENU Description Default Set value Synchronized right motor 5 - REVERSE MOTOR Synchronized left motor Automatic Automatic Open-stop-close-stop-open Step by step type 1 Step by step type 2 Open-stop-close-open Open-stop- 6 - LOGIC...

  • Page 8: Function Logic

    ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 FUNCTION LOGIC AUTOMATIC LOGIC A start impulse opens the gate. A second impluse during the opening will not be accepted. A start impulse during closing reverses the movement. NOTE 1: To have the automatic closing it is necessary to set a pause time, otherwise all the logic will be semi-automatic.
  • Page 9 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SPECIAL MENU PRESS AT THE SAME TIME FOR 5 S TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE USER 1 24V DG R1B For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 10 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Default Set Value MENU SP Description Retrieves the inertia of the 70 - OPENING POSITION motor in opening after Stop 0 15 RECOVERY or reversing Retrieves the inertia of the 71 - CLOSING POSITION motor in closing after Stop 0 15...
  • Page 11 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 MENU SP Description Default Set Value AUX output always Always p o w e r s u p p l i e d output active In cycle only during cycle AUX output power sup- Opening...
  • Page 12 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 MENU SP Description Default Set Value Closing Photocell active in closing Opening and closing Active in opening and closing The photocell stops in closing Stop and close and closes when released The photocell is active Stop...
  • Page 13 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 MENU SP Description Default Set Value For applications with two motors in master-slave, it Master allows to set the control unit as master For applications with two 105 - MASTER-SLAVE motors in master-slave, Slave...
  • Page 14 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 INPUT CHECK MENU The settings of the control unit are made through the UP, DOWN and OK buttons. The UP and DOWN buttons to scroll through the MENUS and SUBMENUS. By pressing OK you enter from MENU into SUBMENU and confirm the choice.
  • Page 15 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. With RF UNI and RF UNI PG module it will be possible to use both Coccinella Roll Plus transmitters and radio transmitters with fixed code.
  • Page 16 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections + = 24V (Accessories) max 750mA COM = 0V PH1 = Photocell contact 1 PH2 = Photocell contact 2 Note: Self-test: connect the TX to the AUX clamp and activate the Autotest function.
  • Page 17 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 WARNING LAMP - SAFETY EDGE - 10K PHOTOCELL - BUZZER Example of flashing lamp and edge FLASHING LAMP 3W MAX 12 and 13 connections Flashing Lamp 24V (Accessories) 3W max.
  • Page 18 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SAFETY LOOP CONNECTIONS DRAWING SHOWS HOW TO EVENTUALLY CONNECT THE MAGNETIC LOOP 1 2 3 4 5 6 7 8 9 10 11 12 13 C C2 C1 = CONTACT OPEN Safety exit loop (loop 1) C2 = CONTACT CLOSED...

  • Page 19: External Receiver

    ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 CONNECTION OF BATTERIES TO BATTERY CHARGER CARD E SUN Q E SUN Code 23101104 Code 23101105 = charge 200mA = charge 200mA = charge 360mA = charge 360mA = charge 800mA = charge 800mA PSOL GND...

  • Page 20: Master-Slave Function

    2) Once sure of the correct functioning connect the control unit MASTER to the control unit SLAVE through the special clamp (Code SEA 23001220). 3) Now set the control unit, which has to manage the commands and motor 1 (photocell, keyswitch, STOP, safety edge etc.) as MASTER and the other one which will move motor 2 as SLAVE.

  • Page 21: Motor Power Supply

    The first movement in selflearning must always be executed in closing. ATTENTION: When using SEA magnetic limit switches, make sure that the motor is set on “Magnetic” present in the special menu 104-SELECT LIMIT SWITCH.
  • Page 22 If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 23 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 ALARM DESCRIPTION Signals Kind of alarm Solutions Motors current Make sure there are no short circuits on the motor or on the FAILURE MOTOR failure control unit 24V Power supply Make sure there are no short circuits on the wiring or on the FAILURE24...

  • Page 24: Troubleshooting

    ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 TROUBLESHOOTING Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check the connections or the jumpers on the connections of Operator doesn’t respond to a) Check the connected N.C.
  • Page 25 ® English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check all Open inputs for an active input a) Open control active b) Check pause settings Gate opens, but will not close b) Pause not set...
  • Page 26 Materials handling must be made with appropriate vehicles.. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation.
  • Page 27 5. Do not install the equipment in an explosive atmosphere. 6. SEA S.p.A. is not responsible for failure to observe Good Techniques in the construction of the locking elements to motorize, or for any deformation that may occur during use.
  • Page 28 The recognized defects, whatever their nature, shall not produce any responsibility and/or damage claim on the part of the Buyer against SEA. The guarantee is in no case recognized if changes are made to the goods, or in the case of improper use, or in the case of tampering or improper assembly, or if the label affixed by the manufacturer has been removed including the SEA registered trademark No.
  • Page 29 International registered trademark n. 804888 Dichiarazione di conformità Declaration of Conformity La SEA S.p.A. dichiara che, con l’installazione degli adeguati dispositivi di sicurezza e di filtraggio disturbi, il prodotto: SEA S.p.A. declares that by installing the appropriate safety equipment and noise filtering the product:...
  • Page 30 Cet article a été produit suivant des procédures d'usinage strictes et il a singulièrement été testé afin de garantir les plus hauts niveaux de qualité pour votre satisfaction. Nous vous remercions d'avoir choisi SEA. Este articulo ha sido producido siguiendo rigidos procedimientos de elaboracion y ha sido probando singolarmente a fin de garantizar los mas altos inveles de calidad y vuestra satisfaccion.
  • Page 31 ® Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Note - Notes - Note - Notas - Anmerkung...
  • Page 32 ® Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SEA S.p.A. Zona industriale 64020 S.ATTO Teramo - (ITALY) Tel. +39 0861 588341 r.a. Fax +39 0861 588344 www.seateam.com seacom@seateam.com...
