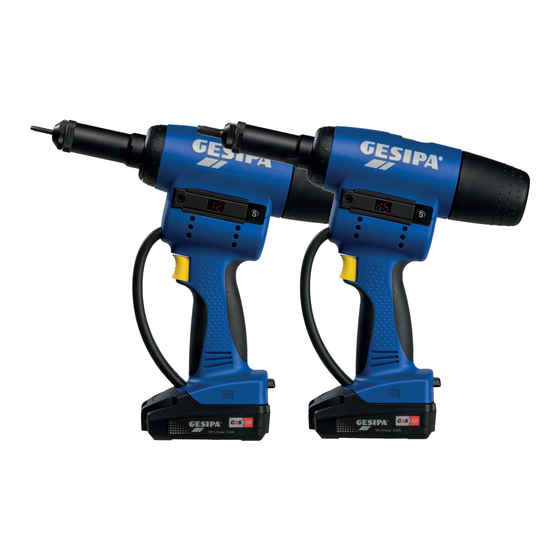

Gesipa FireBird Pro Operating Instructions Manual
Battery powered blind rivet nut setting tool
Hide thumbs
Also See for FireBird Pro:
- Operating instructions with spare parts list (228 pages) ,
- Operating instructions manual (214 pages) ,
- Operating instructions with spare parts list (19 pages)
Table of Contents
Advertisement
Quick Links

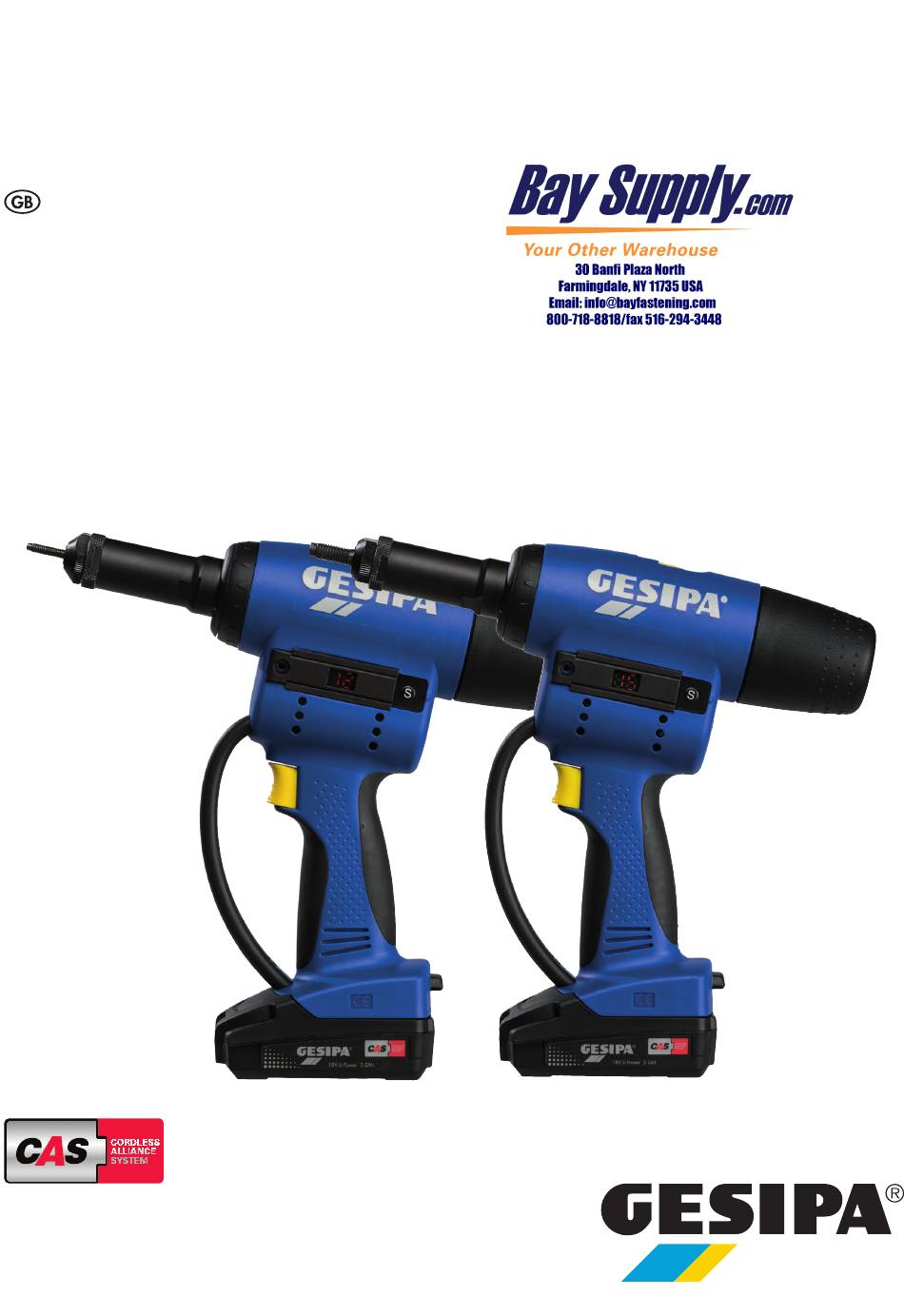

FireBird
Akku-Blindnietmutternsetzgerät
Betriebsanleitung
Battery powered blind rivet nut setting
tool
Operating instructions
Outil de pose d'écrous aveugles à batterie
Mode d'emploi
Remachadora a batería de tuercas
remachables
Manual de instrucciones
Inseritore di inserti filettati a batteria
Istruzioni per l'uso
Accu-blindklinkmoerpistool
Handleiding
GESIPA Blindniettechnik GmbH
Nordendstraße 13-39
64546 Mörfelden-Walldorf
Germany
Pro / FireBird
®
Akumulátorové nýtovací nářadí pro
.gesipa.com
Pro GE
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gesipa FireBird Pro
Summary of Contents for Gesipa FireBird Pro
- Page 1 Outil de pose d‘écrous aveugles à batterie Mode d‘emploi Remachadora a batería de tuercas remachables Manual de instrucciones Inseritore di inserti filettati a batteria Istruzioni per l‘uso Akumulátorové nýtovací nářadí pro Accu-blindklinkmoerpistool Handleiding GESIPA Blindniettechnik GmbH Nordendstraße 13-39 64546 Mörfelden-Walldorf Germany .gesipa.com...
- Page 3 Item Description Fig. Threaded mandrel 1; 3; 4 Nosepiece 1; 3; 4 Lock nut 1; 3; 4 Hanger Locking screw Cover Display 1; 3 Lighting Switch Slide Threaded mandrel length Gewindedornlänge Longueur du mandrin fileté filettato...
- Page 4 Seite 8-20 Deutsch ............Page 21-31 English ............Страница...
-
Page 5: Table Of Contents
Table of Contents FireBird Pro GE / FireBird Pro GE blind rivet nut setting tool ......22 ® ® 1.1 Working range ....................22 1.2 Equipment / accessories ................22 1.3 Technical data ....................23 1.4 Safety instructions ..................23 1.5 Start-up .......................24 1.6 Lighting .......................24 1.7 Maintenance ....................24 1.8 Storage .......................24 Functional principle ...................25... -
Page 6: Firebird ® Pro Ge / Firebird ® Pro Ge Blind Rivet Nut Setting Tool
FireBird Pro GE / FireBird Pro GE blind rivet nut setting tool ® ® Working range FB GE FB GE FB GE FB GE FB GE FB GE FB GE Steel FB GE FB GE FB GE FB GE FB GE FB GE FB GE Stainless... -
Page 7: Technical Data
Technical data Weight approx. 2.4 kg (incl. 2.0 Ah rechargeable battery and nosepiece/man- drel magazine) Max. setting stroke 10 mm Drive Brushless DC motor Tensile strength 15 kN for FB Pro 20 kN for FB Pro GE Noise emissions LPA 76.5 dB (A), measurement uncertainty K = 3 dB Vibration <... -
Page 8: Start-Up
Maintenance of the blind rivet nut setting tool is limited to the replacement of worn threaded mandrels and nosepieces, as necessary (see section 2.1 for replacement of the threaded mandrels). Regular maintenance will extend the service life of your high-quality GESIPA tools ®... -
Page 9: Functional Principle
The appropriate numerical value can be selected in the quick setting guide, depending on the blind rivet nut size and blind rivet nut material. (e.g. M5 - steel Guide value for the setting force 45) These guide values have been determined using GESIPA blind rivet nuts. ®... - Page 10 Excerpt from the quick setting guide: Steel Stainless steel 2. Set the selected setting value on the display Wake up the tool by briefly pressing switch I. Important! Threaded mandrel A turns when the switch is pressed! Hold the tool only at the handle. Remove cover F, then set the selected value on the display G by pressing the plus or minus buttons.
-
Page 11: Saving And Loading The Setting Force
Saving and loading the setting force The FireBird Pro (GE) is able to save the set force value to its integrated program memory ® and to load it again wherever necessary. Save the numerical values as follows: • Determine and set the numerical value to be programmed (see section 2.3). •... -
Page 12: Manual Unscrewing Of The Blind Rivet Nut
Manual unscrewing of the blind rivet nut Manual unscrewing of a blind rivet nut may be necessary if: • The blind rivet nut was not screwed on straight before the setting operation, or the thread of the blind rivet nut or threaded mandrel 1 is defective; •... -
Page 13: Troubleshooting
Troubleshooting Blind rivet nut is not screwed on Possible causes Corrective measures Nut thread defective Use new nut Threaded mandrel defective Replace threaded mandrel (section 2.1) Nut does not rest against nose- Threaded mandrel length x incorrect; adapt to nut length (section 2.2) piece Nut unscrews again Hold switch I pressed until the tool comes to a standstill (section 2.5) -
Page 14: Repairs
After this reference run, start operation as described in section 1.5. Starting operation after a repair without carrying out a manual reference run can result in serious damage to the blind rivet nut setting tool. You can find the current spare parts list for your tool online at www.gesipa.com. -
Page 15: Warranty
Warranty The latest version of the warranty conditions that can be viewed under the following link: www. gesipa.com/agb shall apply. Declaration of conformity We hereby declare that the tool described below, due to its design and construction, and in the version as placed by us on the market, complies with the relevant fundamental safety and health requirements of the EC directives.
