Summary of Contents for Gesipa GBM 95

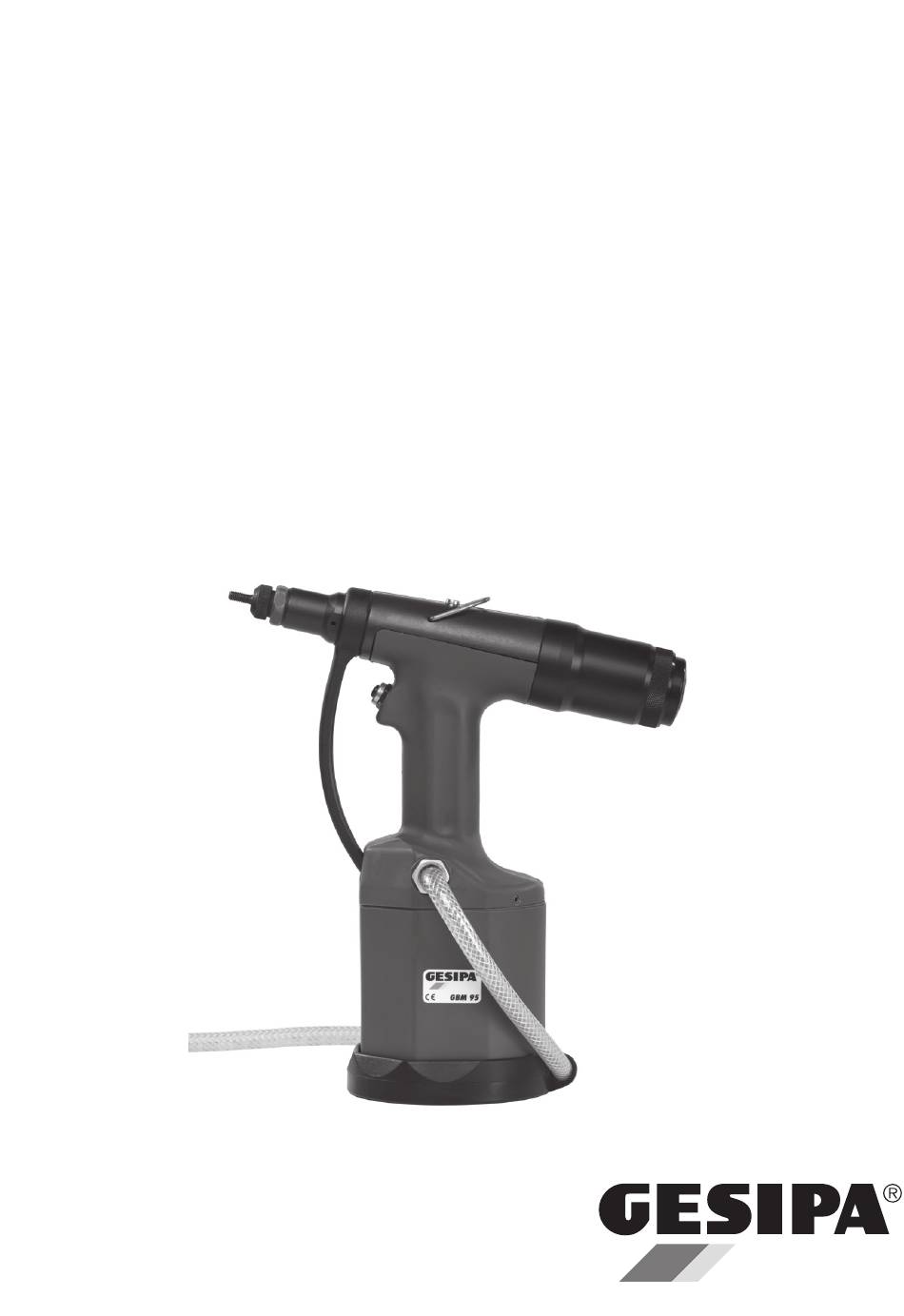

  • Page 1 GBM 95 GESIPA Blindniettechnik GmbH T +49 (0) 6105 962 0 Nordendstraße 13-39 F +49 (0) 6105 962 287 64546 Mörfelden-Walldorf info@gesipa.com Germany www.gesipa.com...
  • Page 4 143 5213 143 5243 143 5214 M4 & 8-32“ 145 7556 143 5215 M5 & 10-32“ 145 7553 143 5216 145 7576 143 5217 M8 & 5/16-18“ 145 7577 143 5218 M10 & 3/8-16“ 145 7554 143 5148 1/4-20“ 144 5813 143 5207 145 7552 143 5208...
  • Page 5: Table Of Contents

    Table of Contents Use in accordance with the operating instructions ........16 Safety instructions ..................16 Working range ....................16 Technical data ....................16 Equipment and accessories ................17 Starting procedure ..................17 6.1 Adjustment of mandrel length "X" ...............17 6.2 Adjustment of stroke "Y" ................18 6.3 Threading-on and setting of a blind rivet nut ..........19 6.4 Change of threaded mandrel ..............20 6.5 Change of unthreading time ...............20...
  • Page 6: Use In Accordance With The Operating Instructions

    Use in accordance with the operating instructions The tool should be used only in accordance with these operating instructions for setting blind rivet nuts. The safety instructions must be followed! Safety instructions • The tool is to be used only for setting blind rivet nuts. •...
  • Page 7: Equipment And Accessories

    Equipment and accessories Threaded mandrel and nosepieces: M6 in working position Alternatively also M3, M4, M5, M8 and M10 Tools: Universal maintenance wrench MSU Pin spanner Ø 42 Hexagon screw driver SW 4 mm Hexagon ball-end driver SW 2.5 mm Other: Assembly rod Hydraulic oil refill bottle...
  • Page 8: Adjustment Of Stroke "Y

    Adjustment of stroke "Y" The stroke «Y» (see chart) depends on the blind rivet nut size (M3 to M10, 6-32 to 3/8-16) and the material thickness «Z» (drawing 2). Stroke chart for GBM 95: Thread size Stroke min. "Y" mm max.
  • Page 9: Threading-On And Setting Of A Blind Rivet Nut

    Threading-on and setting of a blind rivet nut • Place the rivet nut in front of the threaded mandrel (2) (see drawing 3) without tilting and push the thread-on button (35). • Hold the blind rivet nut during the entire threading process until it fits tightly against the nosepiece (1). • Insert the blind rivet nut into the workpiece, ensuring that the fastener´s head is fully sea- ted.
  • Page 10: Change Of Threaded Mandrel

    Change of threaded mandrel • Disconnect tool from compressed air supply. • Loosen lock nut (3) (drawing 1). • Unscrew nosepiece (1). • Unscrew threaded mandrel (2) by turning backward and forward until mandrel releases. • Screw in new threaded mandrel. •...
  • Page 11: Repairs

    In case of doubt, always send the blind rivet setting tool back to the supplier or to GESIPA ® Environmental notes Used hydraulic oil must be disposed of in accordance with recycling regulations.
  • Page 12: Warranty

    11. Warranty The applicable terms and conditions of warranty shall apply and can be viewed under fol- lowing link: www.gesipa.com/agb 12. Conformity declaration We hereby declare that the design and construction of the tool named below, as well as the version that we have put on the market, complies with applicable fundamental health and safety requirements stipulated in EU directives. Tool modifications made without our authori-...
