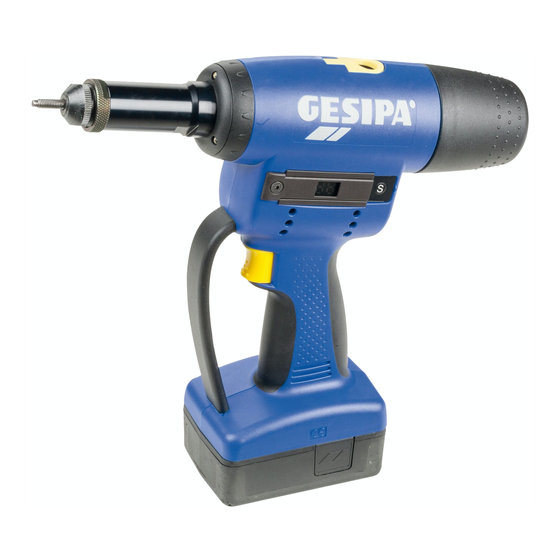

Gesipa FireBird Pro Operating Instructions Manual
Battery powered blind rivet nut setting tool
Hide thumbs
Also See for FireBird Pro:
- Operating instructions with spare parts list (228 pages) ,
- Operating instructions manual (214 pages) ,
- Operating instructions with spare parts list (19 pages)
Table of Contents
Advertisement
Quick Links

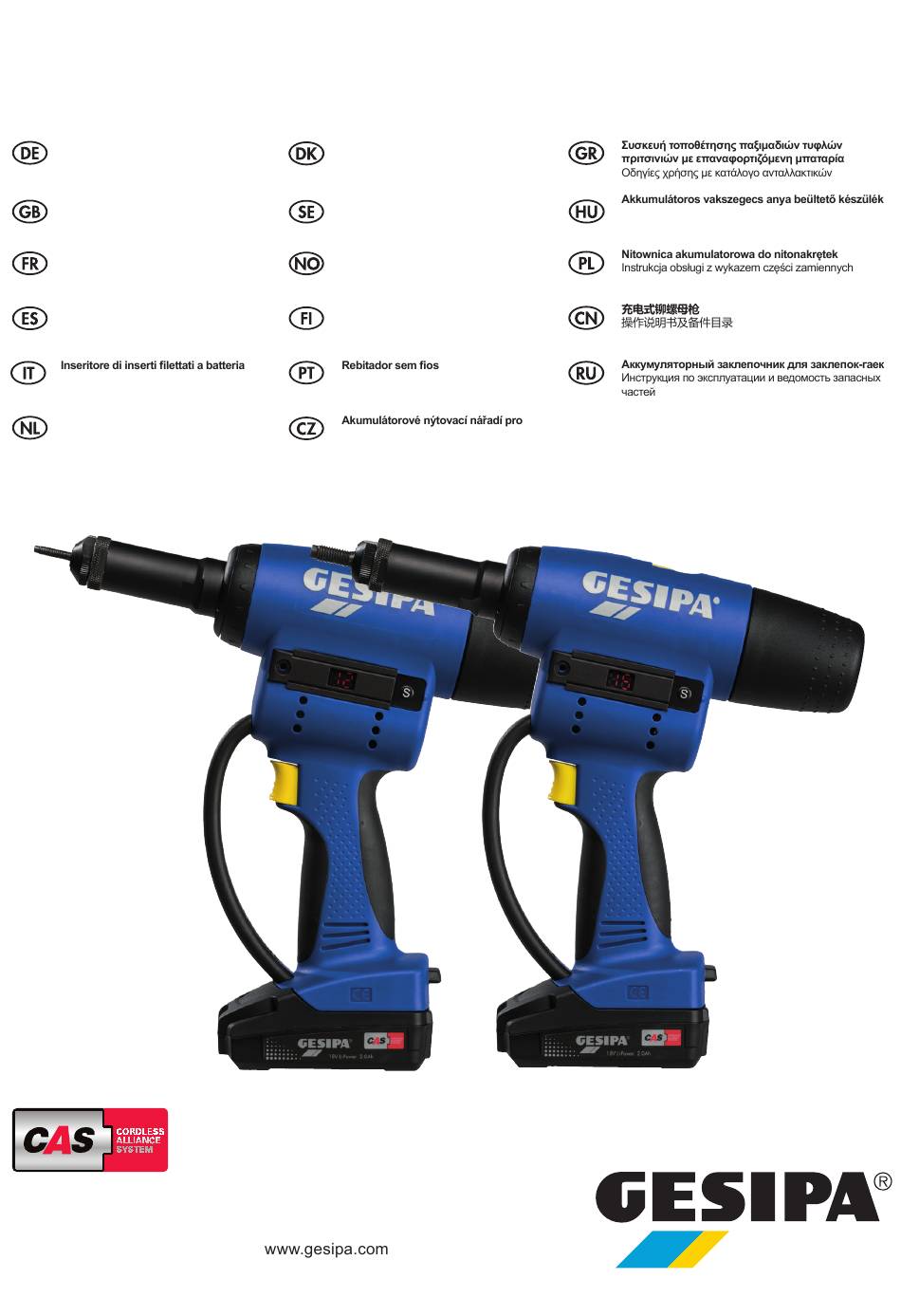

FireBird
Akku-Blindnietmutternsetzgerät
Betriebsanleitung
Battery powered blind rivet nut setting
tool
Operating instructions
Outil de pose d'écrous aveugles à batterie
Mode d'emploi
Remachadora a batería de tuercas
remachables
Manual de instrucciones
Istruzioni per l'uso
Accu-blindklinkmoerpistool
Handleiding
GESIPA Blindniettechnik GmbH
Nordendstraße 13-39
64546 Mörfelden-Walldorf
Germany
Pro / FireBird
®
Ledningsfrit blindnittemøtrik-
isætningsapparat
Brugsanvisning
Batteridriven blindnitmutterpistol
Bruksanvisning
Oppladbart batteri for pistol til setting
av blindnaglemuttere
Brukerhåndbok
Akkukäyttöinen niittimutterityökalu
Käyttöohje
Instruções de serviço
nýtovací matice
Návod k obsluze
T +49 (0) 6105 962 0
F +49 (0) 6105 962 287
info@gesipa.com
Pro GE
®
Üzemeltetési útmutató alkatrészlistával
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gesipa FireBird Pro
Summary of Contents for Gesipa FireBird Pro
- Page 1 Akkukäyttöinen niittimutterityökalu Käyttöohje remachables Manual de instrucciones Instruções de serviço Istruzioni per l‘uso Accu-blindklinkmoerpistool nýtovací matice Handleiding Návod k obsluze GESIPA Blindniettechnik GmbH T +49 (0) 6105 962 0 Nordendstraße 13-39 F +49 (0) 6105 962 287 64546 Mörfelden-Walldorf info@gesipa.com Germany...
- Page 3 Pos. Bezeichnung Abb. Item Description Fig. Pos. Désignation Fig. 1; 3; 4 Threaded mandrel 1; 3; 4 1; 3; 4 Mundstück 1; 3; 4 Nosepiece 1; 3; 4 Embouchure 1; 3; 4 Lock nut 1; 3; 4 Contre-écrou 1; 3; 4 Kontermutter 1;...
-
Page 4: Table Of Contents
Table of Contents FireBird Pro GE / FireBird Pro GE blind rivet nut setting tool ......22 ® ® 1.1 Working range ....................22 1.2 Equipment / accessories ................22 1.3 Technical data ....................23 1.4 Safety instructions ..................23 1.5 Start-up .......................24 1.6 Lighting .......................24 1.7 Maintenance ....................24 1.8 Storage .......................24 Functional principle ...................25... -
Page 5: Firebird ® Pro Ge / Firebird ® Pro Ge Blind Rivet Nut Setting Tool
FireBird Pro GE / FireBird Pro GE blind rivet nut setting tool ® ® Working range FB GE FB GE FB GE FB GE FB GE FB GE FB GE Steel FB GE FB GE FB GE FB GE FB GE FB GE FB GE Stainless... -
Page 6: Technical Data
Technical data Weight approx. 2.4 kg (incl. 2.0 Ah rechargeable battery and nosepiece/man- drel magazine) Max. setting stroke 10 mm Drive Brushless DC motor Tensile strength 15 kN for FB Pro 20 kN for FB Pro GE Noise emissions LPA 76.5 dB (A), measurement uncertainty K = 3 dB Vibration <... -
Page 7: Start-Up
Maintenance mandrels and nosepieces, as necessary (see section 2.1 for replacement of the threaded mandrels). Regular maintenance will extend the service life of your high-quality GESIPA tools ® which should be serviced at least every 2 years by an authorised workshop or by GESIPA ®... -
Page 8: Functional Principle
The appropriate numerical value can be selected in the quick setting guide, depending on the blind rivet nut size and blind rivet nut material. (e.g. M5 - steel Guide value for the setting force 45) These guide values have been determined using GESIPA blind rivet nuts. ®... - Page 9 Steel Stainless steel 2. Set the selected setting value on the display Remove cover F, then set the selected value on the display G by pressing the plus or minus buttons. Pressing the plus button increases the numerical value. Pressing the minus button merical value changes in increments of 10.
-
Page 10: Saving And Loading The Setting Force
Saving and loading the setting force The FireBird Pro (GE) is able to save the set force value to its integrated program memory ® Save the numerical values as follows: • Determine and set the numerical value to be programmed (see section 2.3). •... -
Page 11: Setting A Blind Rivet Nut
Manual unscrewing of the blind rivet nut • of the blind rivet nut or threaded mandrel 1 is defective; • ring. after removing the accessory magazine (Figure 5), if necessary. Carefully loosen threa- value as described in section 2.3. Setting a blind rivet nut •... -
Page 12: Troubleshooting
Troubleshooting Blind rivet nut is not screwed on Possible causes Corrective measures Nut thread defective Threaded mandrel defective Replace threaded mandrel (section 2.1) Nut does not rest against nose- Threaded mandrel length x incorrect; adapt to nut length (section 2.2) piece Battery is discharged Charge the battery... -
Page 13: Repairs
Failure to observe the assembly and setting instructions and operation by non-skilled personnel may result in serious damage to the supplier or to GESIPA ® ries (e.g. extension units, angle heads) are used, it is mandatory to carry out a manual referen-... -
Page 14: Warranty
Warranty gesipa.com/agb shall apply. Declaration of conformity and health requirements of the EC directives. Any modification of the device not approved by supplied must be observed. This document must be available at all times. FireBird ® FireBird Pro Gold Edition ®... - Page 15 Ihr Fachhändler Deres forhandler Az Ön szaküzlete Din återförsäljare Dystrybutor Cachet du revendeur Deres forhandler Vendedor autorizado Jälleenmyyjä Rivenditore autorizzato O vosso distribuidor Uw vakhandelaar...
