Gesipa FireBird Pro Operating Instructions With Spare Parts List

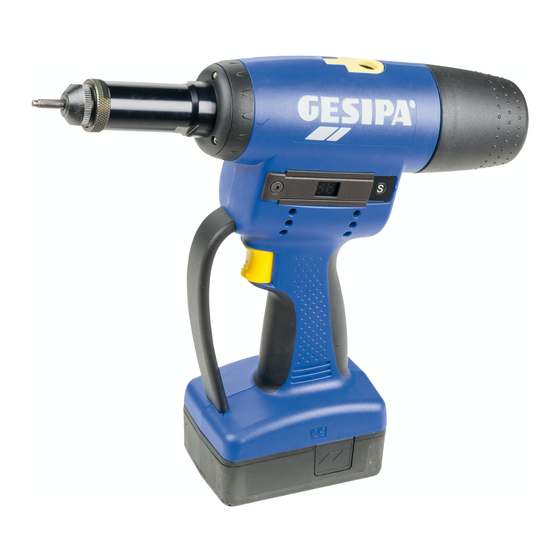

Battery powered blind rivet nut setting tool
Hide thumbs Also See for FireBird Pro:
Table of Contents

Advertisement

Quick Links

FireBird
Akku-Blindnietmutternsetzgerät
Betriebsanleitung mit Ersatzteilliste
Battery powered blind rivet nut setting
tool
Operating instructions with spare parts list
Outil de pose d'écrous aveugles à batterie
Mode d'emploi avec liste des pièces de
rechange
Remachadora a batería de tuercas
remachables
Manual de instrucciones con lista de
recambios
Inseritore di inserti filettati a batteria
Istruzioni per l'uso con lista ricambi
Accu-blindklinkmoerpistool
Handleiding met onderdelenlijst
GESIPA Blindniettechnik GmbH
Nordendstraße 13-39
64546 Mörfelden-Walldorf
Germany
FireBird
Ledningsfrit blindnittemøt-
rik-isætningsapparat
Brugsanvisning med
reservedelsliste
Batteridriven blindnitmutterpistol
Bruksanvisning med reservdelslista
Oppladbart batteri for pistol til setting
av blindnaglemuttere
Brukerhåndbok med reservedelsliste
Akkukäyttöinen niittimutterityökalu
Käyttöohje ja varaosaluettelo
Rebitador sem fios
Instruções de serviço com lista
de peças sobressalentes
Akumulátorové nýtovací nářadí pro
nýtovací matice
Návod k obsluze se seznamem
náhradních dílů
T +49 (0) 6105 962 0
F +49 (0) 6105 962 287
info@gesipa.com
www.gesipa.com
Pro
®
Pro GE
®
Συσκευή τοποθέτησης παξιμαδιών τυφλών
πριτσινιών με επαναφορτιζόμενη μπαταρία
Οδηγίες χρήσης με κατάλογο ανταλλακτικών
Akkumulátoros vakszegecs anya beültető készülék
Üzemeltetési útmutató alkatrészlistával
Nitownica akumulatorowa do nitonakrętek
Instrukcja obsługi z wykazem części zamiennych
充电式铆螺母枪
操作说明书及备件目录
Аккумуляторный заклепочник для заклепок-гаек
Инструкция по эксплуатации и ведомость запасных
частей

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireBird Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gesipa FireBird Pro

Summary of Contents for Gesipa FireBird Pro

  • Page 1 Akumulátorové nýtovací nářadí pro Accu-blindklinkmoerpistool nýtovací matice Handleiding met onderdelenlijst Návod k obsluze se seznamem náhradních dílů GESIPA Blindniettechnik GmbH T +49 (0) 6105 962 0 Nordendstraße 13-39 F +49 (0) 6105 962 287 64546 Mörfelden-Walldorf info@gesipa.com Germany...
  • Page 4 Ersatzteile Reservedele Ανταλλακτικά Spare Parts Reservdelar Alkatrészek Pièces de rechange Reservedeler Części zamienne Piezas de repuesto Varaosaluettelo 备件 Lista dei pezzi di ricambio Peças sobressalentes Запчасти Onderdelen Náhradní díly...
  • Page 5 143 6221 143 5082 143 6222 143 5084 143 6223 144 5793 143 6193 143 5084 143 6214 143 5085 143 6215 144 5794 143 6216 143 5086 145 8123 144 5795 143 6247 152 4564 145 0851 144 5797 1524566 144 5798 149 9358...

  • Page 6: Table Of Contents

    Table of Contents Overview (see Fig. 1 - 5) .................21 Blind rivet nut setting tool FireBird Pro / FireBird Pro GE ......21 ® ® 2.1 Use for intended purpose ................21 2.2 Safety information ..................22 2.3 Working range ....................22 2.4 Technical data ....................23 2.5 Equipment / accessories ................23 Start-up ......................23 3.1 Changing the threaded mandrel (Fig.

  • Page 7: Overview (See Fig. 1 - 5)

    Overview (see Fig. 1 - 5) Item Description Fig. Threaded mandrel 1; 3; 4 Nosepiece 1; 3; 4 Lock nut 1; 3; 4 Hanger 1; 2; 5 Locking screw 1; 2 Cover 1; 2 Display 1; 2 Lighting 1; 2; 3 Switch 1;...

  • Page 8: Safety Information

    Safety information Caution: The tool is not suitable for use in an ATEX zone. The following safety rules must be observed to ensure adequate protection against electric shock, injures or fire hazards : • Never overload the blind rivet nut setting tool; work within the specified working capacity. •...

  • Page 9: Technical Data

    Technical data Weight: 2.2 kg Max. setting stroke: 10 mm Drive unit: Brushless direct current motor Traction power: 15 kN for FB Pro 20 kN for FB Pro GE Noise emission: 76,5 dB (A), Measurement uncertainty K = 3 dB Vibrations: <...

  • Page 10: Setting The Threaded Mandrel Length „X

    Setting the threaded mandrel length „X“ • Loosen lock nut 3 • Set the threaded mandrel length „X“ to the blind rivet nut length by turning the nosepiece (Fig. 4). • Fully utilise the thread depth of closed blind rivet nuts (Fig. 4). •...

  • Page 11: Saving And Loading The Setting Force

    3. Caution: Because the setting characteristics can vary widely across different types of nut from various suppliers, test riveting should be carried out after defining the setting-force value. • Screwing in the blind rivet nuts to be set (see Section 4.1). Insert the blind rivet nuts into the material being riveted using the riveting tool.

  • Page 12: Functional Principle

    Functional principle Screwing on a blind rivet nut • Ensuring it is straight, set the blind rivet nut against the threaded mandrel 1. • It is advisable to screw in the blind rivet nuts manually by around a ½ turn to make it easier to insert through the threaded mandrel 1.

  • Page 13: Setting A Blind Rivet Nut

    Setting a blind rivet nut • Insert the correctly fitted nut as far as it will go into the hole of the workpiece using the riveting tool. • Start the setting sequence by pressing switch 9. • Caution: Hold down switch 9 until the setting sequence is stopped and the screw-off sequence is started automatically.

  • Page 14: Lighting

    Maintenance of the blind rivet setting tool is limited to the replacement of worn threaded mandrels and nosepieces as and when necessary (for information on replacing the threaded mandrels, see Section 3.1). Regular maintenance will extend the service life of your high-quality GESIPA tools ®...

  • Page 15: Charger And Battery

    Never use the charger in a humid or wet environment or close to inflammable substances or gases. Risk of explosion! • Take the charger out of its packaging before use. Insert the GESIPA battery in the right ® way into the charger.

  • Page 16: Battery

    ® -5°C and +55°C! • Take the charger out of its packaging and connect to the mains. • Gently insert the GESIPA battery in the right way into the charger. • The charging operation start automatically. Function lights Signal Meaning...

  • Page 17: Environmental Protection

    Environmental protection If batteries need to be replaced, please observe the following: • Take used GESIPA batteries back to your agent or to GESIPA for recycling. ® ® • Never throw discarded batteries into the waste, into fire or into water!

  • Page 18: Warranty

    Warranty The applicable terms and conditions of guarantee shall apply and can be viewed under follo- wing link: www.gesipa.com/agb Declaration of conformity We hereby declare that the design and construction of the tool named below, as well as the version that we have put on the market, complies with applicable fundamental health and safe- ty requirements stipulated in EU directives.
  • Page 19 Το ειδικό σας κατάστημα Ihr Fachhändler Deres forhandler Az Ön szaküzlete Your dealer Din återförsäljare Dystrybutor Cachet du revendeur Deres forhandler 经销商 Vendedor autorizado Jälleenmyyjä Ваш дилер Rivenditore autorizzato O vosso distribuidor Váš prodejce Uw vakhandelaar...
