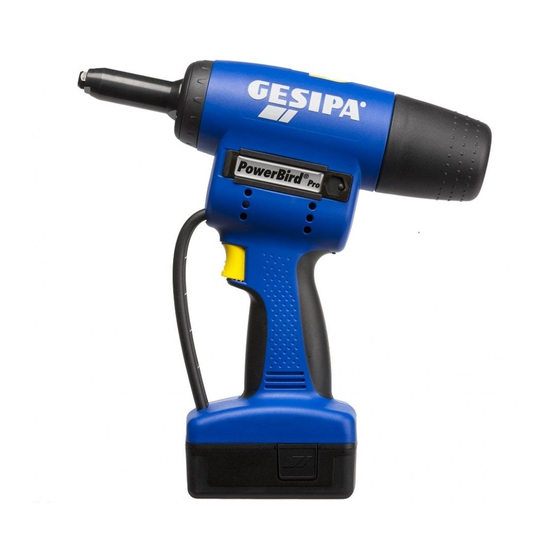

- Page 1 Elektro mechanisch Elektro-mechanicky blindklinkpistool Bedienings- en onderhouds Návod k obsluze s listinou náhradnich dilu handleiding met onderdelenlijst GESIPA Blindniettechnik GmbH T +49 (0) 6105 962 0 Nordendstraße 13-39 F +49 (0) 6105 962 287 64546 Mörfelden-Walldorf info@gesipa.com Germany www.gesipa.com...
- Page 2 Zum Lesen der Bedienungsanleitung Seite 7-16 bitte die erste Umschlagseite herausklappen. When reading these instructions, Page 17-26 Mode d‘emploi: Page 27-36 déplier la première page de couverture. Para leer las instrucciones de uso, Página 37-46 abrir la primera página de la cubierta. Per leggere le istruzioni d’uso Pagina 47-56...
- Page 4 Ersatzteile Reservedele Spare Parts Reservdelsar Alkatrészek Pièces détachées Reservedeler Piezas de represto Varaosaluettelo Lista dei pezzi di ricambio Peças sobressalentes Onderdelen Náhradní díly...
- Page 5 143 4975 17/32 144 5989 143 4977 17/36 143 5408 143 4999 17/40 146 3584 143 4860 17/45 143 5441 143 6003 144 5773 144 6012 144 5987 146 5392 144 5772 143 5568 143 5401 143 5384 143 5416 143 5448 143 5403 143 5412...
-
Page 6: Table Of Contents
Table of Contents Blind rivet setting tool ................18 1.1 Work capacity ..................18 1.2 Equipment/accessories ..............18 1.3 Technical data .................18 1.4 Nosepiece table................19 1.5 Safety instructions ................20 1.6 Starting procedure ................20 1.7 Mode of operation ................21 1.8 Lighting ....................22 1.9 Maintenance ..................22 Charger and battery ................23 2.1 Technical data .................23 2.1.1 Battery charger ...............23... -
Page 7: Blind Rivet Setting Tool
Blind rivet setting tool Work capacity Blind rivets starting from Ø2.4 mm Alu to Ø6.4 mm in all materials; blind rivets Ø8 mm Alu. BULB-TITE blind rivets up to a Ø of 7.7 mm for all materials. MEGA GRIP blind rivets up to ®... -
Page 8: Nosepiece Table
Nosepiece table Rivet Ø (mm) Rivet material Nosepiece Part no. Jaw pusher Part no. 17/18* 143 4976 -Alu; ® 17/18* 143 4976 ® Alu, steel, 3 and 3.2 17/24* 143 4955 stainless steel 17/24* 143 4955 143 5448 Steel 17/27* 143 4973 Stainless steel 17/29*... -
Page 9: Safety Instructions
Safety instructions Caution: The following safety rules must be observed for adequate protection against electric • The blind riveting tool should be used exclusively to set blind rivets! • Do not overload the tool; work within the prescribed work capacity. •... -
Page 10: Mode Of Operation
Mode of operation The blind riveting tool features optimised operating speed. After inserting the blind rivet, the blind riveting tool can be operated in two different modes: a. Pressing and holding the switch: Press and hold the switch to start riveting. The pulling process stops automatically when the rivet reaches the rear end position. -
Page 11: Lighting
Re-assemble in reverse order ensuring that all parts are tightened! We recommend that you secure the screw connection using a thread adhesive (such as Loctite 222 or Loctite 243). Regular maintenance will extend the service life of your high-quality GESIPA tools ®... -
Page 12: Charger And Battery
For repairs, use only genuine plugs and cords and genuine spare parts. • or gases. Risk of explosion! • Take the charger out of its packaging before use. Insert the GESIPA battery in the right ® way into the charger. -
Page 13: Battery
® -5°C and +55°C! • Take the charger out of its packaging and connect to the mains. • Gently insert the GESIPA ® battery in the right way into the charger. • The charging operation starts automatically. 2.3.1 Function lights... -
Page 14: Environmental Protection
Battery capacity max. 20%, charge soon Environmental protection If batteries need to be replaced, please observe the following: • Take used GESIPA batteries back to your agent or to GESIPA for recycling. ® ® • Never throw discarded batteries into the waste, into fire or into water! -
Page 15: Warranty
Warranty The applicable terms and conditions of guarantee shall apply and can be viewed under follow- ing link: www.gesipa.com/agb Declaration of conformity We hereby declare that the design and construction of the tool named below, as well as the version that we have put on the market, complies with applicable fundamental health and safe- shall render this declaration void. - Page 16 Ihr Fachhändler Deres forhandler Az Ön szaküzlete Your dealer Leverantör Wasz dystrybutor Cachet de revendeur Deres forhandler Proveedor Rivenditore autorizzato O vosso distribuidor Uw vakhandelaar Vás obchodník...
