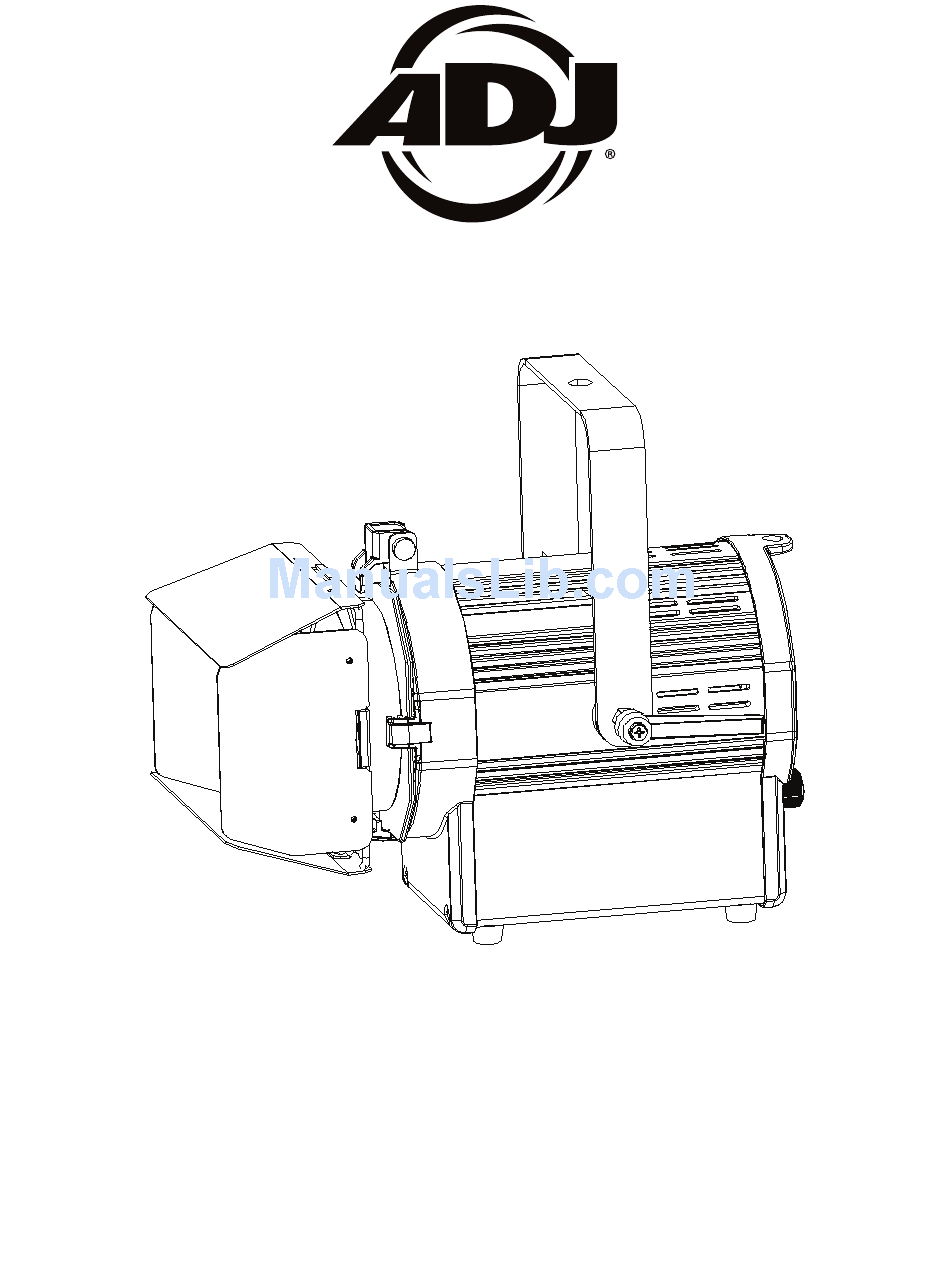

- Page 1 ENCORE FR50Z User Instructions 10/17...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
Table of Contents Introduction Features Warranty Registration Installation Safety Precautions DMX Set Up System Menu Operating Instructions Master-Slave Configuration DMX Channel Modes Dimmer Curve Chart Dimensional Drawing Warranty Technical Specifications ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 2... -
Page 4: Introduction
Introduction: The ADJ Encore FR50z is a DMX intelligent, high powered LED fresnel fixture. This fixture can be used in a stand alone set up or connected in a Master/Slave set up. The Encore FR50z has two operating modes: dimmer control and DMX controlled. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 5: Features
Encore FR50z Warranty Registration The Encore FR50z carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Safety Precautions
C. The fixture has been exposed to rain or water. D. The fixture does not appear to operate normally or exhibits a marked change in performance. E. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 5... - Page 7 6. Mode Button 7. USB Port 8. Enter Button 9. LCD Menu Control Display 10. Down Button 11. Up Button 12. Barn Door Secure Lock 13. Gel Frame ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 6...
-
Page 8: Dmx Set Up
Encore FR50z DMX Set Up Power Supply: The ADJ Encore FR50z contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. - Page 9 Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 8...
-
Page 10: System Menu
Te mpErr Error Information Mode l Inf Encore FR50Z Model Identification Current Software Version S oftwa re V1.03 Dimme r=XXX Manual Control Mode Ma nCtrl S trobe =XXX ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 9... -
Page 11: Operating Instructions
DMX controller. DMX Channel Mode: The Encore FR50z has 4 DMX channel modes. This submenu will allow you to choose the DMX channel mode you like the unit to operate under. 1. To select your desired DMX channel mode press the MODE button until “UserMode” is displayed. - Page 12 Software Update (USB Data) - This submenu is used for any future software updates. Check www.adj.com and this units webpage for any software updates. Download the software update to a flash stick and plug the flash stick into the Flash Drive slot located on the side of the unit.
- Page 13 4. Press the UP or DOWN buttons to switch “ManCtrl Strobe” and press ENTER. Follow the values listed under the DMX STROBE channel. These values will match with the values in Strobe control. ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 12...
-
Page 14: Master-Slave Configuration
7. To fully exit “Slave” mode, you will need to follow steps 3 and 4 and set the display to “ADDR” and press ENTER. Encore FR50z Zoom Adjustment Knob Zoom Adjustment Knob: Rotate this know counter-clockwise for a wider beam. Rotate this knob clockwise for narrower beam. ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 13... -
Page 15: Dmx Channel Modes
Dim Mode 0-20 S ta nda rd 21-40 S ta ge 41-60 61-80 Archite ctura l 81-100 The a tre 101-255 De fa ult to Unit S e tting ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 14... -
Page 16: Dimmer Curve Chart
The maximum that can be connected is 20 fixtures @ 120V and 40 fixtures @ 240V. After the maximum connected fixtures you will need to use a new power outlet. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE ENCORE FR50Z AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! - Page 17 3 Barn Door Grooves Lock Open 4. Complete 3. Lock Shut Down Barn Door Slides into the 3 Grooves Gel Frame Two on the side, one on the bottom Enlarged View ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 16...
-
Page 18: Dimensional Drawing
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 17... -
Page 19: Warranty
ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. -
Page 20: Technical Specifications
Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 19... - Page 21 ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@americandj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99...
